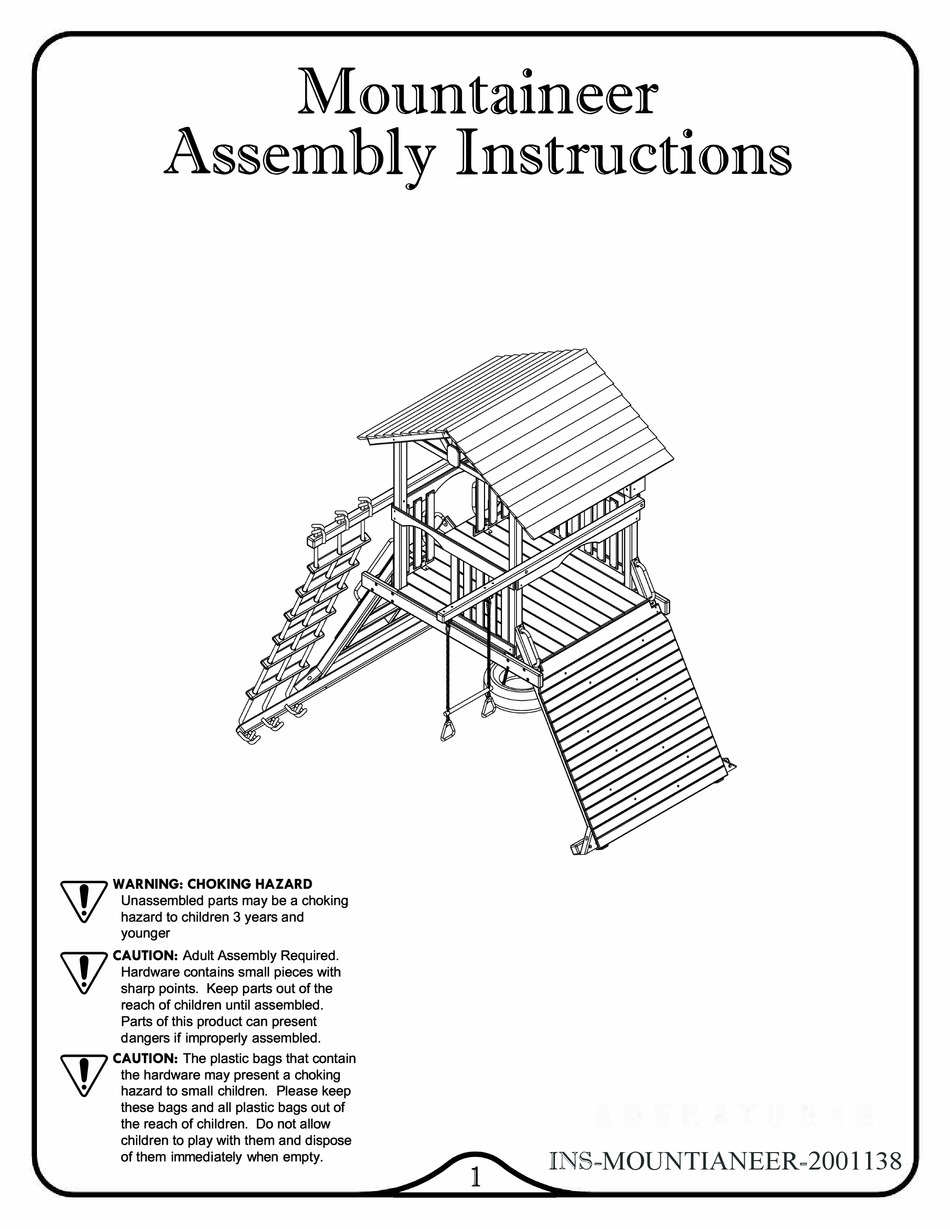

Assembly Instruction s

WARNING: CHOKING HAZARD

Unassembled parts may be a choking

hazard to children 3 years and

younger

CAUTION: Adult Assembly Required.

Hardware contains small pieces with

sharp points. Keep parts out of the

reach of children until assembled.

Parts of this product can present

dangers if improperly assembled.

CAUTION: The plastic bags that contain

the hardware may present a choking

hazard to small children. Please keep

these bags and all plastic bags out of

the reach of children. Do not allow

children to play with them and dispose

of them immediately when empty.

Mountaineer

INS= MOUNTIANEER=2001138

Need help?

Do you have a question about the Mountaineer and is the answer not in the manual?

Page 1 Mountaineer Assembly Instruction s WARNING: CHOKING HAZARD Unassembled parts may be a choking hazard to children 3 years and younger CAUTION: Adult Assembly Required. Hardware contains small pieces with sharp points. Keep parts out of the reach of children until assembled.
Page 28 Single Beam Option INS-EXPLSB-09...
Page 29: Parts Identification
Parts Identification Single Beam 2 POSITION TOP BEAM 3 POSITION TOP BEAM BEAM -4X6X133" STRIP -2 3/4"X11 0" TOP PLATE 3 POS 4 POSITION TOP BEAM BEAM -4X6X169" STRIP -2 3/4"X132" TOP PLATE 4 POS...
Page 34 Single Beam Phase 4 Step 1: Gather assembly from phase 3 & hardware bag. Step 2: Slide top beam into clamp on fort and attach with 5/16"x6" carriage bolts as shown in fig. 1 below. Step 3: Adjust the single beam legs to make sure the top beam is level. Legs may be taken in or out to adjust on uneven ground.
Page 35 Single Beam REBAR STAKES Phase 5 Drive stake into ground at an angle. Attach with lag screws. 1 1 /2" Lag Screw **NOTE** Attach stakes to 4x6 single beam legs. Stakes must be located as shown. Stake Stake {TOP VIEW) Failure to use stakes can void warranty and cause injury.
