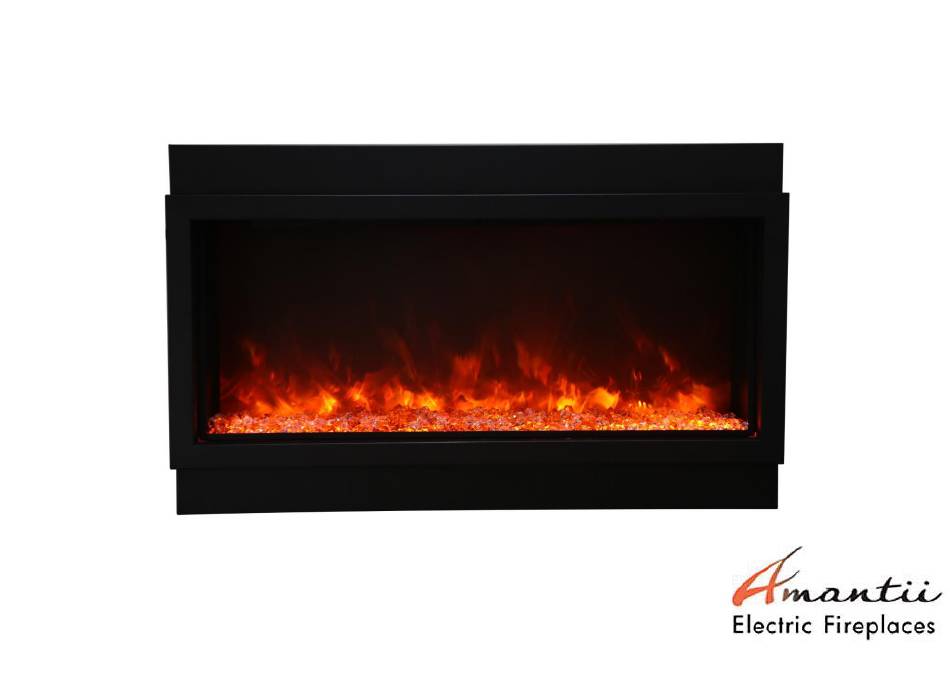

- Page 1 Fix your Fireplace BI-DEEP-XT...
- Page 2 Content • How to replace LED light • How to replace flicker motor • How to replace heating element • How to replace the PCB board • How to replace the signal receiver • How to replace the top light...
- Page 3 Replace LED light Step 1 Replace ember bed LED light Remove the trim...
- Page 4 Step 2 Unscrew the screw Unscrew the screw in the middle and then to get out the front panel.
- Page 5 Step 3 Use the metal piece you just removed from the fireplace to hock and pull out the front glass panel. Front glass...
- Page 6 Step 4 Unscrew one screw on both sides. Zoomed view...
- Page 7 Step 5 Use the metal piece just took off from STEP4 to hook and pull out the side inner black glass panels.
- Page 8 Step 6 Unscrew 2 screws on each side to take off the side inner bars. After the side inner metal panels are removed, the ember bed glass panel can be removed as well.
- Page 9 Step 7 After the ember bed glass panel is removed, now you can replace the LED light for ember bed effect.(Replace flame light see STEP7)
- Page 10 Step 8 Unscrew 3 screws and unplug to take off the top mood light.
- Page 11 Step 9 Unscrew 5 screws to remove the top fending bar for the flame effect glass panel...
- Page 12 Step 10 Unscrew 4 screws to take off the flame effect glass panel.
- Page 13 Step 11 Now you can replace flame Effect LED light bars.
- Page 14 Replace the flicker motor Replace flicker motor for ember bed effect Please follow Step 1 to 10 in replacing LED light. Step 1 Unscrew the screw to disconnect the flicker rod from the motor...
- Page 15 Step 2 Unscrew 2 screws and unplug to take off the motor.
- Page 16 Replace flicker motor for flame effect The flicker motor for flame effect is behind the visual glass panel. Step 3 Unscrew the screw and then disconnect the flicker rod from the motor...
- Page 17 Step 4 Unscrew 2 screws, unplug and now you can replace flicker motor for flame effect.
- Page 18 Replace the heating element Please follow Step 1 to 10 in replacing LED light, you come to here The heating element locates here...
- Page 19 Step 1 Unscrew the screws to take off the holding metal bar for flame effect glass panel.
- Page 20 Step 2 Unscrew 10 screws to remove the heating set from the unit.
- Page 21 Step 3 After the screws are removed, you can pull out the heating set from the unit.
- Page 22 Step 4 Unplug and you can replace the heater.
- Page 23 Step 5 Unplug to replace the heating element, please note to keep the parts...
- Page 24 Replace PCB board Please follow Step 1 to 4 in replacing LED light, you come to here The PCB board locates here...
- Page 25 Step 1 Unscrew 2 screws on left side to take off the side inner panel.
- Page 26 Step 2 Unscrew 4 screws to pull out the PCB board set...
- Page 27 Step 3 Turn around the PCB board set and unscrew the 5 screws to take off the PCB board from the set...
- Page 28 Replace signal receiver Please follow Step 1 to 10 in replacing LED light, you come to here The signal receiver locates here...
- Page 29 Step 1 Unscrew 2 screws to disconnect the signal receiver from the unit.
- Page 30 Step 2 Please follow Step 1 to 3 in replacing PCB board, you come to here...
- Page 31 Step 3 Please follow Step 1 to 3 in replacing PCB board, you come to here...
- Page 32 Step 4 Unplug to take off signal receiver from unit.
- Page 33 Step 5 Replace a new signal receiver. You may make the full use of the slot left by the removed heating set to help the wiring of the signal receiver goes through the upper chamber to arrive at the PCB board...
- Page 34 Replace top light Step 1 Remove the trim...
- Page 35 Step 2 Unscrew the screw Unscrew the screw in the middle and then to get out the front panel.
- Page 36 Step 3 Use the metal piece you just removed from the fireplace to hock and pull out the front glass panel. Front glass...
- Page 37 Step 4 Unscrew 3 screws and unplug to take off the top mood light.
