- Page 1 Firmware Version 2.21+,3.21+ rev. 9/9/09...
-
Page 2: Table Of Contents
Table of Contents 1.0 8000 Series Multi-Sport Console ....................3 1.1 Console Backplate ................................ 3 1.2 Console LCD ..................................4 1.3 Console Keypad ................................5 2.0 Scoreboard ID and Scoreboard Selection (Radio) ................. 6 2.1 Selecting Scoreboards ............................... 6 2.2 Additional Radio Information / Changing Scoreboard ID ................7 2.3 Advanced ID Changing Scenarios .......................... -
Page 3: 8000 Series Multi-Sport Console
The 8000 Console Backplate. Adapter LED Orange = Adapter is good. Red = Adapter supplies enough power to run, but not enough to charge the battery. Radio Controlled Units Only Radio Antenna Radio Antenna screws into the backplate above the Timer Pendant Switch. For best results, aim antenna straight up to the ceiling or sky - do not aim directly at scoreboard. -
Page 4: Console Lcd

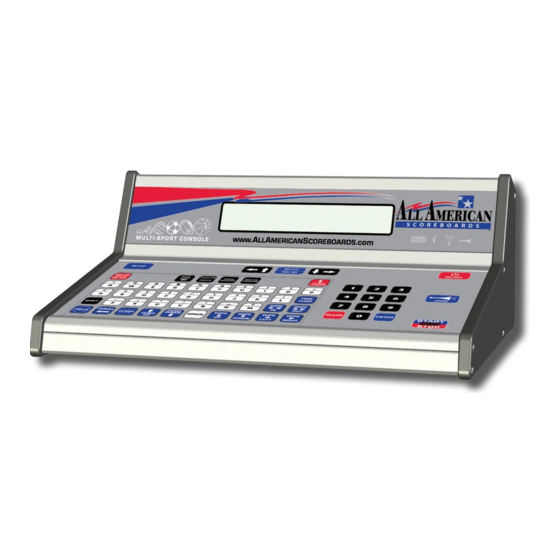

The 8000 Console. LED Windows LCD Window Displays crucial troubleshooting and Displays game information in a convenient and easy to functional information at a glance. read 2x20 character matrix. Also displays game stats and setup information. Power. Stars turn white when console is turned on. Typical Gameplay Display HOME GUEST... -
Page 5: Console Keypad
Press and hold to turn off. between Yes and No. time when clock is stopped. Slipsheet Window and Message Center Keys Our console is designed to run any 8000 Series Number Keypad. Scoreboard. Simply insert the correct slipsheet under the Used in pregame and window and tell the console what sport you are scoring gametime operations. -
Page 6: Scoreboard Id And Scoreboard Selection (Radio)
8000 scoreboard or message center you have in your facility. Each time you order a scoreboard, it will be issued an identification number. If you have multiple 8000 series scoreboards, the ID number will be an important part of your scoring system. -
Page 7: Additional Radio Information / Changing Scoreboard Id
AAS recommends changing the ID before instal- lation of a scoreboard to a circuit where multiple 8000 series scoreboards are connected. If it is not possible to turn off power to one of the scoreboards, see Advanced ID Changing Scenarios. -
Page 8: Advanced Id Changing Scenarios
Advanced ID Changing Scenarios (Radio Units Only) In most cases, IDs can be set by following the methods described in Changing the Scoreboard ID. The follow- ing text describes some methods to change an individual scoreboard ID in circumstances where multiple scoreboards are hooked up to the same circuit breaker. -
Page 9: Scoreboard Type
Scoreboard Type and Additional ID Information In previous versions of All American Scoreboards, driver boards were needed to sort through the information from the the console and direct it to the proper digits on the scoreboard. This system worked well, but each driver board required a different program chip that would interpret the same information differently. -
Page 10: Console Keypad Functions
Failure to do this will cause the default answers to be chosen that were used during the testing process at the All American Scoreboards facility. Defaults may be changed at any time by going into the setup mode when game time is stopped. - Page 11 S e t as n ew d ef ault s? Se t a s n ew defau lts? _N o _Y es 16. Press to toggle between Yes and No. To save the settings as defaults, select Yes, then Enter. Settings chosen will be saved.
-
Page 12: Racing Operations
ID will show in timer or in first position on boards without a timer. Startup Display When the scoreboard is initially turned on, All LEDs will run through a series of brightness levels and self tests. When a sport is selected, your scoreboard should reflect what the console screen displays after setup. Timer Press this key to start and stop the Timer. -
Page 13: Safety
WARnIng! OPERATIOn OF ThE UnIT WITh ThE ELECTRICAL ExPOSED IS DAngEROUS. BE SURE ALL TOOLS AnD Any OThER mATERIALS ARE REmOVED FROm ThE UnIT, AnD ALL ACCESS COVERS ARE REPLACED AnD CLOSED BEFORE POWER IS TURnED On. nOTE: For Advanced Trouble Shooting, Service manuals and Replacement Part Information go to www.allamericanscoreboards. -
Page 14: Warranty
4.0 Warranty Five year Limited Warranty non-compliance with procedures of Installation, Safety, Operation and/or maintenance practices defined in this manual may result in a Warranty issue. This warranty extends to and is enforceable by only the original consumer purchaser and only for the period (during the applicable term) which the product remains in the possession of the original consumer purchaser. -
Page 15: Technical Support
© Copyright All American Scoreboards 2008-2009 This is the exclusive property of All American Scoreboards® a division of Everbrite® LLC. Use of or duplication of this document in any manner without the expressed written consent of All American Scoreboards® is prohibited.
