All American Scoreboards 8000 Series Operation Manual

Racing scoreboards
Hide thumbs Also See for 8000 Series:
Table of Contents

Advertisement

Quick Links

Firmware Version 6.24X and above
rev. 5/14/2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for All American Scoreboards 8000 Series

Summary of Contents for All American Scoreboards 8000 Series

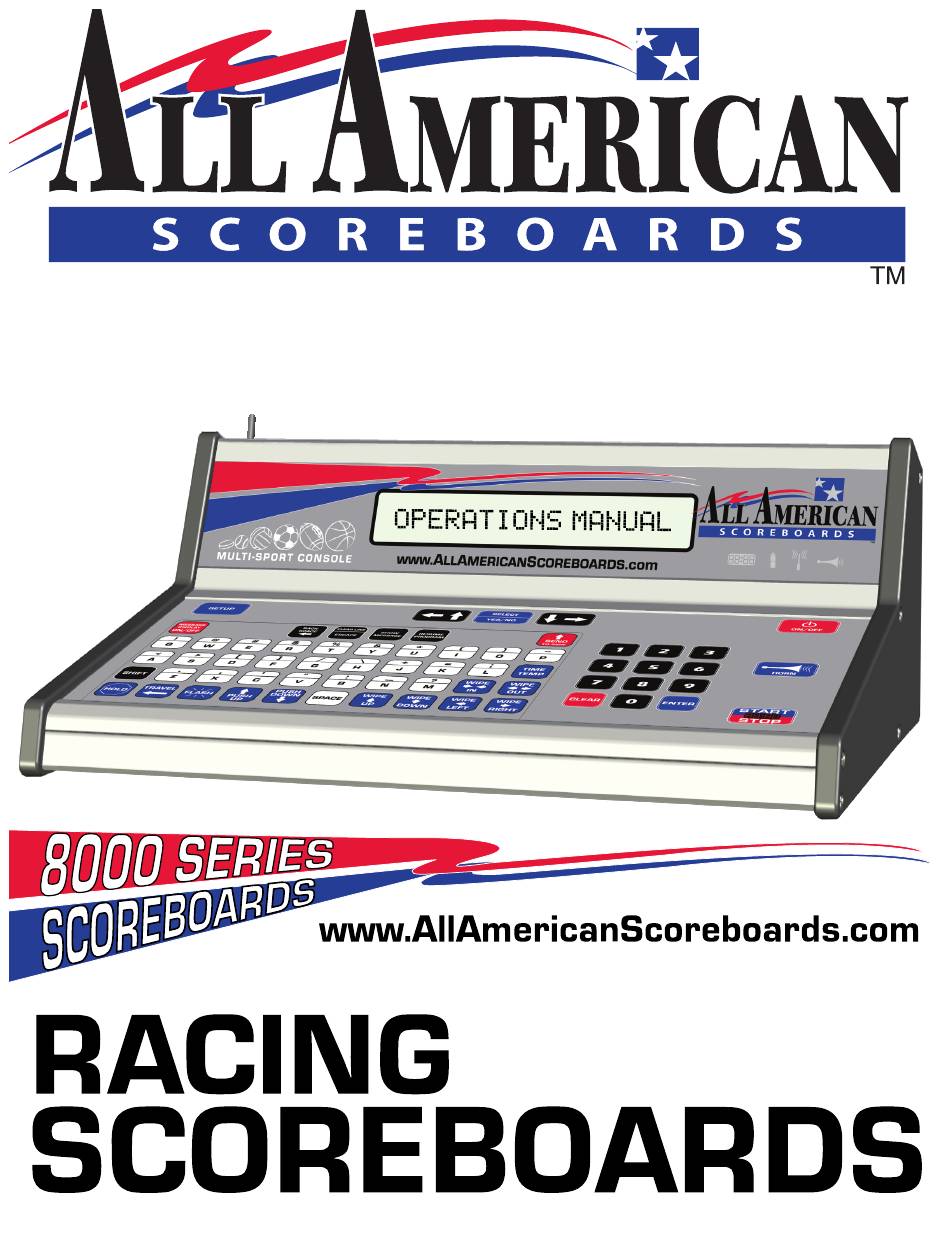

  • Page 1 Firmware Version 6.24X and above rev. 5/14/2014...

  • Page 2: Table Of Contents

    Table of Contents 1.0 8000 Series Multi-Sport Console ....................3 1.1 Console Backplate ................................ 3 1.2 Console LCD ..................................4 1.3 Console Keypad ................................5 2.0 Scoreboard ID and Scoreboard Selection (Radio) ................. 6 2.1 Selecting Scoreboards ............................... 6 2.2 Additional Radio Information / Changing Scoreboard ID ................7 3.0 Console Keypad Functions ......................

  • Page 3: 8000 Series Multi-Sport Console

    The 8000 Console Backplate. Adapter LED Orange = Adapter is good. Red = Adapter supplies enough power to run, but not enough to charge the battery. Radio Controlled Units Only Radio Antenna Radio Antenna screws into the backplate above the Timer Pendant Switch. For best results, aim antenna straight up to the ceiling or sky - do not aim directly at scoreboard.

  • Page 4: Console Lcd

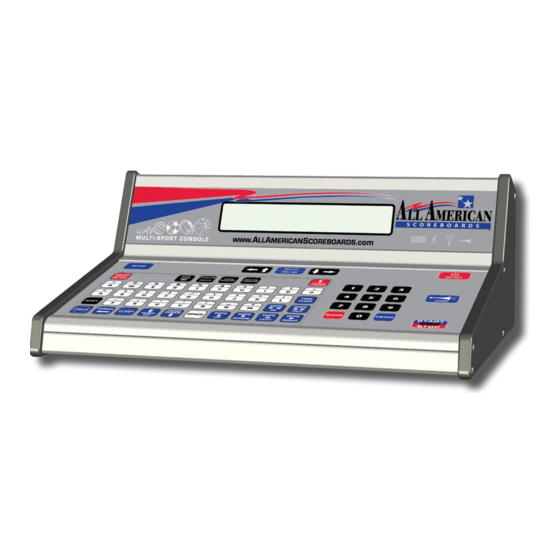

    The 8000 Console. LED Windows LCD Window Displays crucial troubleshooting and Displays game information in a convenient and easy to functional information at a glance. read 2x20 character matrix. Also displays game stats and setup information. Power. Stars turn white when console is turned on. Typical Gameplay Display HOME GUEST...

  • Page 5: Console Keypad

    Press and hold to turn off. answer between YES and NO. time when clock is stopped. Slipsheet Window and Message Center Keys Our console is designed to run any 8000 Series Number Keypad Scoreboard. Simply insert the correct slipsheet under the Used in pregame and window and tell the console what sport you are scoring gametime operations.

  • Page 6: Scoreboard Id And Scoreboard Selection (Radio)

    8000 scoreboard or message center you have in your facility. Each time you order a scoreboard, it will be issued an identification number. If you have multiple 8000 series scoreboards, the ID number will be an important part of your scoring system.

  • Page 7: Additional Radio Information / Changing Scoreboard Id

    RADIO INSTRUCTIONS Turn on the scoreboard(s) that you want to use by applying the correct AC voltage. Grab a console. It doesn’t matter which one, as long as it looks like this: NOTE: If you have multiple consoles, grab one and ignore the others (for now). Turn on the console Typical display after console is turned on.

  • Page 8: Console Keypad Functions

    Failure to do this will cause the default answers to be chosen that were used during the testing process at the All American Scoreboards facility. Defaults may be changed at any time by going into the setup mode when game time is stopped.
  • Page 9 Q u a l i fy in g La ps = 3 4. QUALIFYING LAPS Display the amount of laps used to qualify. Valid options are 1, 2 or 3 laps. T i m e of D a y = _ E n t e r to Sk i p 5.

  • Page 10: Racing Operations

    Startup Display ID will show in timer When the scoreboard is initially turned on, All LEDs will or in first position on run through a series of brightness levels and self tests. boards without a timer. When a sport is selected, your scoreboard should reflect what the console screen displays after setup.
  • Page 11 Press the EDIT key to edit the car displayed for the position. Example: Car number in Position 2 is 88. Press Note: numbers can be 1 or 2 digits and can range from 00-09 and 0-99. Car 01 is different than Car 1. Press the DELETE CAR key to delete the car number (car is totaled, etc).

  • Page 12: Safety

    WARNING! OPERATION OF THE UNIT WITH THE ELECTRICAL EXPOSED IS DANGEROUS. BE SURE ALL TOOLS AND ANY OTHER MATERIALS ARE REMOVED FROM THE UNIT, AND ALL ACCESS COVERS ARE REPLACED AND CLOSED BEFORE POWER IS TURNED ON. NOTE: For Advanced Trouble Shooting, Service Manuals and Replacement Part Information go to www.allamericanscoreboards.

  • Page 13: Warranty

    4.0 Warranty Five Year Limited Warranty Non-compliance with procedures of Installation, Safety, Operation and/or Maintenance practices defined in this manual may result in a Warranty issue. This warranty extends to and is enforceable by only the original consumer purchaser and only for the period (during the applicable term) which the product remains in the possession of the original consumer purchaser.

  • Page 14: Technical Support

    © Copyright All American Scoreboards 2008-2014 This is the exclusive property of All American Scoreboards® a division of Everbrite® LLC. Use of or duplication of this document in any manner without the expressed written consent of All American Scoreboards® is prohibited.
