Installation; Harness - Lippert Components OneControl Tank Monitor V1 Installation Manual

Installation

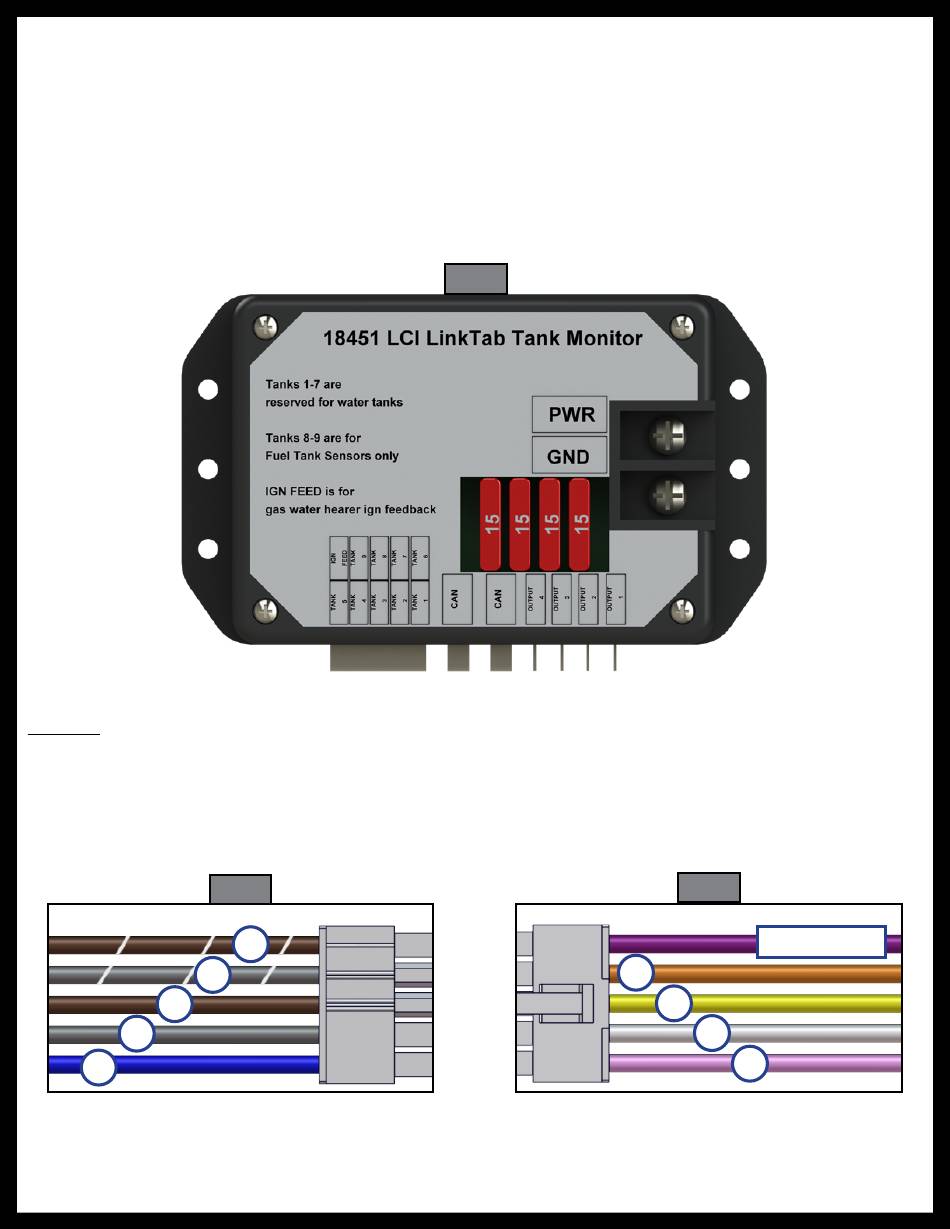

1. Mount tank monitor controller (Fig. 1) by securing to a solid surface with #8 x 1" wood screws or
equivalent.
NOTe: An ideal location can be chosen by the OEM.
2. Connect to DC 12 V power and ground.
3.
Connect CANBUS Data wires (in proper sequence with MyRV system components).
4.
Connect tank wire harness.
5. Connect the first tank's sensor resistor pack signal wire to proper (tank) input on harness (Fig. 8).
6.
Repeat steps for each tank.

Harness

NOTe: Tanks 1-7 are reserved for water tanks sensors. Tanks 8-9 are for fuel tank sensors only. Ignition FEED
is for gas water heater ignition feedback (Fig. 2) and (Fig. 3).
NOTe: All harness wires are 18 g. minimum.
3
2
1
Rev: 06.12.19
Fig. 2
5
4
Fig. 1
Page 3
Fig. 3
Ignition Feed
9
8
7
6
CCD-0002310
