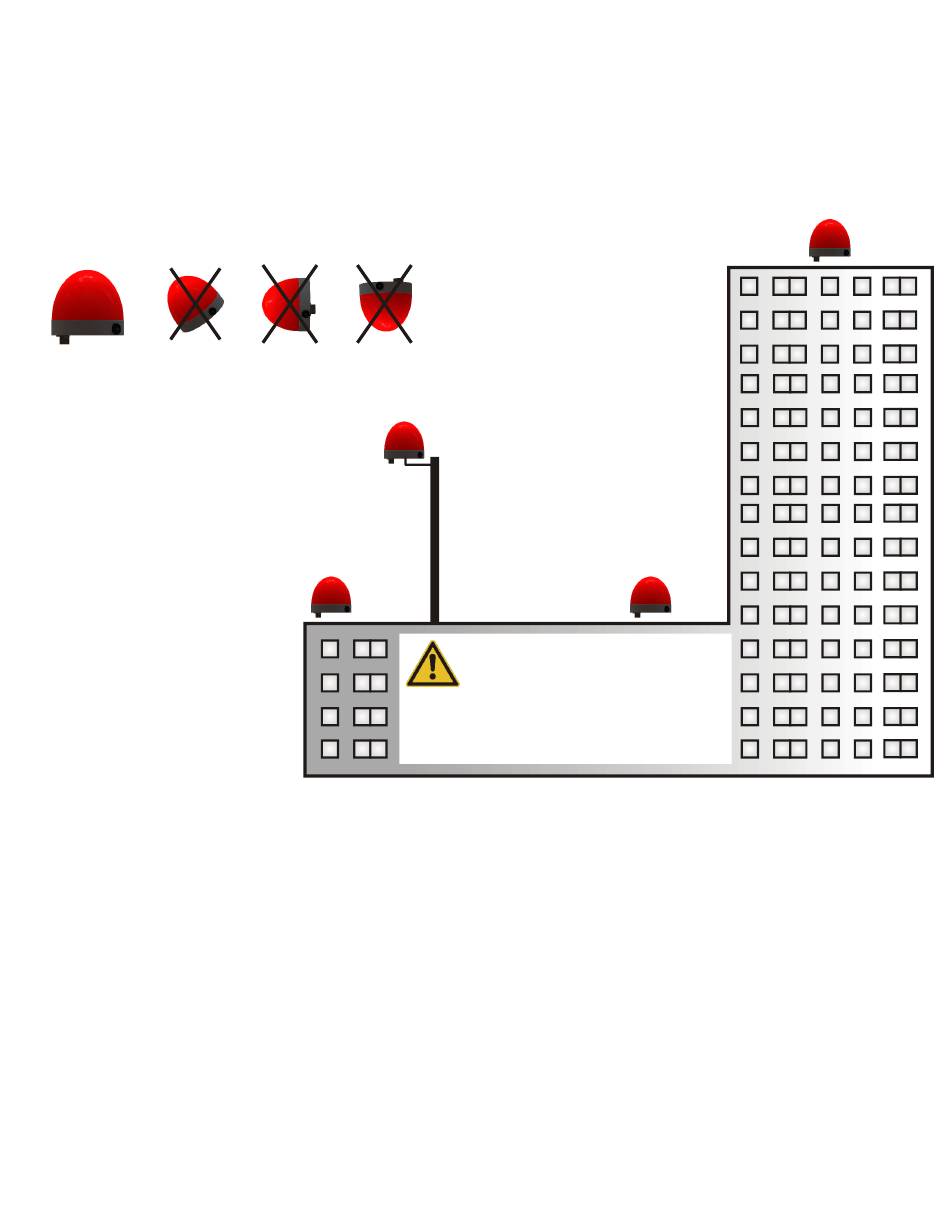

Always mount OTMC 100 in an upright position with the protective cap to the top, as shown in the
figure below. The RJ45 connector on the base plate of OTMC 100 must point vertically downwards.
Do not mount OTMC 100 inclined to any side or with the base plate to the top!
Mount
OTMC 100
in an upright position
with the protective cap to the top only!
Possible if no alternative position is
available. Not recommended!
OMICRON
Possible position.
2
3
Always observe all relevant
lightning protection regulations!
Provide a suitable surge
protection device to the Ethernet
cable leading into the building!
Use shielded Ethernet cable only!
BEST position.
Recommended!
BAD position.
Will not work properly!
4
