OTMC 100 Quick Start Guide
2

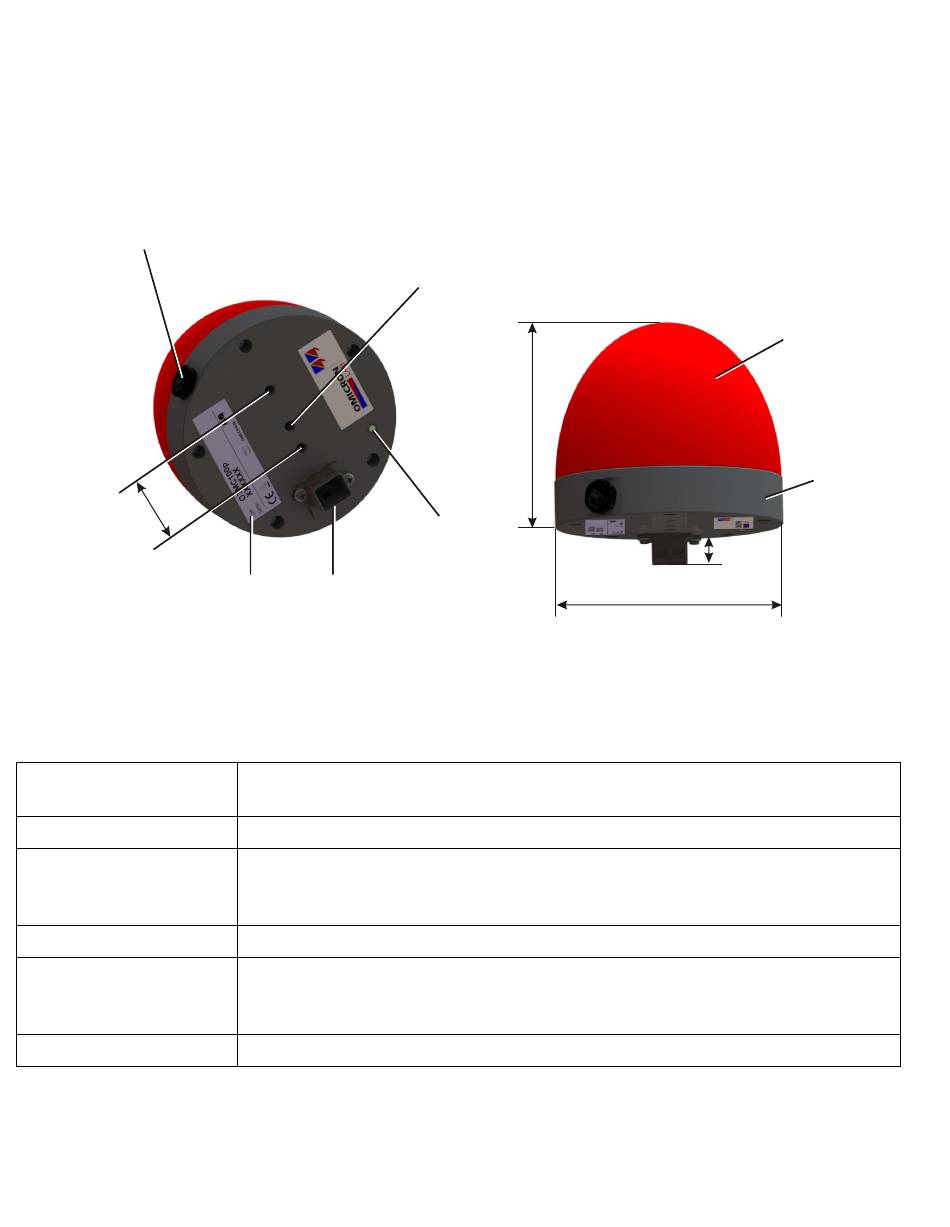

Device overview

Membrane vent covering the pushbutton
(tightening torque: 0.6 - 0.8 Nm)
2 threaded holes
M6 x 9 mm
for clamping block
36 mm
Type plate with
product name
and serial number
OTMC 100 does not provide an ON/OFF switch. The device automatically powers up after supply
voltage is provided via Ethernet (PoE).
The LED indicates the device status:
LED continuously off
LED lights red
LED flashes red
LED lights orange
LED flashes green
LED lights green
6
Threaded hole
1/4" BSW x 6.5 mm
for temporary mounting
on a stand
Waterproof RJ45 connector
acc. to IEC 61076-3-106,
variant 4
OTMC 100 is not supplied with power via the RJ45 Ethernet connector
(→ see Troubleshooting
Boot process during power-up or device reboot is in progress.
Software update is in progress.
ATTENTION: Do not disconnect OTMC 100 from its PoE source (Ethernet
network) during a software update.
Intermediate state when initiating a factory reset.
OTMC 100 is in the recovery mode, waiting for new software. In the
recovery mode, the device provides only a rudimentary web interface just
allowing for the upload of a software image.
OTMC 100 is ready for operation.
106.2 mm
LED
on page 18).
Weight: < 500 g
Degree of protection:
IP67 (for outdoor use) if the waterproof
RJ45 connector is inserted properly
Protective cap
14.5 mm
Ø 115.5 mm
Base plate
OMICRON
