- Page 1 SCLA26 Chassis CSE-LA26E1C4-R609LP USER’S MANUAL Revision 1.0...
- Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
- Page 3 Installation and maintenance should be performed by experienced technicians only. Please refer to the SCLA26 chassis specifications page on our website for updates on supported memory, processors and operating systems (http://www.supermicro.com).
-
Page 4: Table Of Contents
Supermicro SCLA26 Chassis User's Manual Contents Chapter 1 Introduction 1.1 Overview ..........................7 1.2 Unpacking the System ......................7 1.3 Chassis Features .........................8 Control Panel ........................8 Front Features ........................9 Rear Features ........................9 Chapter 2 Rack Installation 2.1 Preparing for Setup ......................10 Choosing a Setup Location ....................10 Rack Precautions ......................10... - Page 5 Preface 3.5" Drive ........................23 2.5" Drive ........................23 Installing Expansion Cards....................24 System Fans ........................25 Power Supply ........................26 Appendix A BPN-SAS3-826EL1-N4 Backplane A.1 Microsoft Windows OS Installation ...................27 A.2 General Safety Guidelines ....................28 A.3 Version Information ......................28 A.4 Rear Connector Locations ....................29 A.5 Rear Connector and Pin Definitions .................30 A.6 Rear Jumper Locations and Pin Definitions ..............31 Explanation of Jumpers.....................31...
- Page 6 Supermicro SCLA26 Chassis User's Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V.
-
Page 7: Chapter 1 Introduction

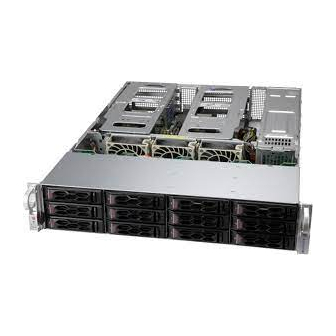

Chapter 1 Introduction 1.1 Overview The Supermicro SCLA26, is an all-purpose chassis for many different applications. It is an excellent chassis platform for data centers, government labs, or business enterprises, for cloud and virtualization, simulation, automation, hosting and storage. In addition to the chassis, several included parts are listed below. -
Page 8: Chassis Features
Supermicro SCLA26 Chassis User's Manual 1.3 Chassis Features Control Panel The chassis front features a control panel to monitor node function and control power. Figure 1-1. Control Panel Control Panel Features Item Features Description The main power switch applies or removes primary power from the power supply Power button to the server but maintains standby power. -
Page 9: Front Features
Chapter 1: Introduction Front Features The front of the chassis includes 12 hot-swap drive bays and the chassis control panel. Figure 1-2. Chassis Front View Front Chassis Features Item Feature Description Control Panel Described in previous section Drives 12 3.5"/2.5" SAS3/SATA hot-swap storage drive bays Rear Features The illustration below shows the features on the rear of the chassis. -
Page 10: Chapter 2 Rack Installation
Supermicro SCLA26 Chassis User's Manual Chapter 2 Rack Installation This chapter provides advice and instructions for mounting your system in a rack. 2.1 Preparing for Setup The box in which the system was shipped should include the hardware needed to install it into the rack. -
Page 11: Precautions
Chapter 2 Rack Installation Precautions • Review the electrical and general safety precautions in the appendix, "Standardized Safety Warnings" in this manual. • Determine the placement of each component in the rack before you install the rails. • Install the heaviest server components at the bottom of the rack first and then work your way up. -
Page 12: Reliable Ground
Supermicro SCLA26 Chassis User's Manual Reliable Ground A reliable ground must be maintained at all times. To ensure this, the rack itself should be grounded. Particular attention should be given to power supply connections other than the direct connections to the branch circuit (i.e. the use of power strips, etc.). -
Page 13: Installing The Rails
Chapter 2 Rack Installation 2.2 Installing the Rails This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. -
Page 14: Releasing The Inner Rail
Supermicro SCLA26 Chassis User's Manual Releasing the Inner Rail Each inner rail has a locking latch. This latch prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing. To mount the rail onto the chassis, first release the inner rail from the outer rails. -
Page 15: Installing The Inner Rails
Chapter 2 Rack Installation Installing the Inner Rails Begin the rack mounting procedure by installing the inner rails to the chassis. 1. Identify the left and right inner rails. They are labeled. 2. Place the inner rail firmly against the side of the chassis, aligning the hooks on the side of the chassis with the holes in the inner rail. -
Page 16: Installing The Outer Rails Onto The Rack
Supermicro SCLA26 Chassis User's Manual Installing the Outer Rails onto the Rack 1. Press upward on the locking tab at the rear end of the middle rail. 2. Push the middle rail back into the outer rail. 3. Hang the hooks on the front of the outer rail onto the square holes on the front of the rack. -
Page 17: Installing The Chassis Into A Rack
Chapter 2 Rack Installation 2.3 Installing the Chassis into a Rack Once rails are attached to the chassis and the rack, you can install the server. 1. Pull the middle rail out of the front of the outer rail and make sure that the ball bearing shuttle is locked at the front of the middle rail. -
Page 18: Removing The Chassis From The Rack
Supermicro SCLA26 Chassis User's Manual Removing the Chassis from the Rack Caution! It is dangerous for a single person to off-load the heavy chassis from the rack without assistance. Be sure to have sufficient assistance supporting the chassis when removing it from the rack. -
Page 19: Chapter 3 Maintenance And Component Installation
Chapter 3: Maintenance and Component Installation Chapter 3 Maintenance and Component Installation This chapter provides instructions on installing and replacing main system components. To prevent compatibility issues, only use components that match the specifications and/or part numbers given. Installation or replacement of most components require that power first be removed from the system. -
Page 20: Accessing The Chassis
Supermicro SCLA26 Chassis User's Manual 3.2 Accessing the Chassis A portion of the chassis top is removable to allow access to components. Removing the Top Cover 1. Remove the screw on each side of the chassis. 2. Depress the release buttons and slide the cover back and off. -
Page 21: Chassis Components
3.3 Chassis Components Storage Drives The SCLA26 chassis supports up to twelve 3.5"/2.5" storage drives in drive carriers to simplify their removal from the chassis. These carriers also help promote proper airflow. It also supports two optional rear 2.5" SAS3/SATA3 for more storage, available as a kit. -
Page 22: Installing Drives
Supermicro SCLA26 Chassis User's Manual Installing Drives Removing Drive Carriers from the Chassis 1. Push the release button on the drive carrier. This releases and extends the drive carrier handle. 2. Use the handle to pull the carrier out of the chassis as shown below. -
Page 23: Drive
Chapter 3: Maintenance and Component Installation Installing a 3.5" or 2.5" Hard Drive 1. Place the hard drive carrier on a flat surface. 2. Insert a 3.5" hard drive in an angle into the carrier so that the mounting holes on the right side of the drive align with the two stubs in the drive carrier. -
Page 24: Installing Expansion Cards
Supermicro SCLA26 Chassis User's Manual Installing Expansion Cards The system can accommodate seven low-profile PCIe cards. Installing an Expansion Card 1. Power down the system and remove the cover. 2. In the rear of the chassis, remove the blank PCI shield that covers the chassis slot. -
Page 25: System Fans
Chapter 3: Maintenance and Component Installation System Fans Three hot-swap fans provide cooling. They can be replaced without powering down the system. Fan speed is controlled by a system temperature setting in IPMI. If a fan fails, the remaining fans will ramp up to full speed. The system can continue to run with a failed fan. Replace any failed fan at your earliest convenience with the same type and model. -
Page 26: Power Supply
Power Supply The chassis features redundant power supplies. The power modules can be changed without powering down the system. New units can be ordered directly from Supermicro or authorized distributors. These power supplies are auto-switching capable. This feature enables them to automatically sense the input voltage and operate at a 100-120v or 180-240v. -
Page 27: Appendix A Bpn-Sas3-826El1-N4 Backplane
USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive. -
Page 28: General Safety Guidelines
The BPN-SAS3-826EL1-N4 backplane has been designed to utilize the most up-to-date technology available, providing your system with reliable, high-quality performance. This manual reflects the BPN-SAS3-826EL1-N4, the most current release available at the time of publication. Always refer to the Supermicro website at www.supermicro.com for the latest... -
Page 29: Rear Connector Locations
Appendix A: BPN-SAS3-826EL1-N4 Backplane A.4 Rear Connector Locations The following connectors are on the side of the backplane that faces the rear of the chassis. They are marked by silkscreen labels. LED27 HB-LED LED29 R183 R182 R400 DESIGNED IN USA LED25 LED26 BPN-SAS3-826EL1-N4... -
Page 30: Rear Connector And Pin Definitions
Supermicro SCLA26 Chassis User's Manual A.5 Rear Connector and Pin Definitions 1. Main Power Connectors Backplane Main Power The 4-pin connectors, designated JPW1, JPW2 and JPW3, 4-Pin Connector provide power to the backplane. See the table on the right Pin# Definition for pin definitions. -
Page 31: Rear Jumper Locations And Pin Definitions
Appendix A: BPN-SAS3-826EL1-N4 Backplane A.6 Rear Jumper Locations and Pin Definitions HB-LED LED29 R182 R400 LED27 R183 DESIGNED IN USA LED25 LED26 BPN-SAS3-826EL1-N4 I2C#0 UART REV:1.00 I2C#4 ACT-LED CPU1 CPU2 TEST JP23 CPLD SAS CODE BAR CODE U136 R399 JPW3 C486 C485 NVMe2... -
Page 32: Front Connectors And Led Indicators
Supermicro SCLA26 Chassis User's Manual A.7 Front Connectors and LED Indicators All connectors support SAS3. Connectors for SAS #9 through #12 are hybrid ports that support both SAS3 and NVMe. LED9 LED12 LED6 LED3 LED18 LED15 NVMe1 SAS#9 SAS#3 SAS#6... -
Page 33: Cascading Configurations
Appendix A: BPN-SAS3-826EL1-N4 Backplane A.8 Cascading Configurations Single Port Expanders SAS connectors SASP1 through SASP4 are bidirectional and can be treated as input or output. Single Ports BPN-SAS3-826EL1 backplanes have a single port expander that accesses all of the drives and supports cascading. Port A Primary Expander 1 To Lower Backplane in Cascaded System HB-LED... -
Page 34: Connecting Multiple Backplanes In A Single Channel Environment
Supermicro SCLA26 Chassis User's Manual Connecting Multiple Backplanes in a Single Channel Environment This section describes the cables used when cascading from a single HBA. These connections use CBL-SAST-0531 internal cables and CBL-SAST-0573 external cables. CBL-SAST-0531 (Internal Cable) LED27 HB-LED LED29 R183 R182 R400 DESIGNED IN USA... -
Page 35: Single Hba Configuration Cables
Appendix A: BPN-SAS3-826EL1-N4 Backplane Single HBA Configuration Cables Figure A-7. External Mini-SAS HD to External Mini-SAS HD Cable Cable Name: 1 Meter External Mini-SAS HD to External Mini-SAS HD Cable Part #: CBL-SAST-0573 Ports: Single Placement: External Cable Description: External cascading cable, connects ports between servers and JBODs. Figure A-8. Mini-SAS HD Internal to External Adapter Cable Name: 16-port Mini-SAS HD Internal to External Cable Adapter with LP Bracket Part #: AOM-SAS3-16I16E-LP Ports: Four wide-ports (sixteen ports total) -
Page 36: Appendix B Standardized Warning Statements For Ac Systems
Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components. Read this appendix in its entirety before installing or configuring components in the Supermicro chassis. These warnings may also be found on our website at http://www.supermicro.com/about/... - Page 37 Appendix B: Standardized Warning Statements Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut. Suchen Sie mit der am Ende jeder Warnung angegebenen Anweisungsnummer nach der jeweiligen Übersetzung in den übersetzten Sicherheitshinweisen, die zusammen mit diesem Gerät ausgeliefert wurden.
- Page 38 Supermicro SCLA26 User's Manual . ٌ ا ك ً ف حالة و ٌ يك أى تتسبب ف اصابة جسذ ة ٌ هذا الزهز ع ٌ خطز !تحذ ز قبل أى تعول عىل أي هعذات،يك عىل علن بالوخاطز ال ا ٌجوة عي الذوائز...
- Page 39 Appendix B: Standardized Warning Statements Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación. Attention Avant de brancher le système sur la source d'alimentation, consulter les directives d'installation. .יש...
- Page 40 Supermicro SCLA26 User's Manual Warnung Dieses Produkt ist darauf angewiesen, dass im Gebäude ein Kurzschluss- bzw. Überstromschutz installiert ist. Stellen Sie sicher, dass der Nennwert der Schutzvorrichtung nicht mehr als: 250 V, 20 A beträgt. ¡Advertencia! Este equipo utiliza el sistema de protección contra cortocircuitos (o sobrecorrientes) del edificio.
- Page 41 Appendix B: Standardized Warning Statements Power Disconnection Warning Warning! The system must be disconnected from all sources of power and the power cord removed from the power supply module(s) before accessing the chassis interior to install or remove system components. 電源切断の警告...
- Page 42 Supermicro SCLA26 User's Manual يجب فصم اننظاو من جميع مصادر انطاقت وإ ز انت سهك انكهرباء من وحدة امداد انطاقت قبم انىصىل إىن امنناطق انداخهيت نههيكم نتثبيج أو إ ز انت مكىناث الجهاز 경고! 시스템에 부품들을 장착하거나 제거하기 위해서는 섀시 내부에 접근하기 전에 반드시 전원...
- Page 43 Appendix B: Standardized Warning Statements Attention Il est vivement recommandé de confier l'installation, le remplacement et la maintenance de ces équipements à des personnels qualifiés et expérimentés. !אזהרה .צוות מוסמך בלבד רשאי להתקין, להחליף את הציוד או לתת שירות עבור הציוד واملدربيه...
- Page 44 Supermicro SCLA26 User's Manual Warnung Diese Einheit ist zur Installation in Bereichen mit beschränktem Zutritt vorgesehen. Der Zutritt zu derartigen Bereichen ist nur mit einem Spezialwerkzeug, Schloss und Schlüssel oder einer sonstigen Sicherheitsvorkehrung möglich. ¡Advertencia! Esta unidad ha sido diseñada para instalación en áreas de acceso restringido. Sólo puede obtenerse acceso a una de estas áreas mediante la utilización de una herramienta especial,...
- Page 45 Appendix B: Standardized Warning Statements Battery Handling Warning! There is the danger of explosion if the battery is replaced incorrectly. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions 電池の取り扱い...
- Page 46 Supermicro SCLA26 User's Manual هناك خطر من انفجار يف حالة اسحبذال البطارية بطريقة غري صحيحة فعليل اسحبذال البطارية فقط بنفس النىع أو ما يعادلها مام أوصث به الرشمة املصنعة جخلص من البطاريات املسحعملة وفقا لحعليامت الرشمة الصانعة 경고! 배터리가 올바르게 교체되지 않으면 폭발의 위험이 있습니다. 기존 배터리와 동일하거나 제...
- Page 47 Appendix B: Standardized Warning Statements ¡Advertencia! Puede que esta unidad tenga más de una conexión para fuentes de alimentación. Para cortar por completo el suministro de energía, deben desconectarse todas las conexiones. Attention Cette unité peut avoir plus d'une connexion d'alimentation. Pour supprimer toute tension et tout courant électrique de l'unité, toutes les connexions d'alimentation doivent être débranchées.
- Page 48 Supermicro SCLA26 User's Manual Backplane Voltage Warning! Hazardous voltage or energy is present on the backplane when the system is operating. Use caution when servicing. バックプレーンの電圧 システムの稼働中は危険な電圧または電力が、 バックプレーン上にかかっています。 修理する際には注意く ださい。 警告 当系统正在进行时，背板上有很危险的电压或能量，进行维修时务必小心。 警告 當系統正在進行時，背板上有危險的電壓或能量，進行維修時務必小心。 Warnung Wenn das System in Betrieb ist, treten auf der Rückwandplatine gefährliche Spannungen oder Energien auf.
- Page 49 Appendix B: Standardized Warning Statements هناك خطز مه التيار الكهزبايئ أوالطاقة املىجىدة عىل اللىحة عندما يكىن النظام يعمل كه حذ ر ا عند خدمة هذا الجهاس 경고! 시스템이 동작 중일 때 후면판 (Backplane)에는 위험한 전압이나 에너지가 발생 합니다. 서비스 작업 시 주의하십시오. Waarschuwing Een gevaarlijke spanning of energie is aanwezig op de backplane wanneer het systeem in gebruik is.
- Page 50 Supermicro SCLA26 User's Manual תיאום חוקי החשמל הארצי !אזהרה .התקנת הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים تركيب املعدات الكهربائية يجب أن ميتثل للقىاويه املحلية والىطىية املتعلقة بالكهرباء 경고! 현 지역 및 국가의 전기 규정에 따라 장비를 설치해야 합니다.
- Page 51 Appendix B: Standardized Warning Statements Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. סילוק המוצר !אזהרה .סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות וחוקי המדינה التخلص...
- Page 52 Supermicro SCLA26 User's Manual Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt.
- Page 53 Verbindungskabeln, Stromkabeln und/oder Adapater, die Ihre örtlichen Sicherheitsstandards einhalten. Der Gebrauch von anderen Kabeln und Adapter können Fehlfunktionen oder Feuer verursachen. Die Richtlinien untersagen das Nutzen von UL oder CAS zertifizierten Kabeln (mit UL/CSA gekennzeichnet), an Geräten oder Produkten die nicht mit Supermicro gekennzeichnet sind.
- Page 54 .قيرح وأ لطع يف ببستي دق ىرخأ تالوحمو تالباك يأ مادختسا .ميلسلا سباقلاو لصوملا مجح لبق نم ةدمتعملا تالباكلا مادختسا تادعملاو ةيئابرهكلا ةزهجألل ةمالسلا نوناق رظحيUL وأCSA ( ةمالع لمحت يتلاوUL/CSA) لبق نم ةددحملاو ةينعملا تاجتنملا ريغ ىرخأ تادعم يأ عمSupermicro.
- Page 55 사항을 준수하여 제공되거나 지정된 연결 혹은 구매 케이블, 전원 케이블 및 AC 어댑터를 사용하십시오. 다른 케이블이나 어댑터를 사용하면 오작동이나 화재가 발생할 수 있습니다. 전기 용품 안전법은 UL 또는 CSA 인증 케이블 (코드에 UL / CSA가 표시된 케이블)을 Supermicro 가 지정한 제품 이외의 전기 장치에 사용하는 것을 금지합니다. Stroomkabel en AC-Adapter...
- Page 56 Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
