METHVEN TUROA Installation Manual

Basin mixer

Enlarged version

Never use abrasives or abrasive cleaning agents to clean this product. Clean regularly with

contamination free warm soapy water and a damp soft cloth.

Periodically the stream shaper should be removed as shown below and cleaned under running water.

Methven warrants this product against manufacturing defects and that it is suitable for use

under the general operating conditions speciﬁed in this instruction sheet. However, regional

regulations apply and may aﬀect your warranty. Please refer to www.methven.com or call

customer service for full details.

New Zealand

Australia

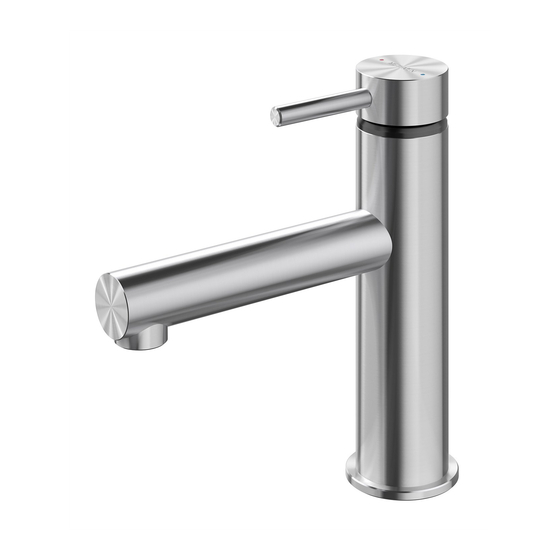

TŪROA BASIN MIXER

Technical Speciﬁcations:

Operating Pressure:

Min: 150kPa/1.5bar

Max: 1000kPa/10bar*

Optimum: 150kPa/1.5bar - 500kPa/5bar

Operating Temperature:

Hot: Max 80°C*

Cold: Min 5°C

Inlet Connections:

All ½" BSP

* Regional speciﬁc regulations apply.

Please refer to your warranty statement at

www.methven.com

ISSUE A

www.methven.com

Table of Contents

Need help?

Do you have a question about the TUROA and is the answer not in the manual?

Page 1 Periodically the stream shaper should be removed as shown below and cleaned under running water. Methven warrants this product against manufacturing defects and that it is suitable for use under the general operating conditions speciﬁed in this instruction sheet. However, regional regulations apply and may aﬀect your warranty.
Page 2 Tip: Install product to mounting surface before connecting second General: hose to mixer. Mixer Assembly • Methven recommends this product is installed Cut a single hole minimum by a licensed plumber in compliance with all 35mm/maximum 38mm relevant regional regulations.
