Power tab

1. Select Power tab to show the battery voltage supplied to the probe. The probe operating thresholds should

only be changed after advice from Sentek. The probe supply voltage should be ≈ 6.1V with new batteries.

Sensor Test tab

1. Within the Sensor Test tab check sensors are working and reporting values by selecting "Query All Sensors".

When the probe is correctly configured and installed there should be no INVALID readings for "Calibrated

Value" of individual sensors (ignore the "Total" row).

2. To stop sensor test click "Stop Sensor Querying"

3. Make sure all changes have been written to probe

4. Back up configuration by clicking on Backup Configuration, and saving to a desired location.

1. Install access tubes and mounting poles per the Sentek installation manuals (EnviroSCAN or EasyAG).

2. Secure Solo Head Unit to mounting pole or post using mounting brackets

3. Place ferrite bead on grey data cable

4. Insert the grey data cable through the cable gland on top cap into the access tube, and refit ferrite bead as

close as possible to the probe

5. Install the probe with the sensors configured as required. (See Probe Configuration Utility manual for

configuration information)

6. Connect the Solo Head Unit cable to the green Phoenix connector at the top of the probe interface in order of

colours shown in Figure 2 and Figure 3.

7. Connect to probe via Solo Download Cable or PConfig cable and open PConfig on your computer.

a) Within the Clock tab check that the date and time are correct.

The Disable Probe voltage value should always be 4 volts or higher

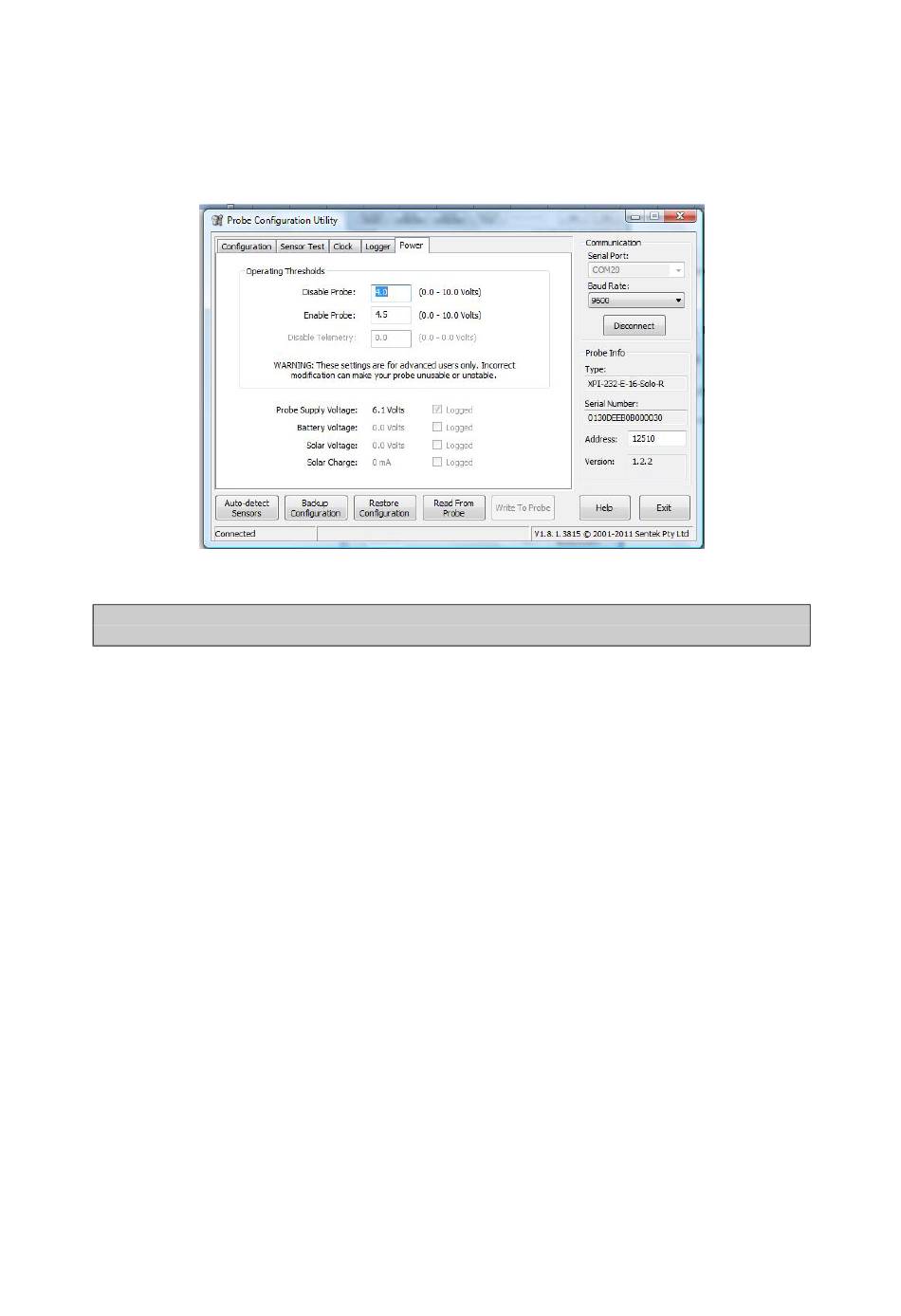

Figure 8: Power tab
