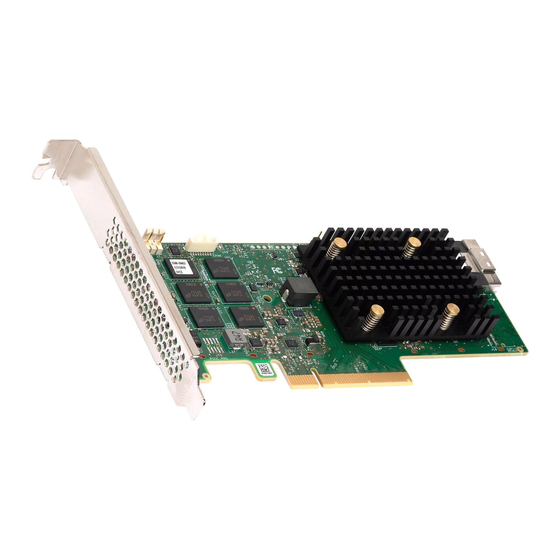

95xx PCIe 4.0 MegaRAID
and HBA Tri-Mode
Storage Adapters
User Guide
Version 2.3
Broadcom
95xx-MR-HBA-Tri-Mode-UG104
May 1, 2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 95 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Broadcom 95 Series

Summary of Contents for Broadcom 95 Series

  • Page 1 ® ® Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters User Guide Version 2.3 Broadcom 95xx-MR-HBA-Tri-Mode-UG104 May 1, 2020...
  • Page 2 Broadcom, the pulse logo, Connecting everything, Avago Technologies, Avago, the A logo, MegaRAID, CacheVault, LSI, and SSD Guard are among the trademarks of Broadcom and/or its affiliates in the United States, certain other countries, and/or the EU. © Copyright 2018–2020 Broadcom. All Rights Reserved.

  • Page 3: Table Of Contents

    ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Table of Contents Broadcom PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters..........5 Overview.................................... 5 Features..............................7 RAID Features...................................7 Operating System Support..............................7 PCIe Host Interface................................8 LED Management................................
  • Page 4 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Marks, Certifications, Compliance, and Safety Characteristics............35 Marks, Certifications, and Compliance........................35 Safety Characteristics..............................36 Appendix A: Cable Drawings and Pinouts..................37 Cable 05-60001-00................................37 Cable 05-60002-00................................39 Cable 05-60003-00................................

  • Page 5: Broadcom Pcie 4.0 Megaraid And Hba Tri-Mode Storage Adapters

    PCIe 4.0 MegaRAID tri-mode storage adapters and Broadcom PCIe 4.0 HBA tri-mode storage adapters, based on the Broadcom PCIe 4.0 tri-mode controller devices. This document contains the complete installation instructions and specifications for the following PCIe 4.0 tri‑mode storage adapters, referred to as adapters.
  • Page 6 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Table 2: HBA Tri-Mode Storage Adapter Features Adapter 9500-16i 9500-8i 9500-16e 9500-8e Ports 16 internal 8 internal 16 external 8 external I/O Processor SAS3816...

  • Page 7: Features

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Features RAID Features The following list includes primary RAID features that the MegaRAID adapters support. For a full description of the RAID features, refer to the 12Gb/s MegaRAID Tri-Mode Software User Guide, located at http://www.broadcom.com/support/...

  • Page 8: Pcie Host Interface

    Fedora • FreeBSD The firmware and drivers are routinely updated and made available on the Broadcom Support and Download center. Visit http://www.broadcom.com/support/download-search, and download the latest firmware and driver for the adapter. PCIe Host Interface The adapter’s PCIe 4.0 host interface provides maximum transmission and reception rates of up to 128 GT/s (16GB/s per lane).
  • Page 9 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters – SAS data transfers at 12Gb/s, 6Gb/s, and 3Gb/s – DataBolt technology on all SAS phys to improve performance – Serial, point-to-point, enterprise-level storage interface –...

  • Page 10: Tri-Mode Storage Interface

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Tri-Mode Storage Interface The internal adapters can direct attach to SAS, SATA, or NVMe drives. The internal and external adapters support drive attach through PCIe switches or expanders.

  • Page 11: Pcie (Nvme) Support

    HBA Tri-Mode Storage Adapters PCIe (NVMe) Support The following table shows how many NVMe drives or Broadcom PEX88000-series switches can directly attach to each adapter. The HBA 9500-16e and HBA 9500-8e adapters do not support direct attach to NVMe drives. The expected topology for the HBA 9500-16e and HBA 9500-8e adapters is a typical JBOF scenario that uses a switch to connect the NVMe drives.
  • Page 12 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters To directly attach x2 or x1 NVMe drives that require a common REFCLK, where more than one drive is sourced from a single quadrant, you must properly fan out the shared REFCLK on the backplane. For x2 and x1 NVMe connections, use SRIS-enabled drives to avoid fanning the clock out on the backplane.

  • Page 13: Backplane Management

    (UBM) specification for backplane management. Virtual Pin Port Management Broadcom requires new designs to enable UBM for backplane management. The adapter maintains support for Virtual Pin Port (VPP) backplane management for legacy implementations. The adapters provide LED operation for NVMe devices based on the VPP over I C definition.
  • Page 14 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Table 6: Sideband Signal Pinout Connector Connector Sideband or Vendor UBM Assignments Direction Resistor Value A Side B Side Specific Pin Number BP_TYPE Input 100 kΩ...
  • Page 15 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Pin Name Settings Description C_TYPE, — Open collector/drain input or output signal. • D_INPL#, C_TYPE. If BP_TYPE is 0, the adapter drives this signal LOW. If BP_TYPE...

  • Page 16: Cables And Cabling Configurations

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Cables and Cabling Configurations The internal adapter follows the SFF-9402 standard for connector signal assignments. Each x8 connector includes eight PCIe transmit and receive lanes and two sets of sidebands designated as A and B, in accordance with the SFF-9402 specification.

  • Page 17: Storage Interface Cabling

    NVMe drives. Broadcom provides the following cables to use for the adapter. Use the MPN listed to order a cable from Broadcom. If you source your own cables, use the Broadcom part number from the following table, and the drawings and pinouts in...

  • Page 18: Backplane Connectors

    EEPROM on each end to identify cable properties, such as length, loss budget, ganging, and so on. The adapter supports no direct communication to the enclosure over two-wire. SES performs enclosure management. The following table shows the cable pinout for the cable that Broadcom provides for the external adapter. See Cable Drawings and Pinouts for drawings and pinouts of each listed cable.
  • Page 19 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Table 11: External Adapter Cable Pinout Signal Signal No Connect CMICLK CINT# CMIDAT PERp0, RX0+ PETp0, TX0+ PERn0, RX0- PETn0, TX0- PERp3, RX3+ PETp3, TX3+...

  • Page 20: Cachevault Data Protection

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters CacheVault Data Protection The MegaRAID Tri-Mode storage adapters support data retention by using NAND flash memory down on the adapter, ™ backed up by a CacheVault Power Module 05 (CVPM05).

  • Page 21: Adapter Installation Instructions

    This chapter provides detailed instructions on how to install your adapter. To install the adapter, follow these steps: 1. Unpack your adapter. Unpack and remove the adapter. Inspect the adapter for damage. If it appears damaged, contact Broadcom Technical Support.
  • Page 22 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Figure 2: Installing an Adapter in a PCIe Slot 6. Configure and install the SAS, SATA, and PCIe (NVMe) devices in the host computer case.
  • Page 23 11. Install the operating system driver. The adapters can operate under various operating systems. To operate under these operating systems, you must install the software drivers. The firmware and drivers are routinely updated and made available on the Support and Download center. Visit http://www.broadcom.com/support/download-search, and download the latest firmware and driver for the adapter.

  • Page 24: Broadcom Megaraid And Hba Tri-Mode Storage Adapter Characteristics

    With the PCIe interface, this connector provides power to the board and an C interface connected to the I C bus for the Intelligent Platform Management Interface (IPMI). Default serial boot ROM (SBR) header 2-pin connector. Reserved for Broadcom use. Advanced software options hardware 2-pin connector. key header Enables support for selected advanced features.

  • Page 25: Megaraid 9560-8I Adapter - Connector And Led Designations

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Connector Type Description Global drive fault LED header 2-pin connector. Connects to an LED that indicates whether a drive is in a fault condition.

  • Page 26: Megaraid 9580-8I8E Adapter - Connector And Led Designations

    With the PCIe interface, this connector provides power to the board and an I interface connected to the I C bus for the IPMI. Default SBR header 2-pin connector. Reserved for Broadcom use. Advanced software options hardware 2-pin connector. key header Enables support for selected advanced features.
  • Page 27 With the PCIe interface, this connector provides power to the board and an I interface connected to the I C bus for the IPMI. Default SBR header 2-pin connector. Reserved for Broadcom use. Advanced software options hardware 2-pin connector. key header Enables support for selected advanced features.

  • Page 28: Hba 9500-16I Adapter - Connector And Led Designations

    With the PCIe interface, this connector provides power to the board and an I interface connected to the I C bus for the IPMI. Default SBR header 2-pin connector. Reserved for Broadcom use. Onboard serial UART connector 4-pin connector. Reserved for Broadcom use. J17, J18 Storage interface connectors Two SFF-8654 8-port internal connectors.

  • Page 29: Hba 9500-8I Adapter - Connector And Led Designations

    With the PCIe interface, this connector provides power to the board and an I interface connected to the I C bus for the IPMI. Default SBR header 2-pin connector. Reserved for Broadcom use. Onboard serial UART connector 4-pin connector. Reserved for Broadcom use. Storage interface connector One SFF-8654 8-port internal connector.

  • Page 30: Hba 9500-16E Adapter - Connector And Led Designations

    C bus for the IPMI. Storage interface connectors Four SFF-8644 external connectors. Connect the adapter by cable to the storage devices. 2-pin connector. Reserved for Broadcom use. Default SBR header 4-pin connector. Reserved for Broadcom use. Onboard serial UART connector The following table describes the LEDs on the adapter.

  • Page 31: Hba 9500-8E Adapter - Connector And Led Designations

    C bus for the IPMI. Two SFF-8644 external connectors. Storage interface connectors Connect the adapter by cable to the storage devices. 2-pin connector. Reserved for Broadcom use. Default SBR header 4-pin connector. Reserved for Broadcom use. Onboard serial UART connector The following table describes the LEDs on the adapter.
  • Page 32 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Table 25: LED Designations Type Description LED2 Yellow IOC over Stays on solid to indicate that the SAS3816 IOC temperature sensor is over the temperature temperature threshold.

  • Page 33: Tri-Mode Storage Adapter Technical Specifications

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Tri-Mode Storage Adapter Technical Specifications Operating and Nonoperating Conditions The following table lists the operating (thermal and atmospheric) conditions and nonoperating (such as storage and transit) environment for the storage adapters.

  • Page 34: Hba Tri-Mode Storage Adapter Power Supply Requirements

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters During the transparent learn cycle, the CacheVault power module consumes up to an additional 6W. The PCIe 3.3V rail supplies the power for the learn cycle.

  • Page 35: Marks, Certifications, Compliance, And Safety Characteristics

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Marks, Certifications, Compliance, and Safety Characteristics Marks, Certifications, and Compliance The design and implementation of the adapters minimize electromagnetic emissions, susceptibility to radio frequency energy, and the effects of electrostatic discharge.

  • Page 36: Safety Characteristics

    ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Mark Symbol Description Taiwan Meets the following standards: • (BSMI) CNS 13438 • CNS15663 For use with UL listed ITE equipment only. USA /...

  • Page 37: Appendix A: Cable Drawings And Pinouts

    Use the cable drawings and pinouts in this appendix if your design requires you to design your own cables. Cable 05-60001-00 The following figure shows the drawing and pinout for Broadcom cable, 05-60001-00, a x8 SFF-8654 to 2 x4 SFF-8612 connection.
  • Page 38 Broadcom 95xx User Guide Broadcom ® 95xx PCIe 4.0 MegaRAID ® and HBA Tri-Mode Storage Adapters Figure 10: Cable 05-60001-00 Drawing and Pinout Broadcom 95xx-MR-HBA-Tri-Mode-UG104...

  • Page 39: Cable 05-60002-00

    HBA Tri-Mode Storage Adapters Cable 05-60002-00 The following figure shows the drawing and pinout for Broadcom cable, 05-60002-00, a x8 SFF-8654 to 2 x4 SFF-8643 connection. Use this cable for NVMe connections on SuperMicro Purley backplanes. Figure 11: Cable 05-60002-00 Drawing and Pinout...

  • Page 40: Cable 05-60003-00

    Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Cable 05-60003-00 The following figure shows the drawing and pinout for Broadcom cable, 05-60003-00, a x8 SFF-8654 to 2 x4 SFF-8643 connection. Figure 12: Cable 05-60003-00 Drawing and Pinout Broadcom...

  • Page 41: Cable 05-60004-00

    Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Cable 05-60004-00 The following figure shows the drawing and pinout for Broadcom cable, 05-60004-00, a x8 SFF-8654 to 2 x4 SFF-8654 connection. Figure 13: Cable 05-60004-00 Drawing and Pinout Broadcom...

  • Page 42: Cable 05-60005-00

    Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Cable 05-60005-00 The following figure shows the drawing and pinout for Broadcom cable, 05-60005-00, a x8 SFF-8654 to 2 U.2 SFF-8639 connection. Figure 14: Cable 05-60005-00 Drawing and Pinout Broadcom...

  • Page 43: Cable 05-60006-00

    Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Cable 05-60006-00 The following figure shows the drawing and pinout for Broadcom cable, 05-60006-00, a x8 SFF-8654 to x8 U.3 SFF-8639 connection. Figure 15: Cable 05-60006-00 Drawing and Pinout Broadcom...
  • Page 44 ® ® Broadcom 95xx User Guide Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Broadcom 95xx-MR-HBA-Tri-Mode-UG104...

  • Page 45: Cable 05-60007-00

    Broadcom 95xx PCIe 4.0 MegaRAID and HBA Tri-Mode Storage Adapters Cable 05-60007-00 The following figure shows the drawing and pinout for Broadcom cable, 05-60007-00, a x8 SFF-8654 to x8 SFF-8654 connection. Figure 16: Cable 05-60007-00 Drawing and Pinout Broadcom 95xx-MR-HBA-Tri-Mode-UG104...

  • Page 46: Appendix B: Revision History

    Updated PCIe (NVMe) Support. Version 2.2, March 17, 2020 • Added connector identifiers to drawings in Broadcom MegaRAID and HBA Tri-Mode Storage Adapter Characteristics. • Template update. Version 2.1, February 12, 2020 • Changed the relative humidity range and temperature range for operating conditions in Operating and Nonoperating Conditions.
