Connector
J11 Global drive fault LED header
J14 CacheVault power module interface
J17, J18 Storage interface connectors
The following table describes the LEDs on the adapter.
Table 13: LED Designations
LED Type
LED 2 Yellow controller over temperature
LED 3 Green system heartbeat
LED 5 Yellow supercap fault
LED 6 Green ONFI activity
MegaRAID 9560-8i Adapter – Connector and LED Designations
The adapter is a 6.127 in. × 2.712 in. (155.65 mm × 68.90 mm) board. The component height on the top and bottom of the
adapter complies with the PCIe specification.
The following figure shows the connectors and LED locations on the adapter. Pin 1 on the headers and connectors is
highlighted in red in the figure.

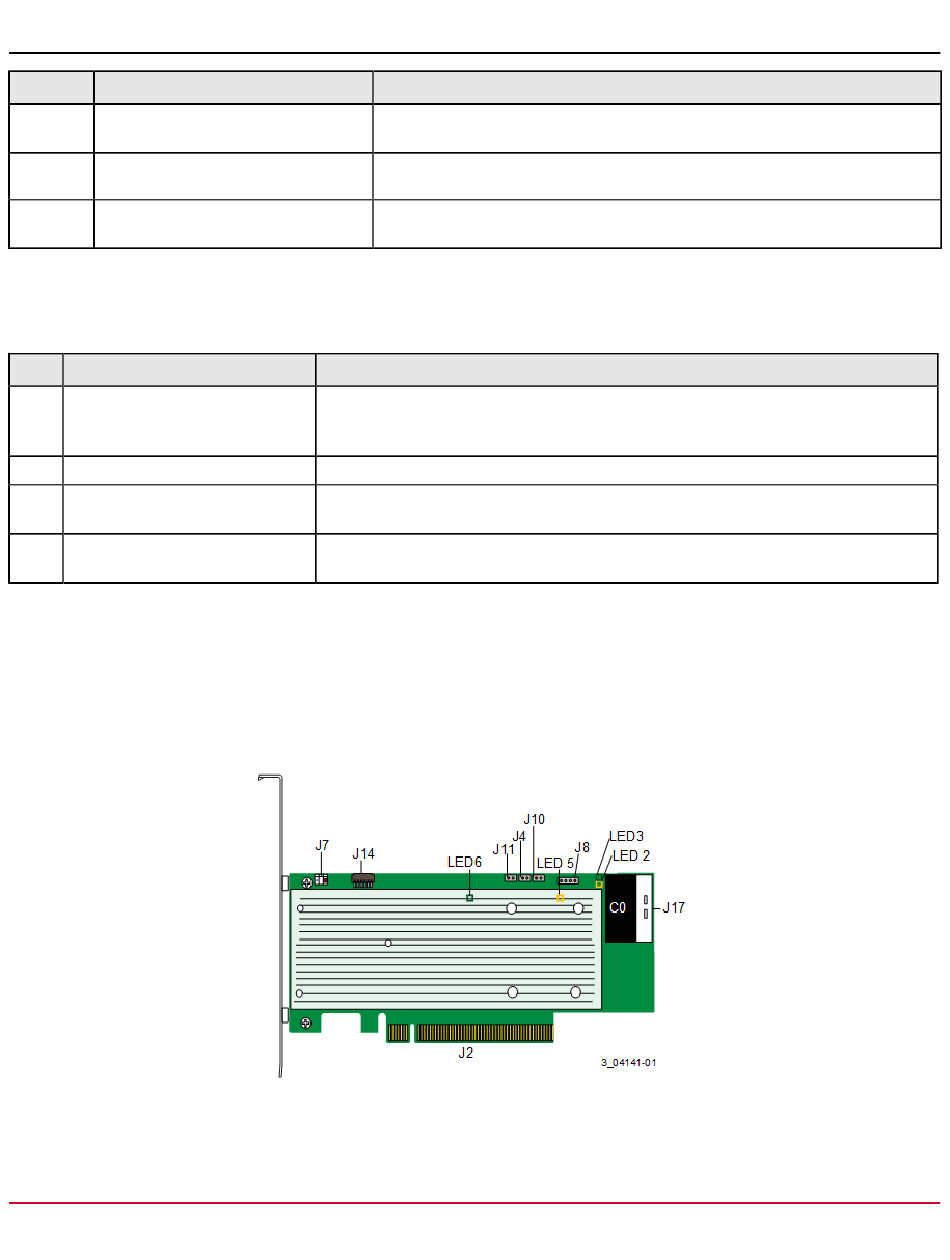

Figure 4: Card Layout for the MegaRAID 9560-8i Tri-Mode Storage Adapter
Broadcom
Type
2-pin connector.
Connects to an LED that indicates whether a drive is in a fault condition.
9-pin connector.
Connects the adapter to a CacheVault power module.
Two SFF-8654 8-port internal connectors.
Connect the adapter by cable to the storage devices.
Stays on solid to indicate that the SAS3916 device temperature sensor is over the
temperature threshold. When the device is in the proper temperature range, this LED is
off.
Indicates that the SAS3916 RoC ASIC is operating normally. This LED blinks at 1 Hz.
Indicates that the CacheVault power module is in fault state or is over temperature. This
LED resides on the nonheat-sink side of the board.
Indicates when the ONFI is active for cache offload or recovery. This LED resides on the
nonheat-sink side of the board.
®
