Summary of Contents for Broadcom BCM943225HM

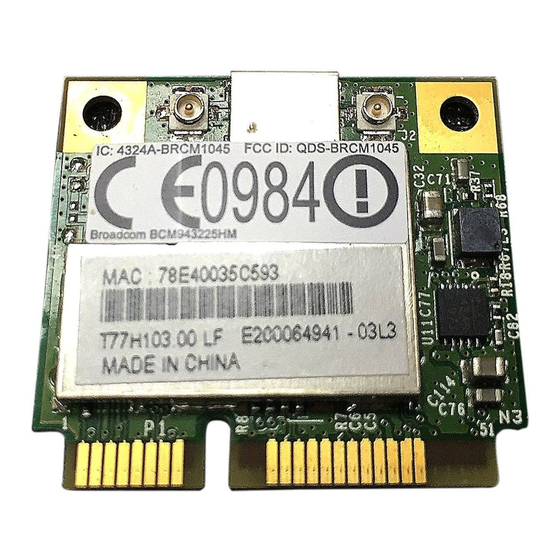

- Page 1 Section 9 User’s Manual BCM943225HM 18 pages User Guide Broadcom Corporation Type Approval Application (E) BCM943225HM...
-
Page 2: Before You Begin
Things you should know When you start your computer, your Broadcom BCM943225HM PCI-E Mini card detects certain wireless networks that are within range. Before you can connect to these and other wireless networks, you must configure a profile for each network using the information you obtained from your network administrator. - Page 3 Back to top...
- Page 4 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Back to Contents Page Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Overview Utility Components Overview The Broadcom Wireless Utility enables you to do the following network tasks:...
-
Page 5: Utility Icon
A-ID group changes Manually import EAP-FAST PACS On the Add menu, you can use either the wireless network wizard that is available from Broadcom Wireless Utility (see Connecting to a Basic Network or Creating an Ad Hoc Network Using the Wireless Network Wizard") or the utility (see... - Page 6 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide To disable the radio, clear the Enable radio check box. To enable the radio, select the Enable radio check box. To hide the utility icon , clear the Show utility icon check box.
- Page 7 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide For networks that use the EAP-FAST authentication method, the Wireless WLAN Card Utility automatically adds trusted servers to the trust list and accepts auto-provisioning (A-ID) group changes by default.
-
Page 8: Link Status
Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide 1. Open Broadcom Wireless Utility. 2. From the Wireless Networks tab, click Options, point to Cisco Compatible Extensions, and then click Administrator Settings. 3. In the Trust list (A-ID), click the name of the trusted server you want to delete, and then click Delete. - Page 9 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide The status of your network connection is also indicated by the appearance of the utility icon . The number and color of the radio waves indicates the strength or weakness of the signal (see Table 1.
- Page 10 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Icon Indicated Received Signal Strength Appearance The signal strength is very good or excellent. The signal strength is weak. See Troubleshooting for suggested action. No signal is being received. See...
-
Page 11: Site Monitor
Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Site Monitor Basic Site Monitor On the Site Monitor tab, the basic Site Monitor displays information about wireless routers/APs ad hoc networks that are within range. To sort the list, click the column heading that shows the characteristic you want to sort by. - Page 12 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide NOTES: Nonbroadcasting networks are labeled (nonbroadcasting) under Network Name. The network performance may be degraded while Site Monitor is displaying nonbroadcasting APs to which you are not currently connected.
- Page 13 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide You can adjust the time interval between scans by clicking the Options arrow, and then clicking either one of the preset values or clicking Customize to specify a different time interval.
- Page 14 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide Initiation of user session Connecting to a network Disconnecting from current network Authentication mode being used Driver status Supplicant status New wireless device available Initializing wireless state machine...
- Page 15 Using the Broadcom Wireless Utility: Broadcom AirForce™ 54g™ and Intensi-fi™ Wireless Network Adapter User Guide The following information is displayed on the Information tab: Software details Hardware details Location details (shows the country for which the driver is installed and the channels supported for...
-
Page 16: Usa-Federal Communications Commission (Fcc)
Regulatory Statements for BCM943225HM USA-Federal Communications Commission (FCC) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 17: Canada - Industry Canada (Ic)
Canada – Industry Canada (IC) This device complies with RSS 210 of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device.”... - Page 18 Europe—EU Declaration of Conformity and Restrictions Hereby, Broadcom Corp, declares that this equipment complies with the essential requirements and other relevant provisions of Directive 1999/5/EC. 0984 This equipment is marked with the symbol and can be used throughout the European community.
-
Page 19: Taiwan Ncc Warning Statement
Taiwan NCC warning statement Translation: Article 12 Without permission granted, the frequency change, transmitting power enhance or alter of original design characteristic as well as function by company, enterprise, or user for approved Low-power radio frequency devices is not allowed. Article 14 Low-power radio-frequency devices shall not influence aircraft security and interfere legal communications;...
