Cables and Cabling Configurations

The internal adapter follows the SFF-9402 standard for connector signal assignments. Each x8 connector includes eight
PCIe transmit and receive lanes and two sets of sidebands designated as A and B, in accordance with the SFF-9402
specification. The following figure shows the x8 SFF-8654 pin designations.

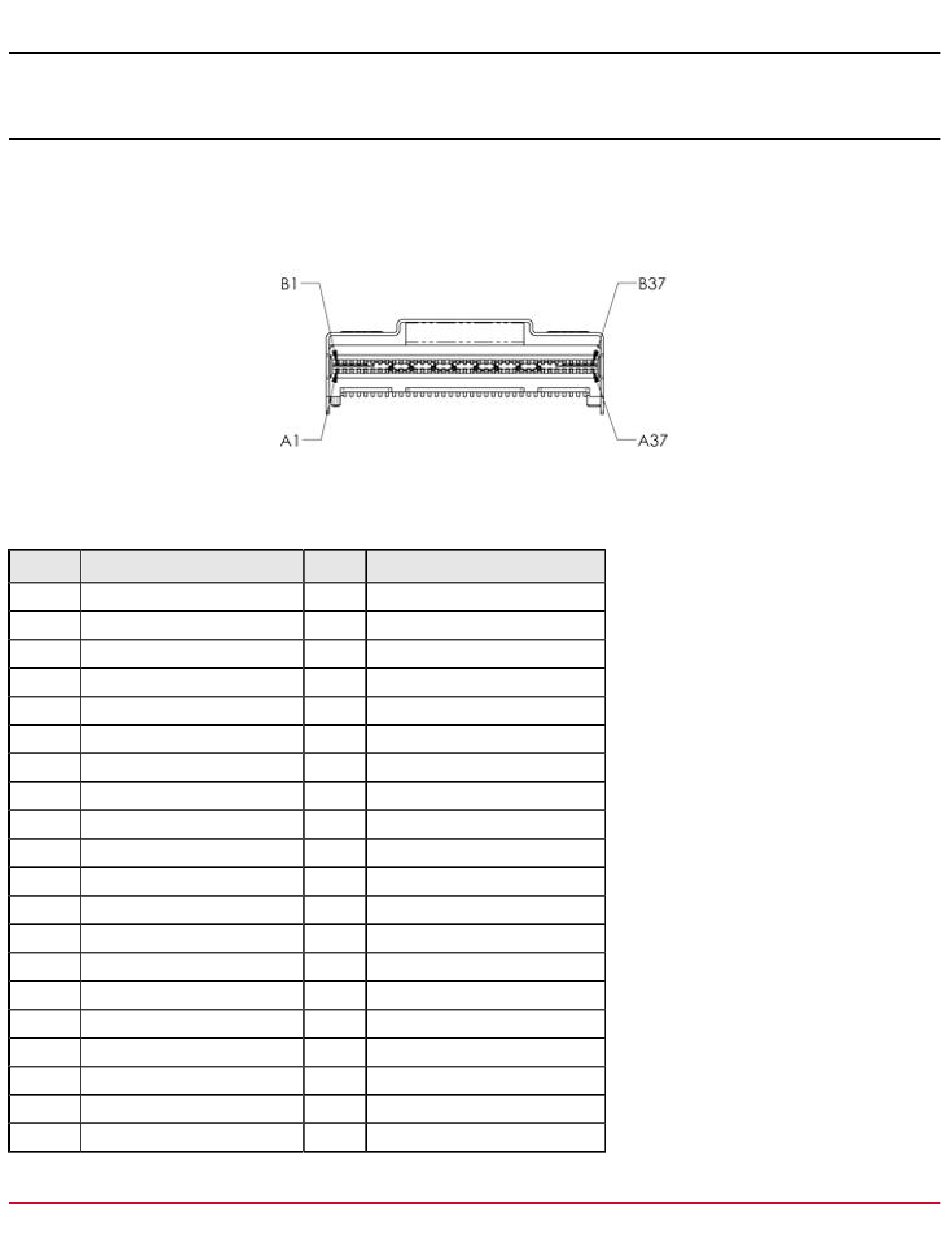

Figure 1: x8 SFF-8654 Pin Designations
The following table defines the adapter's internal x8 SFF-8654 connector pinouts.
Table 8: Internal x8 SFF-8654 Connector Pinout
Pin Name
A1 GND
A2 PERp0, RX0+
A3 PERn0, RX0-
A4 GND
A5 PERp1, RX1+
A6 PERn1, RX1-
A7 GND
A8 BP_TYPEA
A9 2W_RESETA,SDataOutA
A10 GND
A11 REFCLKA+
A12 REFCLKA-
A13 GND
A14 PERp2, RX2+
A15 PERn2, RX2-
A16 GND
A17 PERp3, RX3+
A18 PERn3, RX3-
A19 GND
A20 PERp0, RX4+
Broadcom
Pin Name
B1 GND
B2 PETp0, TX0+
B3 PETn0, TX0-
B4 GND
B5 PETp1, TX1+
B6 PETn1, TX1-
B7 GND
B8 2W-CLKA, SClockA
B9 2W-DATAA, SloadA
B10 GND
B11 PERSTA#, SDatainA
B12 CPRSNTA#, CNTRLR_TYPEA
B13 GND
B14 PETp2, TX2+
B15 PETn2, TX2-
B16 GND
B17 PETp3, TX3+
B18 PETn3, TX3-
B19 GND
B20 PETp0, TX4+
®
