95xx PCIe 4.0 MegaRAID
and HBA Tri-Mode Storage Adapters
Cable 05-60004-00

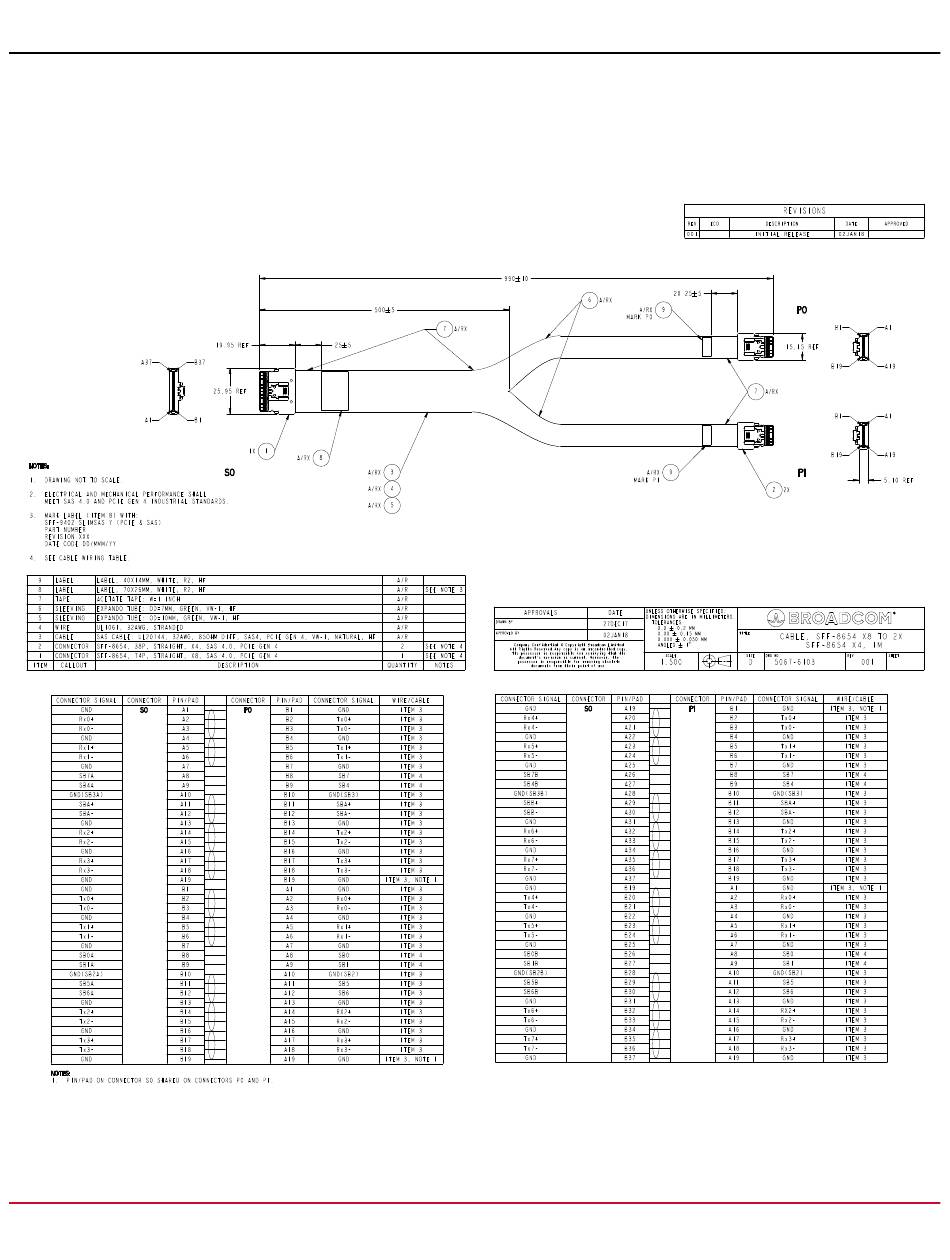

The following figure shows the drawing and pinout for Broadcom cable, 05-60004-00, a x8 SFF-8654 to 2 x4 SFF-8654
connection.
Figure 13: Cable 05-60004-00 Drawing and Pinout
Broadcom
95xx-MR-HBA-Tri-Mode-UG104
41
