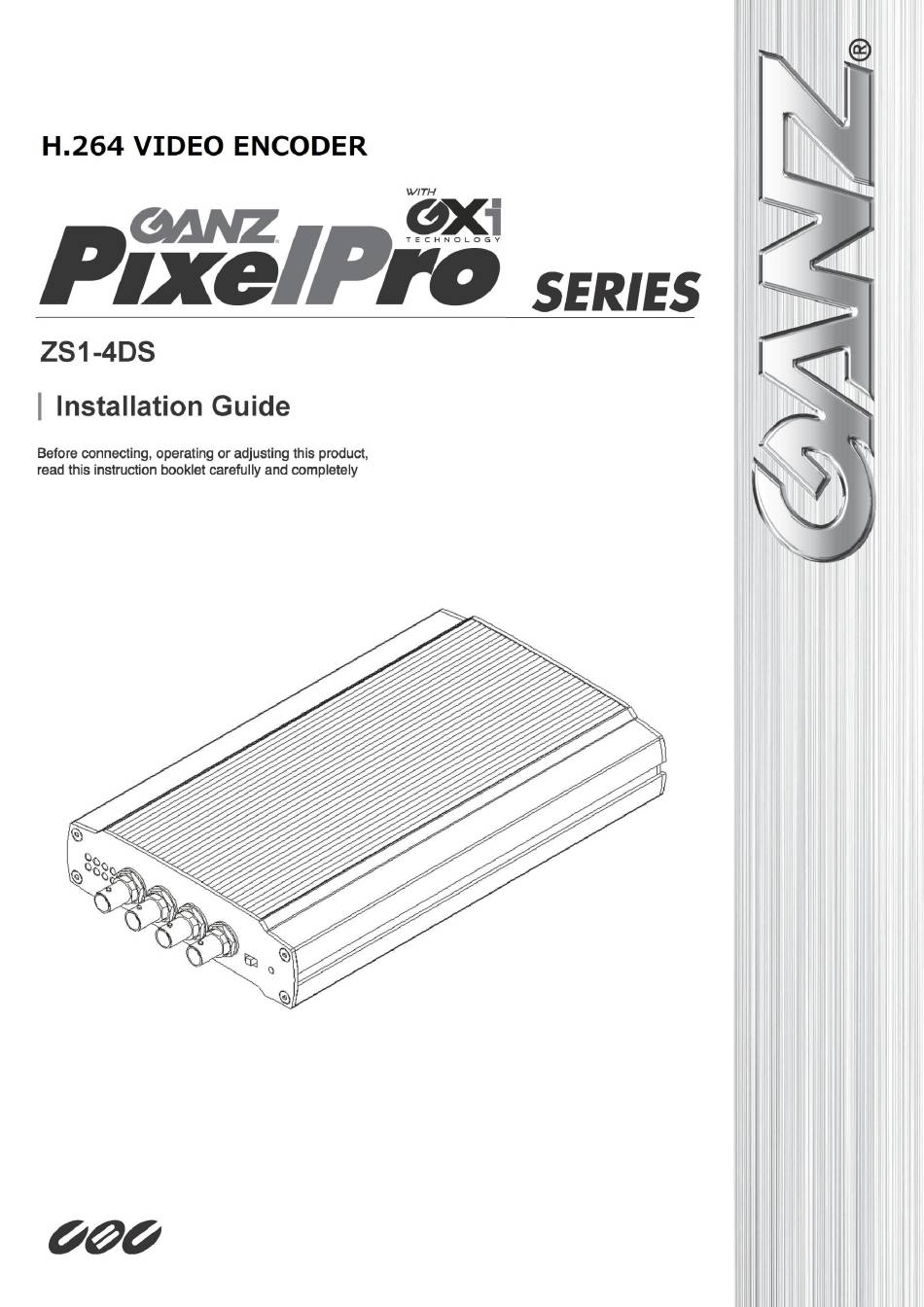

Ganz PixelPro ZS1-4DS Installation Manual

H.264 video encoder with gxi technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PixelPro ZS1-4DS and is the answer not in the manual?

Questions and answers

Related Manuals for Ganz PixelPro ZS1-4DS

Summary of Contents for Ganz PixelPro ZS1-4DS

  • Page 2: Precaution

    Precaution  Please read this manual carefully before installing the unit.  Never disassemble the camera. Unauthorized disassembly may cause equipment failure or damage to the unit.  Please do not install the camera in a place exposed to direct sunlight. ...

  • Page 3: Table Of Contents

    Table of Contents Precaution ........................ 2 1. FEATURES ......................4 2. PACKAGE CONTENTS..................... 5 3. PART NAMES ......................6 3.1. Front Panel ......................... 6 3.2. Back Panel .......................... 7 4. CONNECTIONS ...................... 8 4.1.Connectors .......................... 8 5. CONFIGURATION ....................12 5.1.

  • Page 4: Features

    PixelPro GXi Series ZS1-4DS Installation Guide 1. FEATURES Streaming  Dual streaming mode (such as different codec/resolution/bit rate and so on.)  De-interlacing on DSP  Burnt-in text supported  Unicast/Multicast supported Video/Audio  Video compression: H.264/MJPEG, 25/30FPS@D1(PAL/NTSC)  Audio compression: G.711(µLaw) ...

  • Page 5: Package Contents

    PixelPro GXi Series ZS1-4DS Installation Guide 2. PACKAGE CONTENTS Unpack carefully and handle the equipment with care. The packaging contains: Encoder DC power adaptor Mounting brackets x 2ea 16 Pin terminal block x 2ea Screws and anchor blocks Quick Installation Guide 2.0mm hex ket wrench x 1ea Jumper Cap x 4ea The above contents are subject to change without prior notice.

  • Page 6: Part Names

    PixelPro GXi Series ZS1-4DS Installation Guide 3. PART NAMES 3.1. Front Panel ④ ○ ○ ○ ① System Status LEDs The LEDs, located on the left side of the front panel, indicate certain system status. Status: The LED turns on in orange when the encoder is powered on. Data: The LED turns on in green when the video signal comes in with a proper connection.

  • Page 7: Back Panel

    PixelPro GXi Series ZS1-4DS Installation Guide 3.2. Back Panel ○ ○ ○ ○ ○ ⑤ DI/DO The encoder supports four DI and four DO. Refer to the section “4.1.Connectors” for more specific information. ⑥ Audio In/Out The encoder has four channels mono audio input and one mixed output. As the output power for the audio is low, an amplifier speaker is needed.

  • Page 8: Connections

    PixelPro GXi Series ZS1-4DS Installation Guide 4. CONNECTIONS 4.1.Connectors Video connection Connect the camera to the video input connectors on the back panel using 75 ohm video coaxial cables with a BNC connector. Each of the connected video input channel can be looped to other equipments (e.g.
  • Page 9 PixelPro GXi Series ZS1-4DS Installation Guide Internal Internal +3.3V Output of Output of Sensor 1 Sensor 1 DI 1 DI 1 +3.3V Output of Output of Module Module Sensor 2 Sensor 2 DI 2 DI 2 +3.3V Output of Output of Module Module Sensor 3...
  • Page 10 PixelPro GXi Series ZS1-4DS Installation Guide Do not exceed the maximum relay rating. Caution Device Internal DO 1 Module Device DO 2 Module Device DO 3 Module Device DO 4 Module Relay Type 09-2014-A...
  • Page 11 PixelPro GXi Series ZS1-4DS Installation Guide RS-485 The RS-485 serial port consists of TRX+(RX+) and TRX-(RX-) as following the following image. 485 Device RS-485 Connection 09-2014-A...

  • Page 12: Configuration

    PixelPro GXi Series ZS1-4DS Installation Guide 5. CONFIGURATION 5.1. Set up network environment The default IP address of the device is 192.168.XXX.XXX. Users can identify the IP address of the device from converting the MAC address’s hexadecimal numbers, which is attached to the device.

  • Page 13: Custom Ip Environment

    PixelPro GXi Series ZS1-4DS Installation Guide 5.1.2. Custom IP Environment IPAdminTool is a management tool, which automatically scans all of the network products for users to perform administrative tasks, which includes network configurations, firmware update, device reboot, and device organizations. To modify the device’s default IP address for customized network area;...

  • Page 14: View Video On Web Page

    PixelPro GXi Series ZS1-4DS Installation Guide 5.2. View video on web page Once the device’s proper IP address has been identified, type the URL in a web browser to access the camera. At first time access, installation window may pop up. When the browser asks to install the AxUMF software, click Install to proceed.

  • Page 15: Access Through Ipadmin Tool

    PixelPro GXi Series ZS1-4DS Installation Guide 5.2.1. Access through IPAdmin Tool IPAdminTool automatically searches all activated network encoders and IP cameras and shows the product name, IP address, MAC address and etc. 1. From the IPAdminTool’s product list, select the device by highlighting it. 2.

  • Page 16: Reset

    PixelPro GXi Series ZS1-4DS Installation Guide 5.3. Reset While the device is in use, press the Reset button. Wait for the system to reboot. 5.4. Factory Default 1. Press reset button and hold. 2. Release the Reset button after 5 seconds until LED blinks. 3.

  • Page 17: Wall-Mounting

    PixelPro GXi Series ZS1-4DS Installation Guide 6. WALL-MOUNTING To wall-mount the encoder, follow the instruction below: 1. Designate the position where to install the encoder. 2. Put the mounting brackets into a long groove on each side of the encoder. 3.

  • Page 18: Appendix (A): Specifications

    PixelPro GXi Series ZS1-4DS Installation Guide APPENDIX (A): SPECIFICATIONS Summary Video Input 4 channel Output Compression Format H.264, MJPEG Selectable per Stream Number of Streams Dual Stream for each channel, Configurable Resolution D1, 4CIF, 2CIF, VGA, CIF, QCIF, QVGA Compression FPS 25/30 fps@D1 (PAL/NTSC) Deinterlacing Support (DSP)

  • Page 19: Environment Condition

    PixelPro GXi Series ZS1-4DS Installation Guide Environment Condition Operating Temperature 0 ºC ~ 50 ºC ( 32ºF ~ 122 ºF) Operating Humidity Up to 85% RH Mechanical Condition Dimension 137(W) x 38(H) x 243(D) mm Weight (Approx) 920g 09-2014-A...

  • Page 20: Appendix (B): Dimensions

    PixelPro GXi Series ZS1-4DS Installation Guide APPENDIX (B): DIMENSIONS (Unit: mm) 09-2014-A...

  • Page 21: Appendix (C): Hexadecimal-Decimal Conversion Table

    PixelPro GXi Series ZS1-4DS Installation Guide APPENDIX (C): HEXADECIMAL-DECIMAL CONVERSION TABLE Refer to the following table when you convert the MAC address of your device to IP address. Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec Hex Dec 25 37 4A 74...

  • Page 22: Revision History

    PixelPro GXi Series ZS1-4DS Installation Guide REVISION HISTORY MAN# DATE(M/D/Y) Comments 01A.01 11/12/2013 Created 03-2014-A 03/26/2013 Correct explanation for PoE 09-2014-A 09/04/2013 Correct explanation for VCA license 09-2014-A...
