BOX CONTENTS Locking Power Cable Mounting Bracket and Screws CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...
To obtain warranty service, a Return Materials Authorization (RMA) number must first be obtained from ELATION. It is the Customer’s responsibility to provide product proof of purchase and serial number by acceptable evidence such as an invoice copy or an approved ELATION Extended Warranty Certificate (“EWC”) and any relevant maintenance records at the time warranty service is sought.
This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.

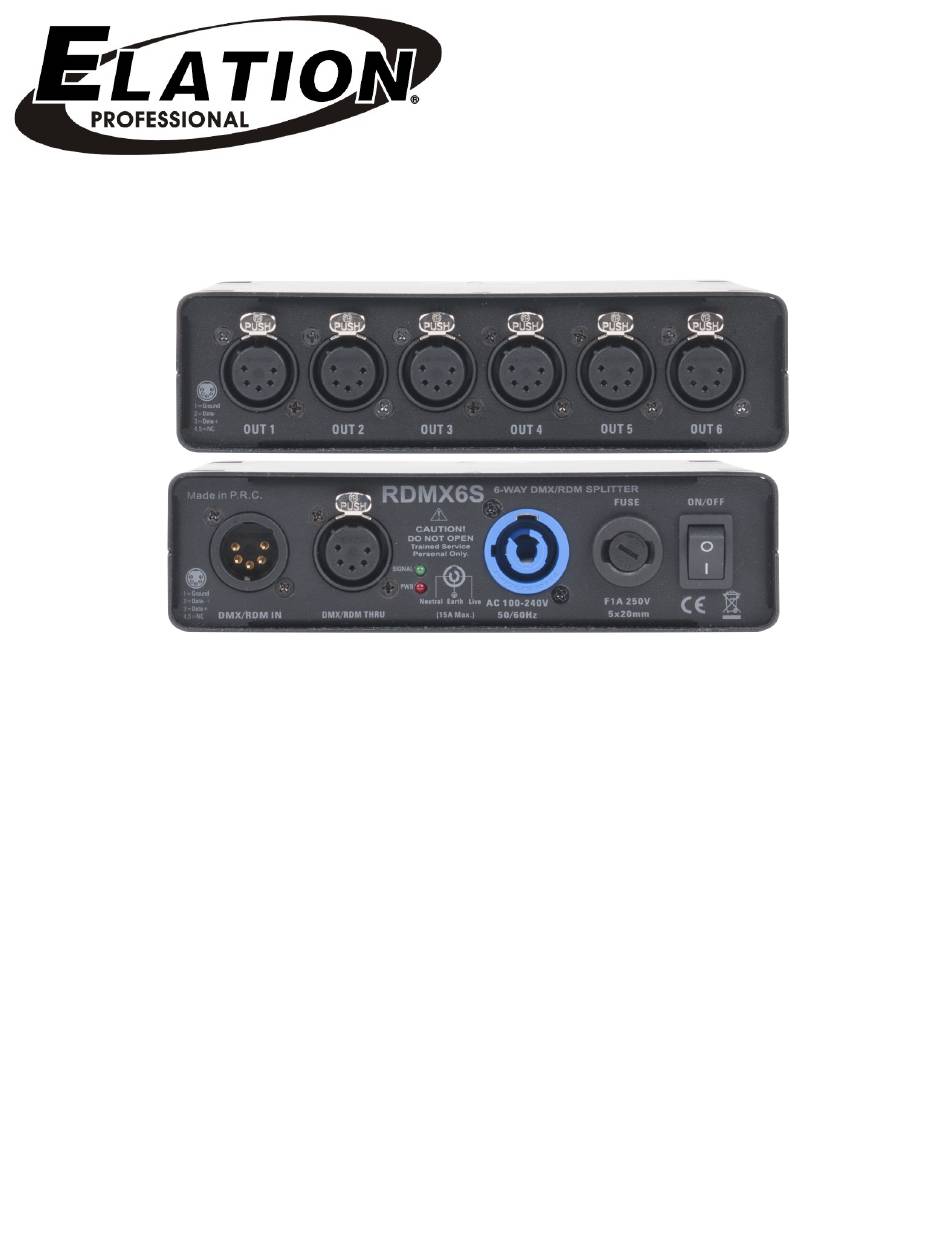

O V E R V I E W 1. (6) 5pin DMX OUTPUTS 2. Mounting Bracket (included) 3. 5pin DMX/RDM INPUT 4. 5pin DMX/RDM THRU 5. DMX/RDM Signal (Green) & AC Power (Red) Indicators 6. Locking Power IN (AC 100-240V) 7.
S P E C I F I C A T I O N S CONTROL / CONNECTIONS 5pin XLR Input 5pin XLR Thru Output (6) 5pin XLR Outputs Locking Power Connector In SIZE / WEIGHT Length: 6.8” (173mm) Width: 6.7” (170mm) Vertical Height: 2.9”...
DIMENSIONAL DRAWINGS (Not to Scale) Specifications and improvements in the design of this unit and this manual are subject to change without notice. O P T I O N A L A C C E S S O R I E S ORDER CODE ITEM NARROW CLAMP...
