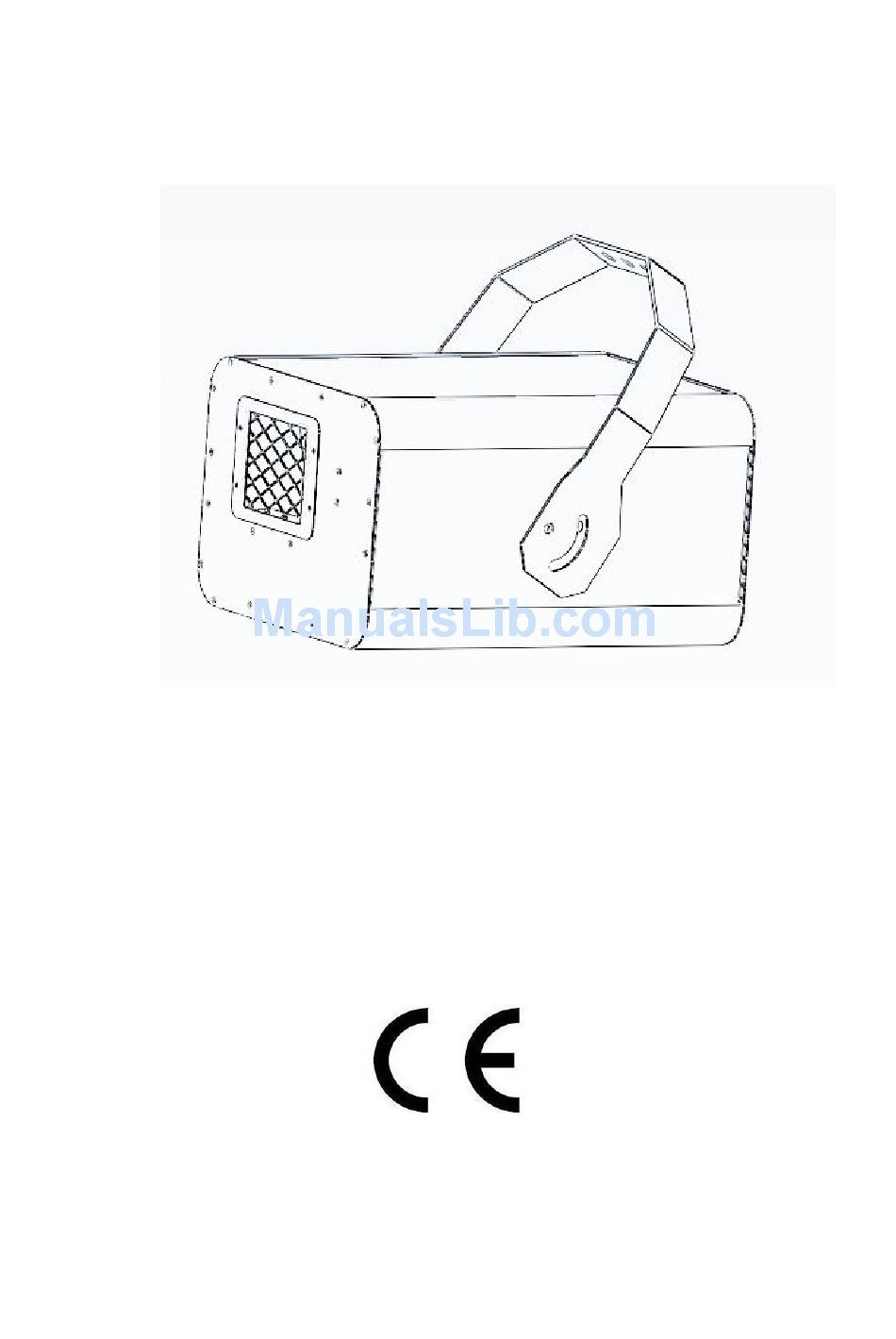

5R SNIPER STAGE LIGHT

USER MANUAL

KEEP THIS MANUAL FOR FUTURE NEEDS

Advertisement

loading

Related Manuals for Elation 5R SNIPER

Summary of Contents for Elation 5R SNIPER

  • Page 1: User Manual

    5R SNIPER STAGE LIGHT USER MANUAL KEEP THIS MANUAL FOR FUTURE NEEDS...

  • Page 2: Safety Instructions

    Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install, operate, and maintain the lighting safety correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.

  • Page 3: Color

    3. Using lamp, the change rate of power voltage should be within±10%, if the voltage is too high, it will shorten the light’s life; if it’s not enough, the lamp will be dark. 4. Please restart it after turning off light for 20 minutes until full-cooling. Frequent switching will reduce the life span of lamps and bulbs;...

  • Page 4: Gobo

    4. It should be installed in a well-ventilated place, at a distance of 50 centimeters or more with the walls. At the same time, please check if the fan and ventilation holes are unobstructed. The following points have to be considered during the inspection 1) All screws for installing the devices or parts of the device have to be tightly connected and must not be corroded.

  • Page 5: Strobe

    LAMP SOURCE Discharge lamp with a short arc burner in a reflector system - Type: 5R , 200W - Output Lamp power: 350 W - Color temperature: 8,000 K COLOR SYSTEM Color wheel: one color wheel, 14 kinds of color chips in one color wheel EFFECTS SECTION Interchangeable gobo wheel with 17 fixed gobos High speed shake effect,3-face rotating prism...
  • Page 6 LCD TOUCH SCREEN DISPLAY MENU DMX Address 001~512 DMX 14 Channel DMX 20 Channel Auto Run Perform Mode 1 Perform Mode 2 Perform Mode 3 Perform Mode 4 Perform Mode 5 Perform Mode 6 Perform Mode 7 Perform Mode 8 Sound Control Run Mode Master Auto Run Perform Mode 1...

  • Page 7: Table Of Contents

    Prism .=000 Mic Sensitive = 000 Current Time Total Time System State Run Mode Software Version .=000 TILT .=000 X Shaking .=000 Y Shaking .=000 Color .=000 Gobo .=000 Pattern .=000 Pattern Rotation .=000 Manual Control Pattern Variant .=000 Pattern Zoom .=000 Off-Center Mirror...

  • Page 8: Tilt

    DMX Channel 14 channel mode Channel DMX Value Function 000 - 127 128-255 Pan-Shaking Slow To Fast 000 - 127 Tilt 128-255 Tilt-Shaking Slow To Fast 000-004 OPEN(White) 005-009 White/Color1 010-014 Color1 015-019 Color1/Color2 020-024 Color2 025-029 Color2/Color3 030-034 Color3 035-039 Color3/Color4 040-044...

  • Page 9: Gobo

    196-199 Stop 200-255 Backward rotation from slow to fast 000-007 OPEN(White) 008-014 Gobo1 015-022 Gobo2 023-029 Gobo3 030-037 Gobo4 038-044 Gobo5 045-052 Gobo6 053-059 Gobo7 060-067 Gobo8 068-074 Gobo9 075-082 Gobo10 083-089 Gobo11 090-097 Gobo12 098-104 Gobo13 105-112 Gobo14 113-119 Gobo15 120-126 Gobo16...

  • Page 10: Pattern Zoom

    010-120 Pattern Horizontal rotation from fast to slow 121-123 Empty 135-245 Pattern Vertical rotation from slow to fast 246-255 Empty 000-127 Pattern Zoom Manual 128-255 Pattern Zoom from slow to fast 000-063 BEAM ROTATION 0-360° 064-127 BEAM ROTATION Shaking 128-189 BEAM ROTATION Forward Rotation from fast to slow 190-193 Stop...
  • Page 11 010-014 Color1 015-019 Color1/Color2 020-024 Color2 025-029 Color2/Color3 030-034 Color3 035-039 Color3/Color4 040-044 Color4 045-049 Color4/Color5 050-054 Color5 055-059 Color5/Color6 060-064 Color6 065-069 Color6/Color7 070-074 Color7 075-079 Color7/Color8 080-084 Color8 085-089 Color8/Color9 090-094 Color9 095-099 Color9/Color10 100-104 Color10 105-109 Color10/Color11 110-114 Color11 115-119...
  • Page 12 075-082 Gobo10 083-089 Gobo11 090-097 Gobo12 098-104 Gobo13 105-112 Gobo14 113-119 Gobo15 120-126 Gobo16 127-133 Gobo17 134-194 Forward rotation from fast to slow 195-255 Backward rotation from slow to fast 000-008 empty 009-034 Pattern Macro 1 035-059 Pattern Macro 2 060-084 Pattern Macro 3 085-109...
  • Page 13 000-007 Prism OFF 008-255 Prism ON 000-009 Stop 010-129 Prism Forward Rotation from fast to slow 130-134 Stop 135-255 Prism Backward Rotation from slow to fast 000-009 Shutter closed 010-250 Strobe effect slow to fast 251-255 Shutter open 000-255 Dimmer(0-100%) 040-059 Lamp ON 060-079...
