Elation Professionals T20F Specification

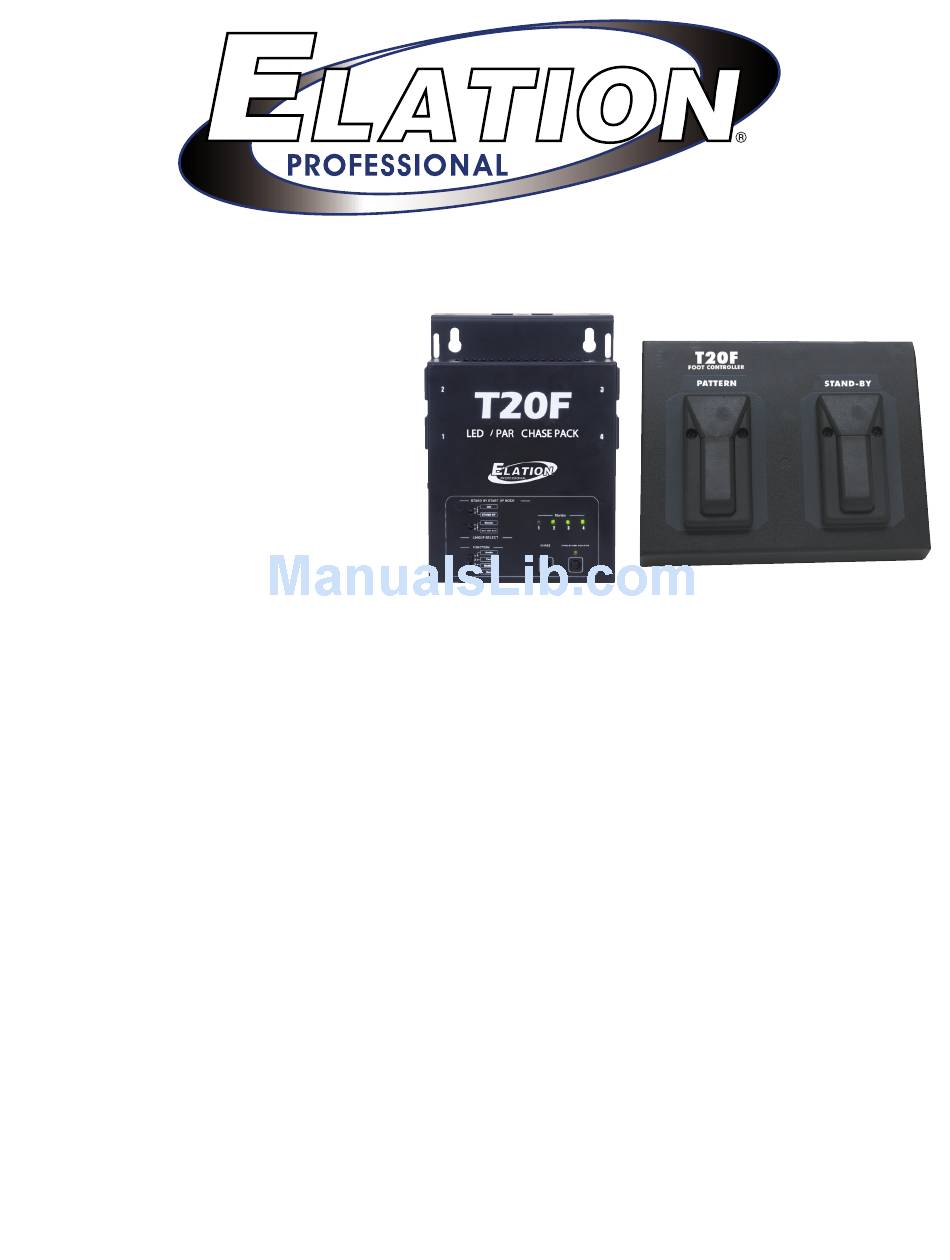

T20F

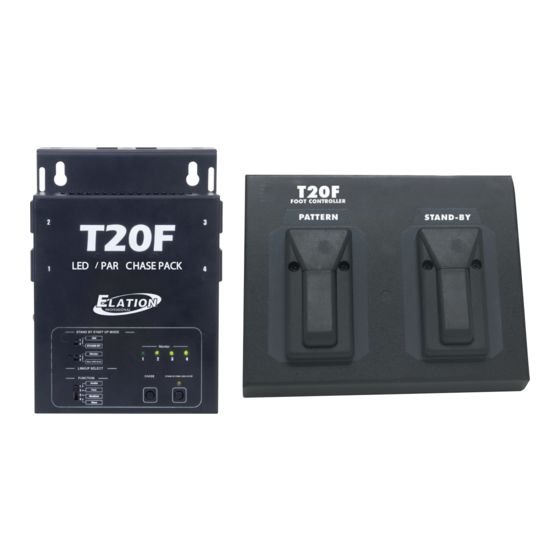

T20F:
• 4 Channel Chase Control Pack
• 20 Built-In Programs:
10 Normal Chase Program
10 Chase Programs with Fade Time
• 7 Pre-Set Scenes
• 4 Chase Operating Modes: Sound
Activation, Slow, Medium, or Fast
T20F "Foot Controller":
• Chase Selection
• Stanb By (Blackout)
Buttons and Switches:
1. Stand By (Blackout) Selector Switch - Use this switch to activate and deactivate blackout mode.
2. Master/Slave Selector Switch - Use this switch to select either master or slave in a master/slave
configuration.
3. Chase Mode Selector - This is used to select Audio/Fast/Medium/Slow mode for the chases.
4. Channel LED - These LEDS indicate the intensity of the corresponding channel or activity of the
pattern or scene.
5. Stand By (Blackout) Button: This button has diffferent functions. In Master mode, tap this button
to activate or deactivate Stand By (Black Out) (its LED flashes when Stand By is active). Press this
button for three seconds to activate one of 20 chase modes (10 fade chases or 10 random) or 7 fixed
scenes. When chase patterns are activated, each tap of Pattern button will select a chase pattern.
When the pre-set scenes are activated, each tap of Pattern button will forward a scene step by step.
6. Pattern Button: In Master mode, use this button to select chase patterns or programs.
Universal DMX Control: This function allows you to use a Elation® universal DMX-512 controller to
control the different scenes and modes. A DMX controller allows you to create unique programs tai-
lored to your individual needs.
1. The T20F is a four channel DMX fixture. See the chart on the reverse side for a description of the
DMX traits.
2. Put the Master/Slave switch into the Slave position. There is no need to set a DMX address, as
soon as you connect the DMX controller to the T20F the T20F will be assinged the DMX address
of 1. When DMX mode is active the Stand By LED will glow.
3. For help operating in DMX mode consult the manual included with your DMX controller.
LED/PAR CHASE PACK
