PROPER USAGE – POWR-STICK OPERATION
12. CHECK HEIGHT ADJUSTMENT OPERATION
– Connect top end of Powr-Stick to receptacle on
bottom of height adjustment frame. Note that the
control knob must be facing the playing court in
order for the Powr-Stick to engage properly in the
receptacle. See Detail "F". Operate unit down to
the 8'-0" goal height, then back up to 10'-0".
13. Give the Powr-Stick and this instruction booklet
to the customer. Demonstrate the operation of the
unit. Make the customer aware of the Cautions,
the Warnings, and the Maintenance requirements
listed on Page 16 and 17.

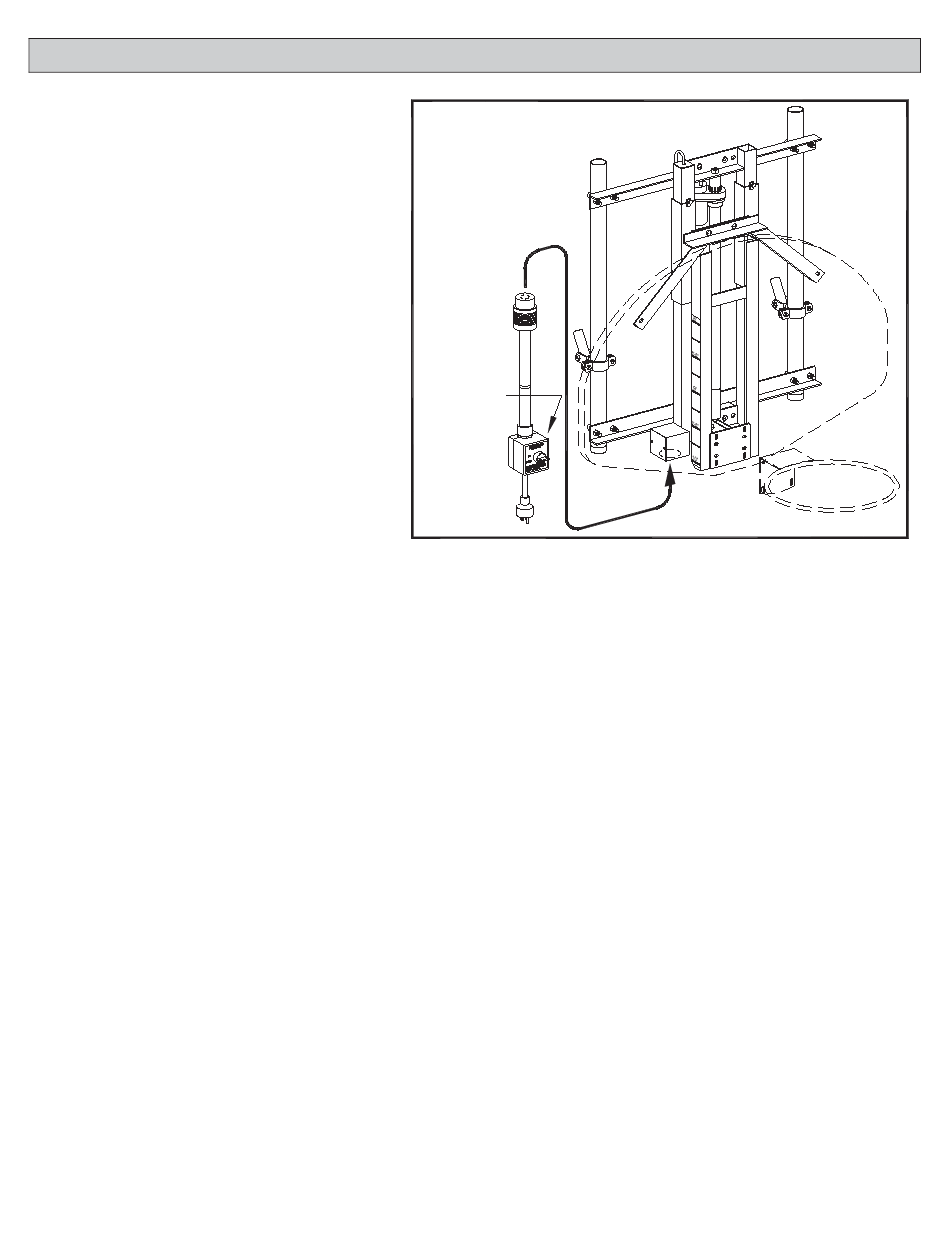

Detail "F"
Control knob
must be facing
playing court
when plugging
Powr-Stick
into receptacle
13
