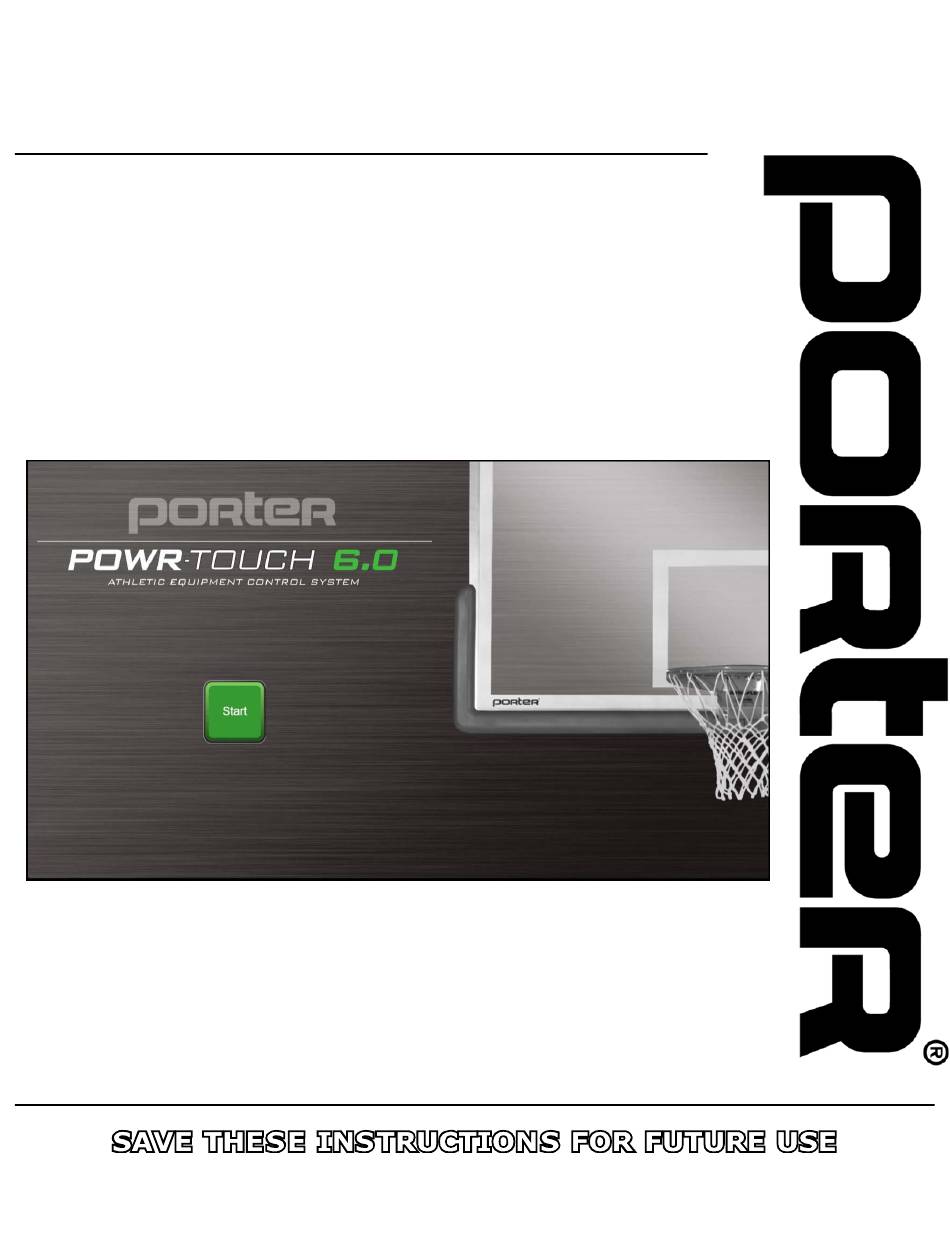

- Page 1 INST12600 8/11/2023 Powr-Touch 6 Item No.’s: 12600-216, 12600-232, 12600-248, 12600-264, 12600-316, 12600-332, 12600-348, 12600-364 Operation Manual © 2022 PORTER ATHLETIC, INC. ALL RIGHTS RESERVED...
- Page 2 Owner’s/Architect’s specification. Care has been taken to fabricate and install this equipment to provide years of safe, satisfactory use and trouble free service. The key to satisfactory service is proper operation and care. Should any malfunctions occur, please notify your supervisor and call your local Porter Dealer or Representative.
-
Page 3: Table Of Contents
OPERATION AND MAINTENANCE MANUAL TABLE OF CONTENTS Page No. Description ..Guarantee OPERATION MANUAL ..System Access ..System Log-on . -
Page 4: System Access
SYSTEM ACCESS Use a device on the same network as the Powr-Touch 6. A wireless device (such as a tablet or laptop) connected to the primary local wifi network should be sufficient. A hardwired device (such as a desktop PC) is also appropriate, as long as it is possible to see all equipment from the location of the PC operator. -
Page 5: System Log-On
SYSTEM LOG-ON To log onto the Powr-Touch 6 system, touch “Start”. You will be taken to the screen where you can enter your access passcode. The default passcode is “01234”. Also on this page is the Caution regarding equipment use. -
Page 6: How To Control Equipment
HOW TO CONTROL EQUIPMENT To move equipment, each piece must be programmed using the arrow dashboards. Green arrows raise/lower the equipment from the ceiling. ▪ Blue arrows adjust the playing height of the equipment ▪ (only active if the equipment is already lowered). Yellow indicates the equipment will “hold”... -
Page 7: Court Page Control Buttons
COURT PAGE CONTROL BUTTONS The “Clear All Selections” button resets all arrow dashboards to the “HOLD” position (yellow). The “Back” button takes you back to the “Lobby”. Once back in the “Lobby”, the “Settings” button is available. It takes you to an Administration Page to configure your system. - Page 8 Similarly to the Equipment Use Tracker, the system will alert you by turning the settings button red when there is an error in the system. The Powr-Touch 6 can detect wiring issues like miss- ing neutrals or absence of power due to issues like tripped circuit breakers. Details are dis- played on the Alarms page.
-
Page 9: Admin Settings
ADMIN SETTINGS Admin Login The default passcode for the ADMIN functions is 56789. Once you have logged in, you will see the Admin menu. - Page 10 Allows user to reset the Equipment Use Tracker alarms and adjust time between alarms. User Management Allows a new Passcode to be set for either the User or the Admin. Contact your Porter repre- sentative in the case of a lost or forgotten passcode. Passcodes may be up to 12 numbers.
-
Page 11: Programming Quick Courts
PROGRAMMING QUICK COURTS You may program up to 7 Quick Courts per zone. To program a Quick Court, hold on the Quick Court button that you wish to program for 3 seconds. You will be taken to the Programming Page. To set a program, touch each arrow dashboard to toggle the equipment indicator between: down hold... - Page 12 PROGRAMMING QUICK COURTS After completing the programming sequence and returning to the Court Page, the saved Quick Court program can be accessed by simply touching the appropriate “Quick Court” button.
-
Page 13: Equipment Icon Key
EQUIPMENT ICON KEY Backstop Curtain Overhead Volleyball Indoor Batting Cage Mat Mover... - Page 14 Make sure the equipment is selected. If it is, make sure the relay is equipment. activated when the slider is moved. Screen shows PLC connection Power cycle the panel by flipping the breaker labeled “120V”. error. If you experience any problems that you cannot solve, please contact Porter at Powrtouch5@porterathletic.com.
- Page 15 INSTALLER NOTES...
