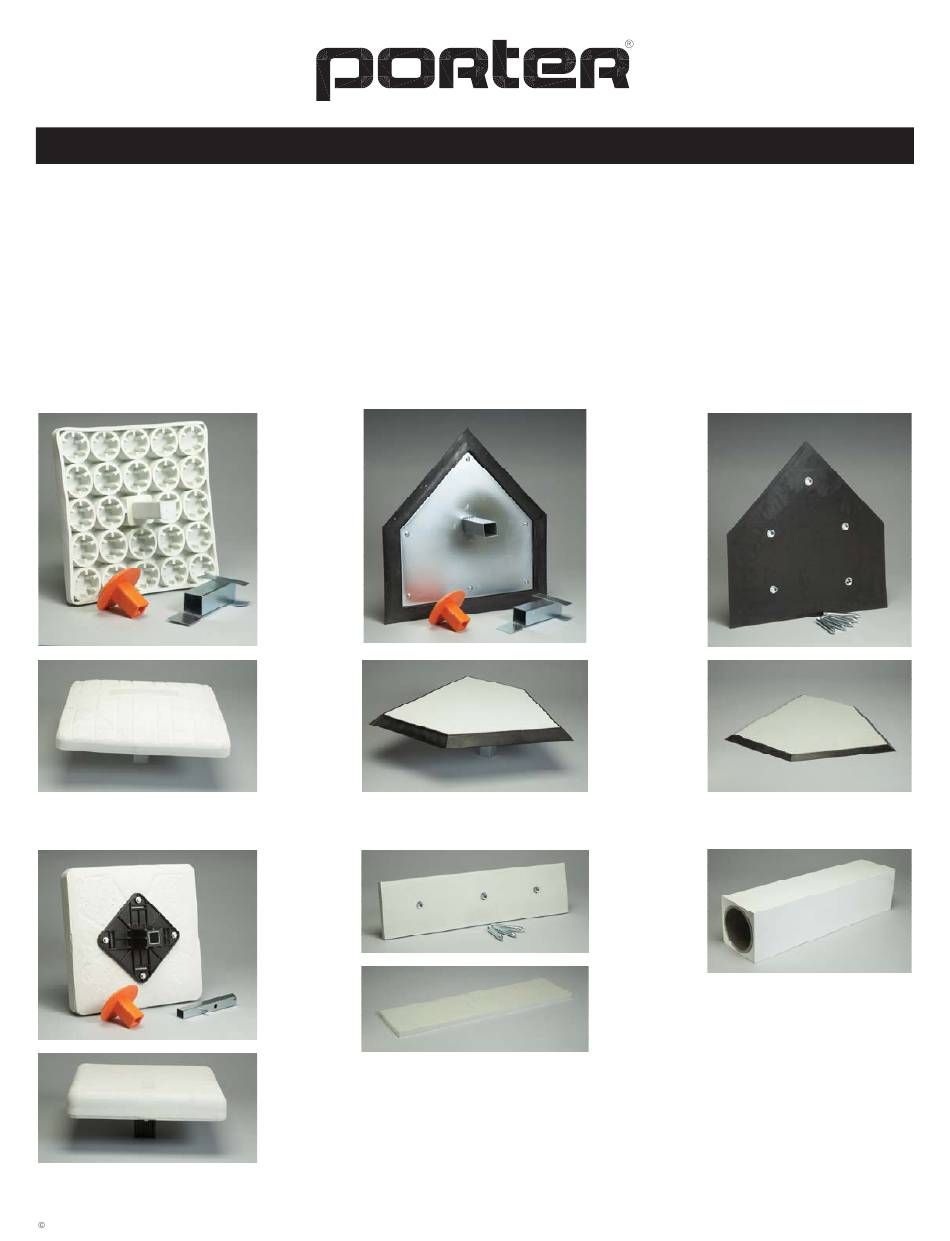

I
NSTALLATION
BASEBALL BASE w/ ANCHOR & PLUG
BASEBALL BASE w/ ANCHOR & PLUG
Porter No. 33211
Porter No. 33210
2008 PORTER ATHLETIC, INC. ALL RIGHTS RESERVED.
, O
PERATION
HOME PLATE w/ ANCHOR & PLUG No. 33200
HOME PLATE w/ SPIKES No. 33201
PITCHERS' PLATE w/ SPIKES No. 33221
Porter No. 33200
Porter No. 33221
& M
AINTENANCE
(SET OF 3)
(SET OF 3)
PITCHERS' PLATE No. 33220
M
ANUAL
No. 33210
No. 33211
Porter No. 33201
Porter No. 33220
INST 00447 058
5-1-2008
Advertisement
Table of Contents
Related Manuals for Porter 33200
Summary of Contents for Porter 33200
- Page 1 & M NSTALLATION PERATION AINTENANCE ANUAL HOME PLATE w/ ANCHOR & PLUG No. 33200 HOME PLATE w/ SPIKES No. 33201 BASEBALL BASE w/ ANCHOR & PLUG No. 33210 (SET OF 3) BASEBALL BASE w/ ANCHOR & PLUG No. 33211 (SET OF 3) PITCHERS' PLATE No.
- Page 2 THEY ARE NOT INTENDED TO BE USED IN CONJUNCTION WITH SLIDING ARTS Porter No. 33200 – set of one (1) Home Plate, Anchor Stake and Stake Plug. Porter No. 33201 – set of one (1) Home Plate with five (5) 4" long spikes.
- Page 3 Position plate over footing, install into place with anchor stake sliding over anchor plate on backside of the home plate. The top of the home plate Porter No. 33200 shall be no higher or lower than the level grade. See Detail “A”.
- Page 4 Position base over footing, install into place with anchor stake sliding into anchor plate on backside of base. The top of the baseball base Porter No. 33210 shall be 2” higher than the level grade. See Detail “B”.
- Page 5 Position base over footing, install into place with anchor stake sliding into anchor plate on backside of base. The top of the baseball base Porter No. 33211 shall be 2” higher than the level grade. See Detail “C”.
- Page 6 33201 H LATE W PIKES NSTALLATION ANUAL 1. Determine the type of baseball league that will be playing on the field. The league type will dictate the locations of the bases and field size. If foul line striping, pitchers mound and base location marks are not placed on field, reference the onsite plans or consult the general contractor.
- Page 7 33221 P ITCHERS LATE W PIKES NSTALLATION ANUAL 1. Determine the type of baseball league that will be playing on the field. The league type will dictate the locations of the bases and field size. If foul line striping, pitchers mound and base location marks are not placed on field, reference the onsite plans or consult the general contractor.
- Page 8 33220 P ITCHERS LATE NSTALLATION ANUAL 1. Determine the type of baseball league that will be playing on the field. The league type will dictate the locations of the bases and field size. If foul line striping, pitchers mound and base location marks are not placed on field, reference the onsite plans or consult the general contractor.
