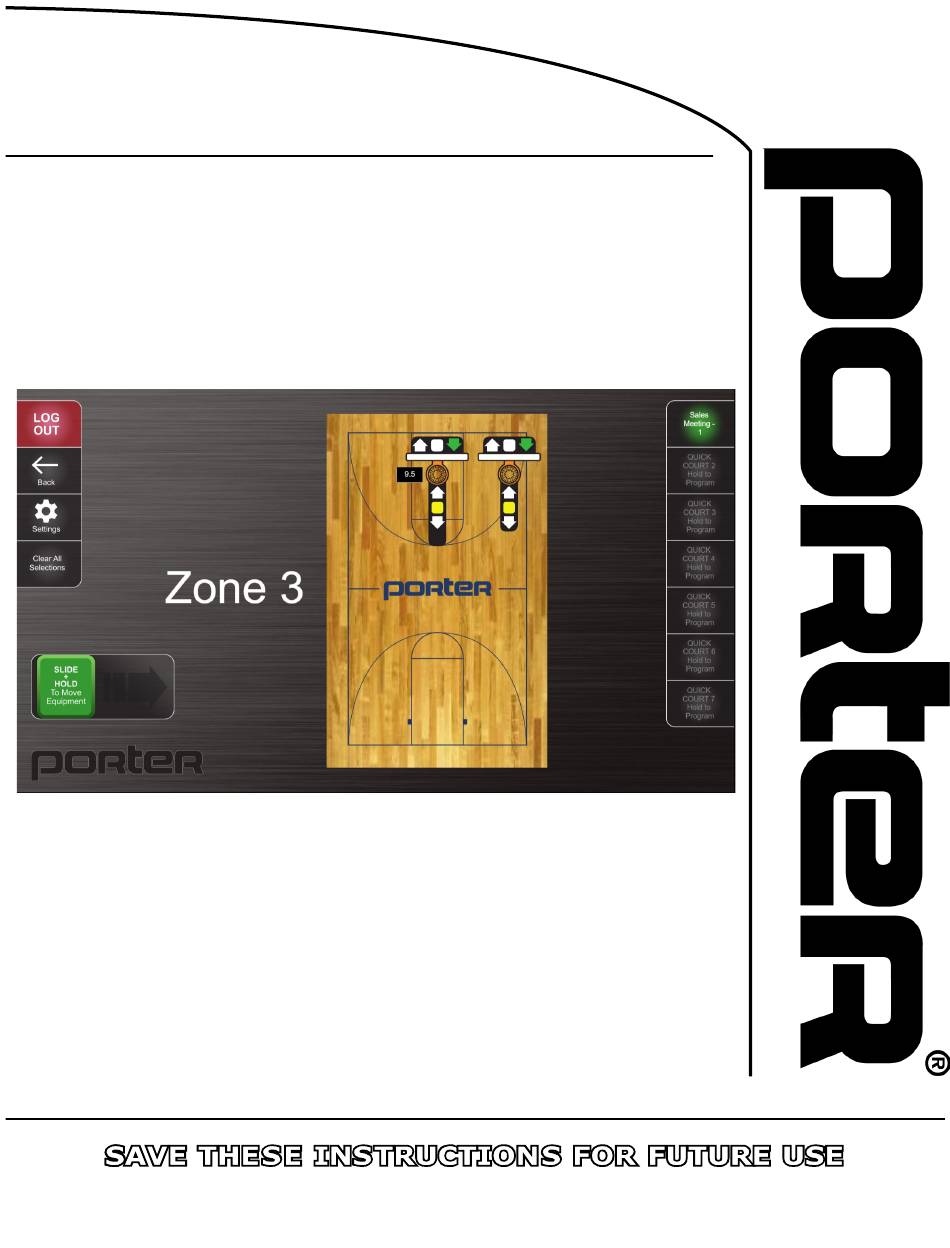

INST12600100
2/16/2022
Powr-Touch 6
Item No.'s:
12600-016, 12600-032, 12600-048, 12600-064,
12600-116, 12600-132, 12600-148, 12600-164,
12600-216, 12600-232, 12600-248, 12600-264,
12600-316, 12600-332, 12600-348, 12600-364
Installation Guide
© 2022 PORTER ATHLETIC, INC. ALL RIGHTS RESERVED
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powr-Touch 6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Porter Powr-Touch 6

  • Page 1 INST12600100 2/16/2022 Powr-Touch 6 Item No.’s: 12600-016, 12600-032, 12600-048, 12600-064, 12600-116, 12600-132, 12600-148, 12600-164, 12600-216, 12600-232, 12600-248, 12600-264, 12600-316, 12600-332, 12600-348, 12600-364 Installation Guide © 2022 PORTER ATHLETIC, INC. ALL RIGHTS RESERVED...
  • Page 2 Owner’s/Architect’s specification. Care has been taken to fabricate this equipment to provide years of safe, satisfactory use and trouble free service. The key to satisfactory service is proper installation, operation and care. Should any malfunctions occur, please notify your supervisor and call your local Porter Dealer or Representative.
  • Page 3 This manual for the Powr-Touch 6 is meant to serve as a general guideline only for the safe installation of this product. Variables must be taken into consideration which are outside of Porter's control. It is Porter's explicit requirement that this product be installed in a safe and secure manner.
  • Page 4 TABLE OF CONTENTS OVERVIEW OF MANUAL ................. 5 INVENTORY AND TOOLS ................ 6 INSTALLATION INSTRUCTIONS ............. 7 TROUBLESHOOTING GUIDE ..............9 SAMPLE DRAWINGS ................10...
  • Page 5: Safety Instructions

    This manual is meant to serve as a general guideline for the safe installation and use of this product. Variables outside the control of Porter must be taken into consideration, with the explicit requirement that installation and maintenance are performed in a safe and secure manner. Any deviation from Porter provided installation documents without written consent will void all warranties.
  • Page 6 FAILURE TO COMPLY WITH THE FOLLOWING INSTRUCTIONS AND WARNINGS MAY RESULT IN SERIOUS INJURIES AND/OR PROPERTY DAMAGE. This manual has been prepared to assist you with the installation of the Porter Powr-Touch 6. We recommend that you read this manual in its entirety to become familiar with Powr-Touch 6 system before attempting installation.
  • Page 7: Inventory And Inspection

    Failure to report shortages or hidden freight damage directly to Porter’s Customer Service Department within three working days will place the financial burden for the missing or replacement parts with the installer or general contractor.
  • Page 8 1. Unpack and check all parts and verify quantities with packing list. Verify the location of electrical breakers, equipment wiring, and location(s) for installation of Powr-Touch 6 panel(s). 2. Mount Powr-Touch 6 panel to building per contract documents and local code provisions. Panel includes brackets for surface mounting. Anchoring hardware shall be provided by others, as...
  • Page 9 CONNECTION OF EQUIPMENT WIRING TO PANEL 1. Drill into Powr-Touch 6 panel for wiring. Refer to panel documentation for allowable penetration areas. 2. Run power from source and up/down out to equipment units. 3. Use wiring diagram, electrical drawings, and other project documentation to land wires appropriately on the panel’s...
  • Page 10 CONNECTION OF CONTROLLER 1. Connect the Ethernet cables to the router from the facility network. In the first panel, connect the Ethernet in to the first port of the router. If there is a second panel connect the Ethernet from switch in the first panel to the switch in the second panel.
  • Page 11 10. Use your internet capable device to connect to the “PowrTouch6” wifi network. You must be within 200ft of the panel to access the network. You may need to disable your device’s data access temporarily while initially connecting to the Powr-Touch 6 system. 11. Enter “https://192.168.10.5” into your browser (Chrome is preferred).
  • Page 12 CONNECTION TO THE SYSTEM SOFTWARE 13. Click the “Start” button to enter the system. 14. Read and make sure you agree with the instructions in the Caution box. 15. Login to the system using the passcode “01234”. 16. Use the graphic interface to operate equipment and check for accuracy of installation. Test each piece of equipment in each direction and ensure that relays activate properly and equipment runs as expected.
  • Page 13: Troubleshooting Guide

    If you experience any problems that you cannot solve, please contact your Porter representative. Updated service contact information is available via link in the Settings page of the Powr-Touch 6 application.
  • Page 14 SAMPLE UNIT MAP...
  • Page 15 SAMPLE FIELD WIRING DIAGRAM...
  • Page 16 SAMPLE SUB-PANEL LAYOUT...
  • Page 17 THIS WARNING IS GIVEN IN COMPLIANCE WITH CALIFORNIA’S PROPOSITION 65: WARNING This product contains chemicals known to the State of California to cause cancer, birth defects THIS PRINT IS THE PROPERTY OF PORTER ATHLETIC EQUIPMENT COMPANY AND MAY NOT BE REPRODUCED WITHOUT WRITTEN PERMISSION...
  • Page 18: Installer Notes

    INSTALLER NOTES...
