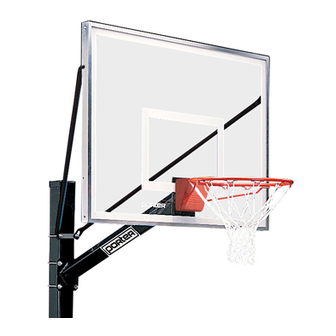

CHAMPIONSHIP GOAL ASSEMBLY/MOUNTING INSTRUCTIONS
THIS PRODUCT IS DESIGNED FOR THE "SLAM DUNK SHOT" ONLY WHEN MOUNTED TO A DIRECT–MOUNT UNIT.
NEVER HANG FROM THE GOAL. HANGING FROM THE GOAL MAY BEND THE GOAL AND VOID THE WARRANTY.
THIS GOAL SHOULD NEVER BE USED AND IS NOT WARRANTED FOR USE ON ANY OTHER MANUFACTURER'S
BACKBOARD THAT DOES NOT ALLOW FULL GOAL PLATE SUPPORT ON A DIRECT GOAL ATTACHMENT THROUGH
THE BACKBOARD AND INTO THE POLE EXTENSION ARM. THIS ITEM IS FOR HOME USE ONLY AND IS NOT INTENDED
FOR USE ON SCHOOL OR PUBLIC PLAYGROUNDS.

WARNING

NEVER HANG FROM THE GOAL.
DO NOT WEAR RINGS OR OTHER JEWELRY WHEN
PLAYING ON THIS UNIT.
ALL PLAYERS MUST WEAR A MOUTH GUARD WHILE
PERFORMING DUNKING MANEUVERS.
THE OWNER OF THIS EQUIPMENT IS RESPONSIBLE FOR
THE PROPER MAINTENANCE AND MUST WARN ALL
INDIVIDUALS AS TO THE SAFE AND PROPER USE OF THIS
EQUIPMENT TO AVOID INJURIES OR PROPERTY DAMAGE.

• STEP NO. 1

Match up goal mounting holes on backboard with mounting
holes on goal back-up plate (3). Assemble goal back-up plate
(3) and finger guard (4) to backboard and extension arm
using two 5/16" x 2-1/4" lg. bolts (6) and 5/16" hex nuts (8)
through two bottom holes of the backboard and mounting
plate. DO NOT tighten bolts at this time. SEE DETAIL "A".
• STEP NO. 2 (See Detail "B")
Remove peel strip from three strips of foam tape (11) and
carefully attach to backside of attachment plate of goal (1) in
positions shown in Detail "B". Locate bottom two holes in
goal assembly (1 and 11) over bolt head making sure plate fits
in formed part of goal back-up plate (3) and assemble as
shown.
Porter Athletic Equipment Company, 2500 South 25th Avenue, Broadview, IL U.S.A. 60155
©1995 Porter Athletic Equipment Company. All Rights Reserved.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Phone:(708) 338-2000 Toll Free:(800) 947-6783
WARNING
Item
No.
Qty. Description
1
1
2
1
3
1
4
1
5
1
6
2
7
2
8
4
9
2
10
2
11
3
• STEP NO. 3 (See Detail "C")
Assemble spring shock absorber (10) to the top hole in goal
(1) using 5/16" x 5-1/2" lg. bolt (7), concave washer (9) and
5/16" hex nut (8). Repeat assembly for other top hole. Level
backboard and goal using carpenter's level. Tighten bottom
two nuts securely. Tighten top two nuts to desired flex of goal.
The top two nuts, however, should not be over-tightened.
• STEP NO. 4 (See Detail "D")
Attach finger guard cover (5).
A. Position slots in finger guard cover (5) over goal brace.
B. Press top of finger guard cover (5) in, to snap lock into
position under no-tie net attachment on goal (1).
Attach net (2) to goal (1).
www.porter-ath.com
1

PARTS PACKING LIST

Goal
Nylon Net (not shown)
Goal Back-Up Plate
Finger Guard
Finger Guard Cover
5/16" x 2-1/4" Lg. Bolt
5/16" x 5-1/2" Lg. Bolt
5/16" Hex Nut
Concave Washer
Spring Shock Absorber
Foam Tape
INST 00200 015
1-1-95
