TOOLS NEEDED:
•
5/16" HEX KEY
•
5/32" HEX KEY
•
SOCKET WRENCH
•
1" SOCKET
•
#2 PHILLIPS SCREWDRIVER
•
ONE OF THE FOLLOWING:
•
9/16" SOCKET
•
9/16" CRESCENT WRENCH
•
ADJUSTABLE CRESCENT WRENCH
THIS GOAL UTILIZES BOTH BREAKAWAY AND FLEX FEATURES IN A FULL 180 TO DELIVER
TOP PERFORMANCE FOR EVERY LEVEL OF BASKETBALL. FOLLOW THE INSTRUCTIONS
PROVIDED IN THIS MANUAL TO ADJUST THE BREAKAWAY FORCE (WHICH IS THE AMOUNT
OF FORCE REQUIRED TO MAKE THE RIM START TO FLEX) OR THE RIGIDITY OF THE RIM
(AS CAN BE TESTED WITH PORTER'S FAIR-COURT SYSTEM
DIVISION 1 LEVEL OF PLAY).
INSTALLATION
MOUNTING HARDWARE IS PROVIDED WITH THE GOAL. DUE TO THE GOAL'S UNIQUELY
DESIGNED MOUNTING PLATE, MOUNTING HARDWARE CAN BE LOOSELY INSTALLED PRIOR
TO MOUNTING OF THE GOAL TO SPEED UP THE INSTALLATION PROCESS. ONCE THE
GOAL IS MOUNTED, ENSURE ALL HARDWARE IS SECURELY TIGHTENED DOWN BEFORE
THE GOAL IS USED. FOLLOW THE MOUNTING DIAGRAM SHOWN ON THE NEXT PAGE.
Copyright 2019 by Porter Athletic.
All rights reserved.

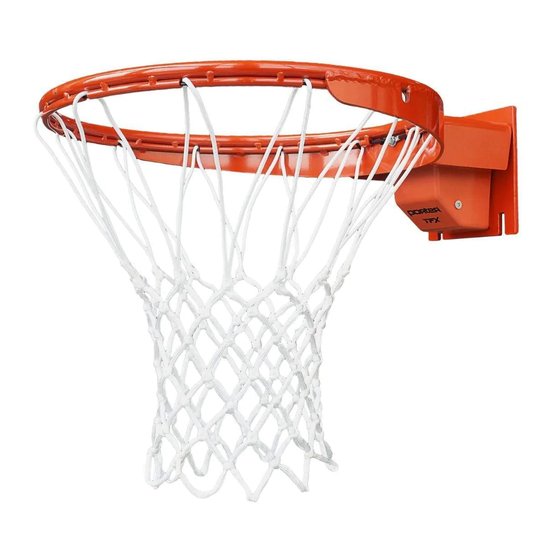

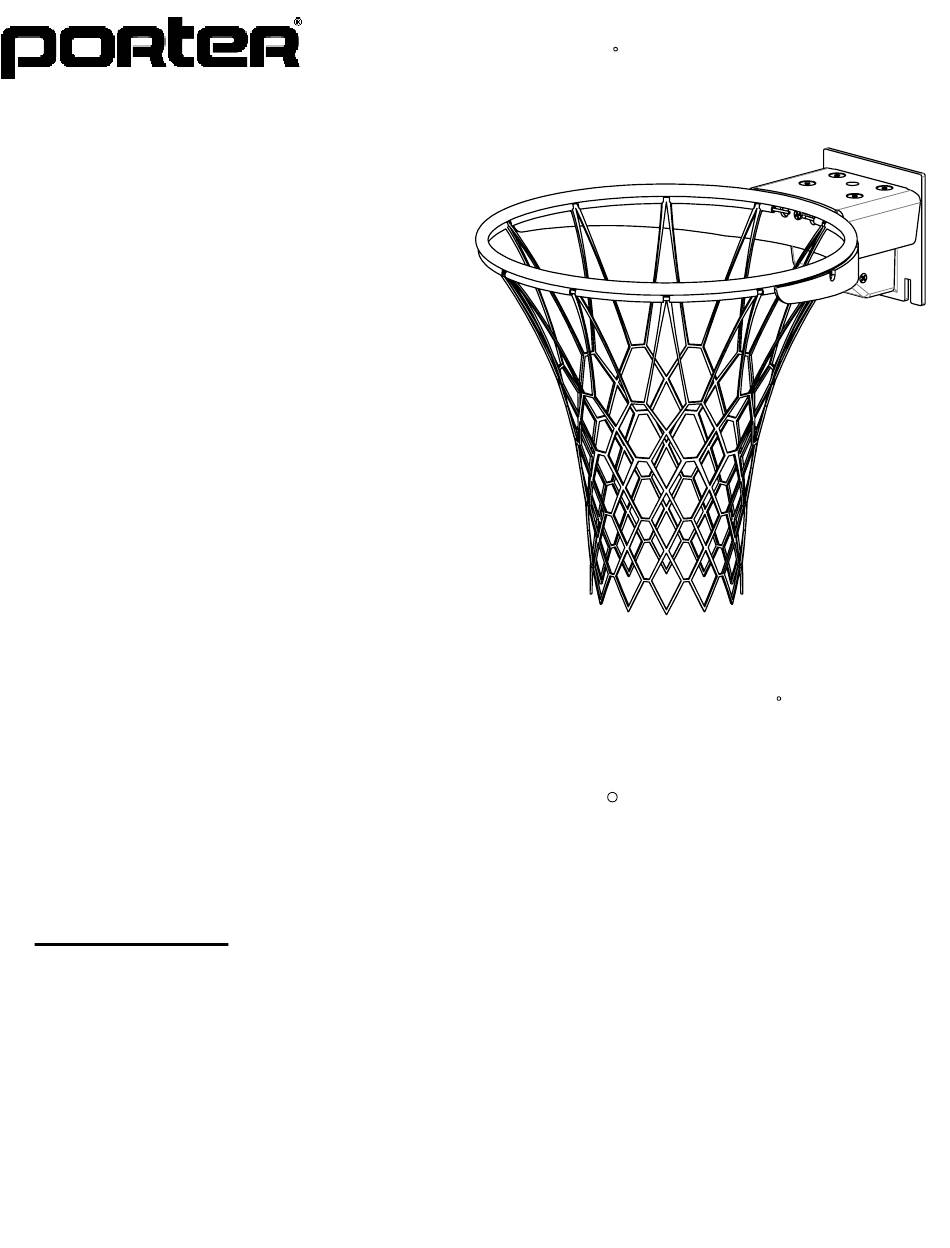

PORTER TFX 180 BREAKAWAY AND FLEX GOAL
GOAL INSTALLATION AND ADJUSTMENT INSTRUCTIONS
AND IS REQUIRED FOR NCAA
R
280180
9/10/2019
INST280180
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Porter 280180
Summary of Contents for Porter 280180
- Page 1 PROVIDED IN THIS MANUAL TO ADJUST THE BREAKAWAY FORCE (WHICH IS THE AMOUNT OF FORCE REQUIRED TO MAKE THE RIM START TO FLEX) OR THE RIGIDITY OF THE RIM (AS CAN BE TESTED WITH PORTER'S FAIR-COURT SYSTEM AND IS REQUIRED FOR NCAA DIVISION 1 LEVEL OF PLAY).
- Page 2 280180 PORTER TFX 180 BREAKAWAY AND FLEX GOAL GOAL INSTALLATION AND ADJUSTMENT INSTRUCTIONS www.porterathletic.com 888-277-7778 ITEM NO. PART NUMBER DESCRIPTION QTY. HDWE020790E0 CARRIAGE BOLT; 3/8"-16 X 3-3/4"; ZINC; GRADE 5 HDWE050040E0 FLAT WASHER; 3/8"; ZINC; USS HDWE040020E0 LOCK WASHER; 3/8"; ZINC HDWE030020E0 HEX NUT;...
- Page 3 280180 PORTER TFX 180 BREAKAWAY AND FLEX GOAL GOAL INSTALLATION AND ADJUSTMENT INSTRUCTIONS www.porterathletic.com 888-277-7778 RIGIDITY ADJUSTMENT TO ADJUST THE GOAL RIGIDITY, FIRST USE A #2 PHILLIPS HEAD SCREWDRIVER TO REMOVE THE RUBBER COVER ON THE BOTTOM OF THE GOAL TO EXPOSE THE GOAL'S SPRING MECHANISMS.
- Page 4 280180 PORTER TFX 180 BREAKAWAY AND FLEX GOAL GOAL INSTALLATION AND ADJUSTMENT INSTRUCTIONS www.porterathletic.com 888-277-7778 BREAKAWAY ADJUSTMENT OPENINGS NET TIE ATTACHMENT SCREW BREAKAWAY ADJUSTMENT NO PARTS NEED TO BE REMOVED FROM THE GOAL IN ORDER TO ADJUST THE BREAKAWAY FORCE OF THE GOAL. SIMPLY INSERT A 5/32" ALLEN WRENCH INTO THE OPENINGS ON EITHER SIDE OF THE NET TIE CORD ATTACHMENT SCREW UNTIL IT FITS INTO THE SOCKET HEAD SET SCREWS INSIDE THE GOAL.
