M-system R5-MS Instruction Manual page 2

Potentiometer input module

Advertisement

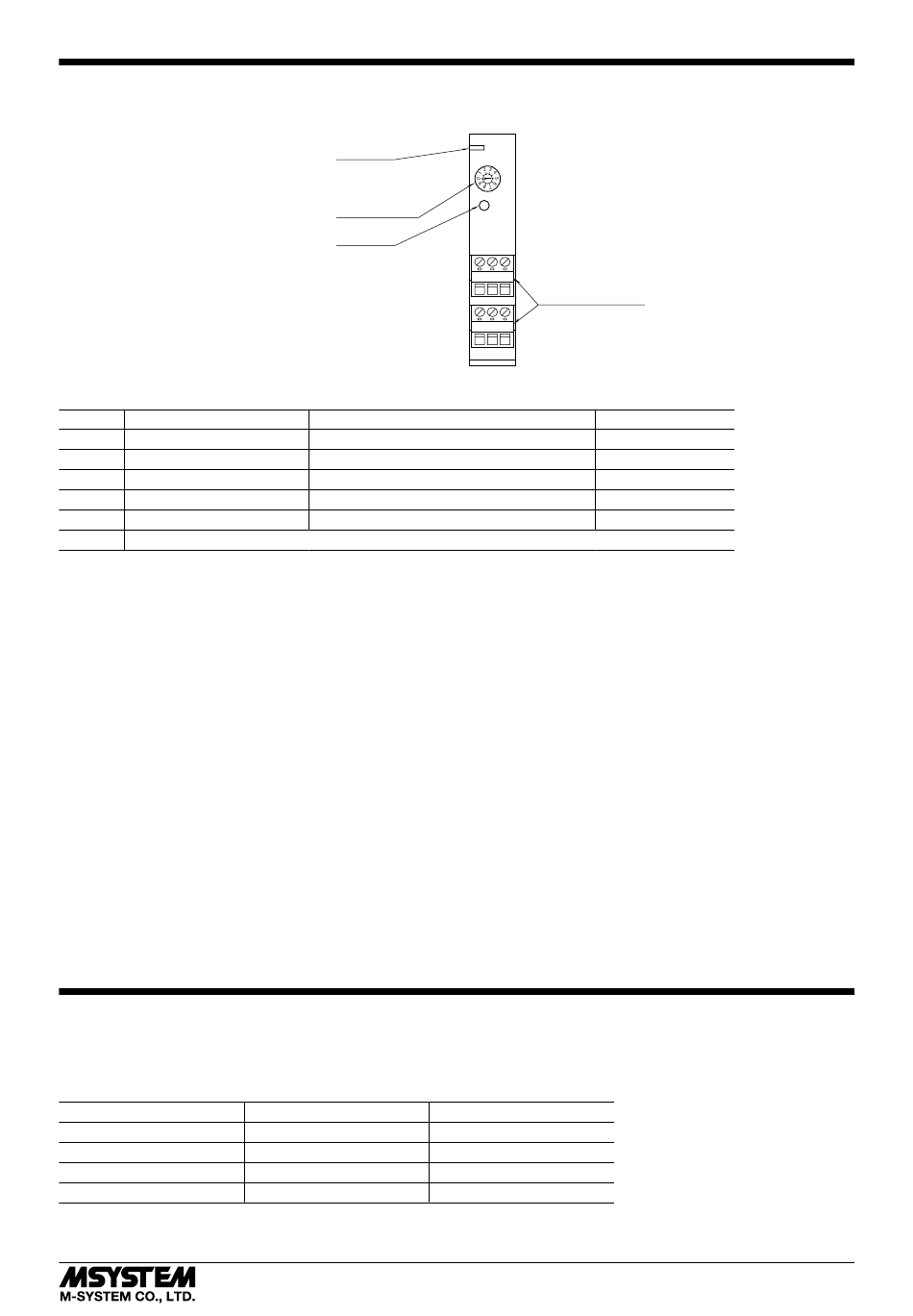

COMPONENT IDENTIFICATION
■ FRONT VIEW
■ ZERO/SPAN ADJ. MODE SELECTOR ROTARY SW
SW
MODE
0 (*)
Run
1
Input 1 0% adjust
2
Input 1 100% adjust
3
Input 2 0% adjust
4
Input 2 100% adjust
5 – 9
Not used
(*) Factory setting
*1. RUN indicator: Bi-color (red/green) LED; Red when the bus A operates normally; Green when the bus B operates normally; Amber
when both buses operate normally.
• Zero/Span Adjustment Modes
Run Mode
Normal operating mode
Input 0% Adjustment Mode
Apply the actual 0% input and press SET.
Input 100% Adjustment Mode
Apply the actual 100% input and press SET.
• How to Operate
1) Start up in Monitor Mode (SW position = 0) and wait for 2 or 3 seconds.
2) Switch to another mode and go through the adjustments.
3) Reset the switch to the position '0' so that the new setting is stored in the internal memory.
• Cautions on the LEDs
1) Mode switching from Run to another mode becomes effective when SET button is touched and the LED for the respective
mode starts blinking after the rotary switch setting has been changed.
2) Mode switching back to Monitor becomes effective automatically in a few seconds after the switch is reset to '0' and is con-
firmed with the LED stopping blinking.
PC CONFIGURATOR
With configurator software, settings shown below are available.
Refer to the software manual of R5CON for detailed operation.
■ CHANNEL INDIVIDUAL SETTING
PARAMETER
Zero Scale
Full Scale
Bias [Zero Adj.]
Gain [Span Adj.]
RUN LED
Zero/Span Adj.
Mode Selector
SET Button
FUNCTION
Output % proportional to the Input %
Apply 0% input at Input 1 and press SET
Apply 100% input at Input 1 and press SET
Apply 0% input at Input 2 and press SET
Apply 100% input at Input 2 and press SET
AVAILABLE RANGE
-32000 to +32000
-32000 to +32000
-320.00 to +320.00
-32000 to +32000
5-2-55, Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
Phone: +81(6)6659-8201 Fax: +81(6)6659-8510 E-mail: info@m-system.co.jp
RUN
SET
4 5 6
Euro Type
Connector Terminals
1 2 3
Red/Green ON *
Red Blinking
Red Blinking
Green Blinking
Green Blinking
DEFAULT SETTING
0
10000
0.00
1.0000
R5-MS
RUN LED
1
EM-6146 Rev.2 P. 2 / 3
