ViziT MK-405 Operating Instruction

Mounting Kit MK
in VIZIT doorphones / video doorphones from sun, rain and snow.
The Mounting Kit has a vandal-proof design.
Weight - 0, 38 kg .

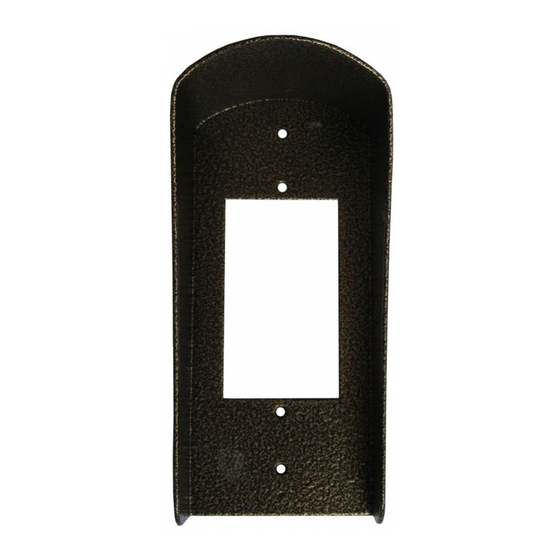

Sun/rain shield
5
www.vizit.eu

MOUNTING KIT FOR DOORSTATION

OPERATING INSTRUCTION
-40 5 protects doorstations BVD-405x / BVD-403x intended for operation
75х171х75

INSTALLATION WITH BVD-403x

4
3
2 3
9 0
2 3
6
OPERATING INSTRUCTION
MK-405

PARTS LIST

Installation Manual
Self-adhesive rubber seal strip
Nail-in anchor with
nail screw 6х60
Sun/rain shield mounting
on a wall
Put marks for holes on a wall.
Use measurements given on Fig.1,
or attach the sun/rain shield to the
wall and use its holes as a pattern.
Drill holes
and 60 mm deep.
Hammer in anchors
Stick self-adhesive rubber seal
strip to the back of the sun/rain
shield.
Attach the sun/rain shield to the wall.
Make sure that its holes match the
anchors in the wall.
Drive in nail screws
6
fix the sun/rain shield to the wall.
Figure 1
х4
(х ) 4 6 mm in diameter
6х60 (х ) 4 .
(х2) to securely
MK-405
1/2
