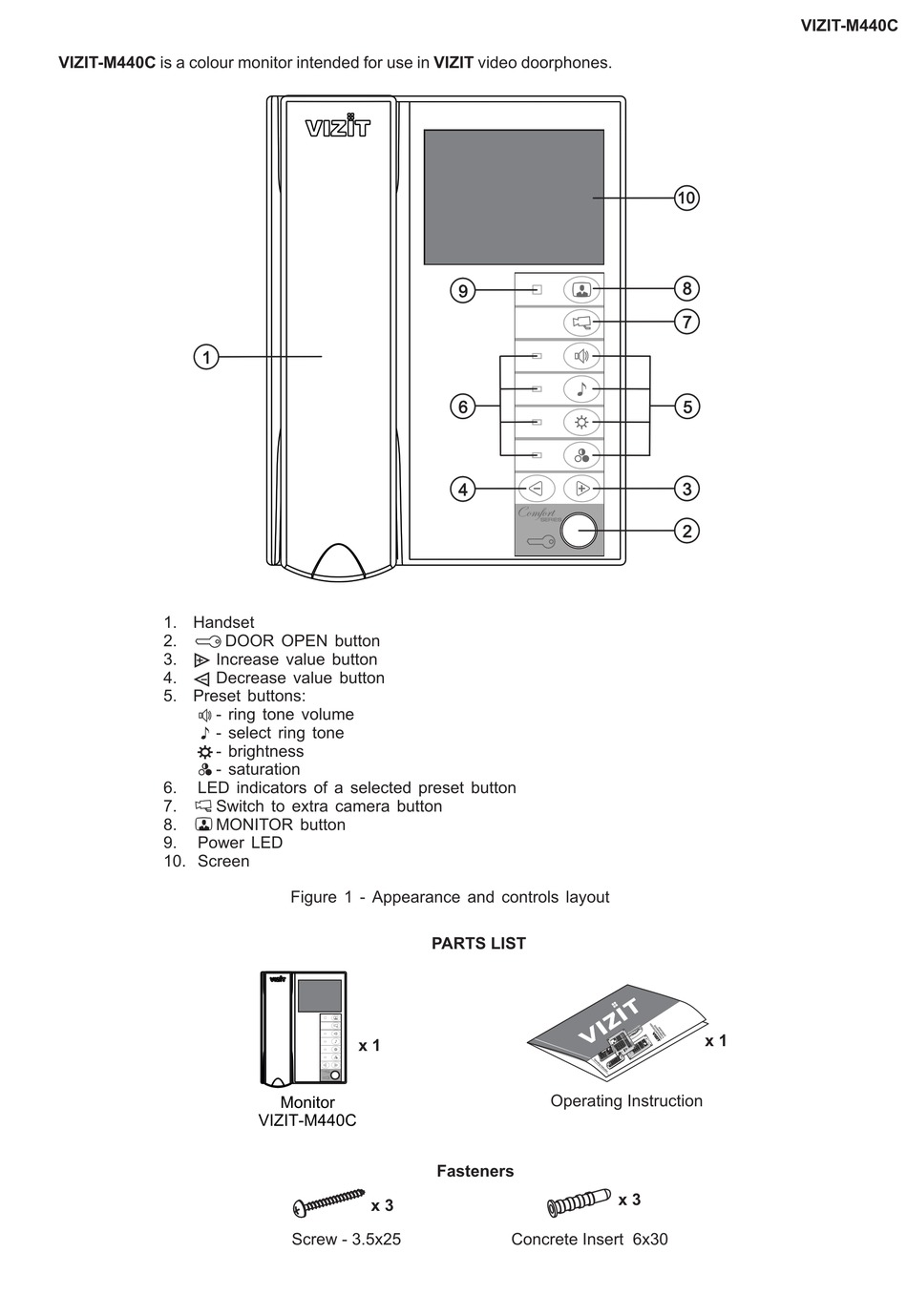

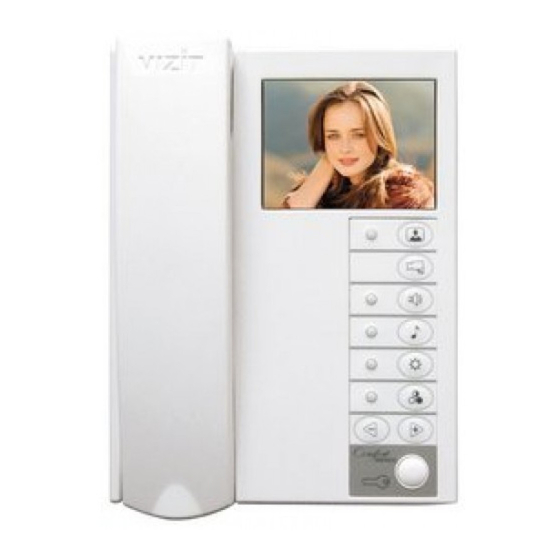

VIZIT-M440C is a colour monitor intended for use in
1
1.
Handset
2
.
DOOR OPEN button
3.
Increase value button
4.
Decrease value button
5.
Preset buttons:
-
ring tone volume
- select ring tone
-
brightness
-
saturation
6.
LED indicators of a selected preset button
7
.
Switch to extra camera button
8.
MONITOR button
9.
Power LED
10.
Screen
Figure
1 -
Appearance and controls layout
x 1
Monitor
VIZIT M
- 440
C
x 3
Screw 3.5 25
-
х
VIZIT
video doorphones.
9
6
4
PARTS LIST
Operating Instruction
Fasteners
Concrete Insert 6х30
10
8
7
5
3
2
x 1
x 3
VIZIT-M440C
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ViziT VIZIT-M440C
Summary of Contents for ViziT VIZIT-M440C
- Page 1 VIZIT-M440C VIZIT-M440C is a colour monitor intended for use in VIZIT video doorphones. Handset DOOR OPEN button Increase value button Decrease value button Preset buttons: ring tone volume - select ring tone brightness saturation LED indicators of a selected preset button...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAUTION ! The Monitor does not contain voltage above Do not perform any connections or repair when the power is on. Take care not to spill any liquids or chemically active substances on the product. Unplug the power supply unit before cleaning the monitor. Clean by wiping with dry soft cloth. Do not use any liquid cleaners, aerosol cleaners or abrasive agents. -
Page 3: Examples Of Wiring Diagrams
BKM-440 operating instruction. Note. If the monitor operates together with the commutator BKM-440, a door bell button connection is not available EXAMPLES OF WIRING DIAGRAMS DC IN MONITOR VIZIT M - 440 Power Supply SA03010029 Door bell 18В, 0.5А DATA... - Page 4 Extra Camera MONITOR 12 V , 0.3 А VIZIT M - 440 Door bell button DATA LINE Colour BVD 410CBL INDIVIDUAL / STOREY POWER SUPPLY DOORSTATION BPD18/12-1-1 ELECTROMECHANICAL LOCK R 10 OHM) Figure 5 Monitor VIZIT-M440C with individual / storey...
- Page 5 INDIVIDUAL / STOREY DOORSTATION INDIVIDUAL / STOREY DOORSTATION BVD-401СВ BVD 406CB LС ELECTROMECHANICAL ELECTROMECHANICAL LOCK R 10 OHM) LOCK R 10 OHM) POWER SUPPLY POWER SUPPLY BPD18/12-1-1 BPD18/12-1-1 Figure Monitor VIZIT-M440C ( as extra device with two individual / storey doorstations...
- Page 6 SETUP Before turning the power on, make sure that there is no misconnection or risk of short circuit. § Turn on the power supply unit or commutator BKM-440. The monitor Power LED (see Fig.1) illuminates with green light. If the Power LED is dim, the monitor is in the sleep mode (calls are ignored, and all buttons except for are disabled).
-
Page 7: Specifications
FUNCTIONAL CHECK AND OPERATION ORDER When a call is made from the doorstation, the monitor rings. Image from the doorstation camera appears on the screen. Pick up the handset and check duplex intercom. During intercom, press to view image from the extra camera (see Fig. 4, 5, 6), if needed.
