ViziT BVD-342 Quick Start Manual

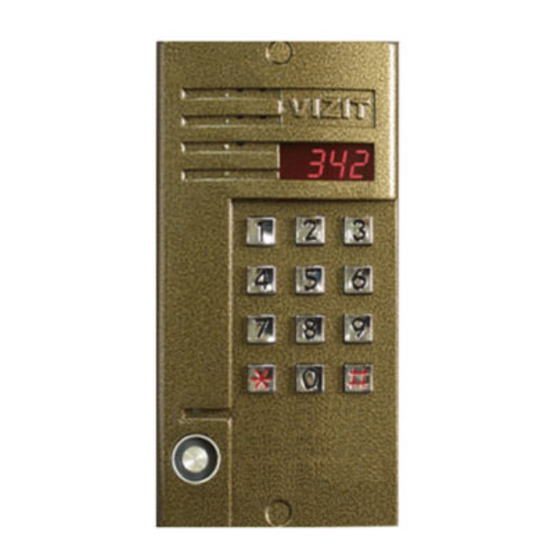

Doorstation BVD-342 with four-digit LED indicator and backlighted keypad is intended for joint operation
with Control Unit BUD-302(M) in multi-apartment doorphones VIZIT, and provides duplex intercom, keypad
codes, TM-keys (iButton) and RF-keys controller's functions.
The following versions of BVD-342 are available:
Name model
BVD -342 RT
BVD-342R
BVD-342T
Abbreviations used in the models names:
R - RF-keys reader, T - TM-keys reader
Content of doorphone system, its features, order of programming and operation are fully described in
BUD-302(M) operating instruction.
Capacity:
Operating voltage, VDC
Power consumption, W max
Dimensions, mm
Weight, kg
Operating conditions
- ambient temperature range
- relative humidity of air
Doorstation BVD-342
Mounting kit
Operating instruction
Package
The rest of equipment needed for multi-apartment doorphones VIZIT is available upon request.
The doorstation does not contain voltage above 18 VDC.
Connect the grounding wire of the doorstation to the protective ground
To avoid damage do not make any connections or repair when the power is on.
ATTENTION!
To maximize the reliability of this product, do not expose it to rain, snow and direct sun rays!
Fix the doorstation on a door or on a wall using the screws supplied. Drive the gags (from the mounting
kit) into mounting holes.
Perform all connections according to the examples of wiring diagrams on Figures 2, 3 and 4.
Recommended wires cross-sections are given in BUD-302 operating instruction.
The first wire in the cable is marked with different colour.
Reader
RFID TM
ü ü
ü
ü

SPECIFICATIONS

PARTS LIST

SAFETY INSTRUCTIONS

INSTALLATION

up to 100 subscribers
15
5
87x171x24
0.6
from -40 up to +50°C;
up to 98% at 25 °C.
1 pc.
1 pc.
1 pc.
1 pc.
BVD-342
