ViziT UKP-12-1 Operating Instruction

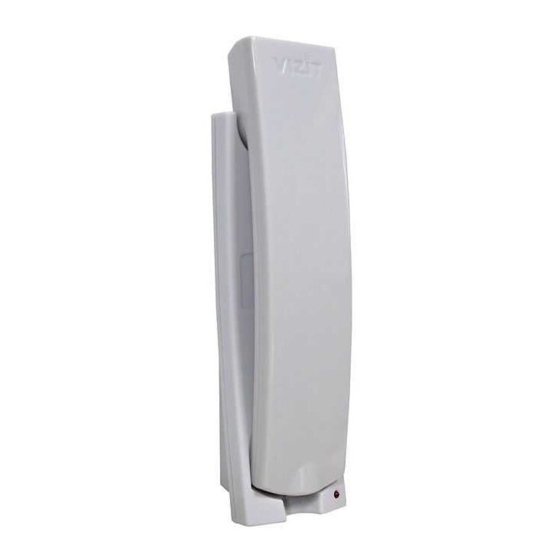

Apartment Handset UKP
Handset
- Connection of an additional handset
- Duplex intercom
- DOOR OPEN button
- Ring volume slide switch
- Call indicator
Dimensions (W)x(H)x(D)
Weight
Ambient temperature range
Relative humidity of air
Handset UKP-12-1
Fastening kit
Operating instruction
The Handset does not contain voltage above
Do not connect the handset to a telephone line!
www. vizit-group.com
OPERATING INSTRUCTION
-12-1 ( the Handset hereinafter) is intended for operation within doorphones
DOOR OPEN
button
Ring volume
slide switch
Base
Call
indicator
to connect commutator / doorstaton
Handset Appearance and Terminals Layout

SPECIFICATIONS

54 х 200 х 40
0 18 .
+ 5 °С
up to
1 pc.
1 pc.
1 pc.

SAFETY INSTRUCTIONS

15 VDC
UKP-12-1 Operating Instruction (revision
Terminals

FEATURES

mm
kg
to + 45 °С
93% at + 25°С

PARTS LIST

.
VIZIT.
Jumper EQV. UKP
Positions :
- UKP - when an additional
handset is connected .
- EQV - when there is no
additional handset .
Terminals
to connect
additional
handset
201 - 5 12)
UKP -12-1
1/ 3
