Operation
Manual
Pan and Cover
A
B
C
D
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of one (2) year from date of original installation
(with the exception of racks, pans, and covers). Any component which
proves to be faulty in material and/or workmanship will be replaced or
repaired (at the option of Prince Castle, Inc.) without cost to the customer
for parts or labor. This warranty covers on location service (i.e. trip
charges and/or mileage). Travel mileage is limited to 100 miles (200
kilometers -International) round trip (one trip warranty) from an
authorized service agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
•
Use of any non-genuine Prince Castle parts voids this warranty.
•
All labor shall be performed during regular work hours. Overtime
premium will be charged to the buyer.
•
Damage caused by carelessness, neglect, and/or abuse (e.g.,
dropping, tampering or altering parts, equipment damaged in
shipment, by fire, flood or an act of God) is not covered under this
warranty.
542-525 Rev. F

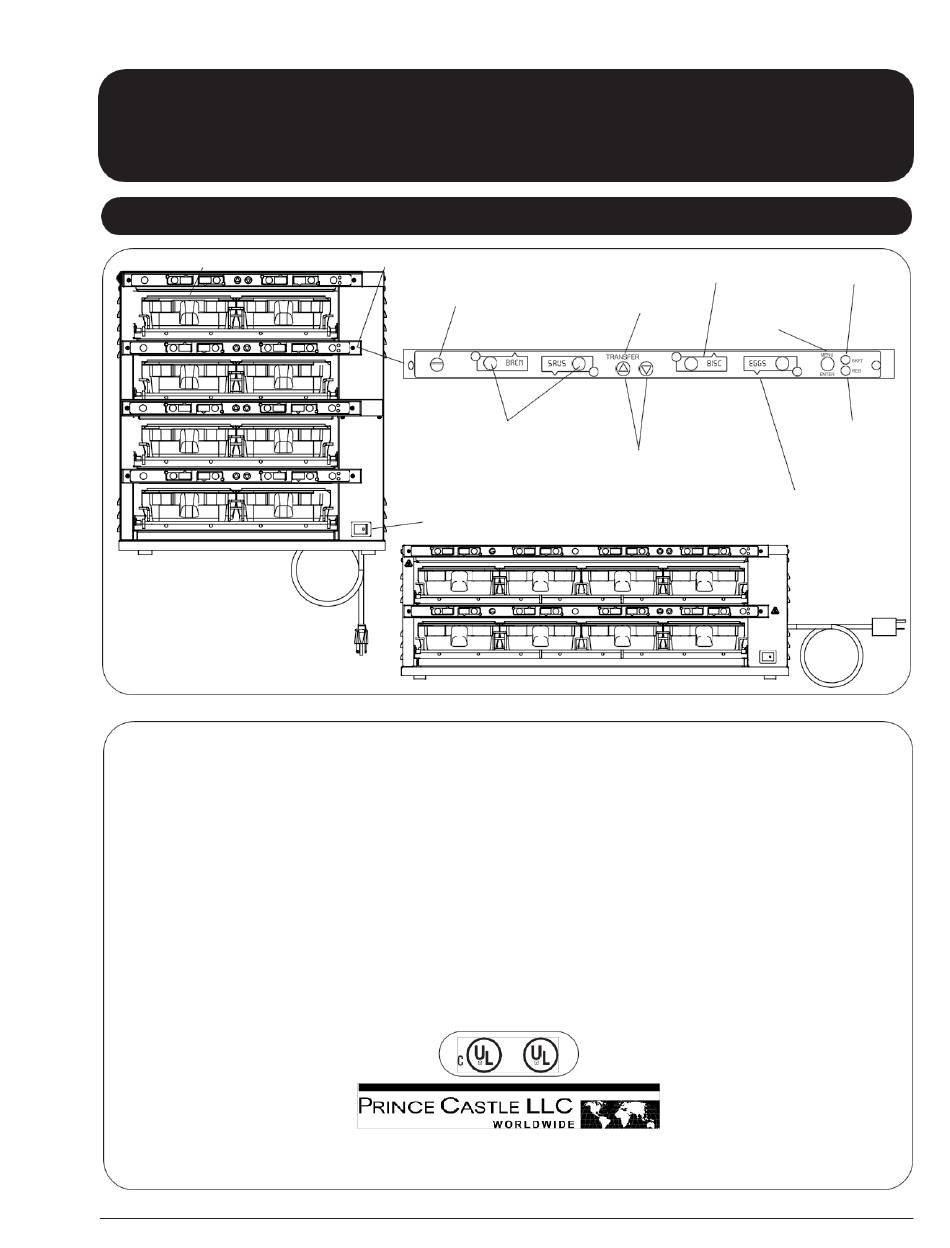

Product Identification
Button Bar
PRINCE CASTLE
LOGO Button
LED Timers (tri-color)
Pan Buttons
Power On/Off Switch
Product Identification .................................................................................. 1
Specifications .............................................................................................. 2
Safety Information ....................................................................................... 2
Installation ................................................................................................... 2
Operation .................................................................................................... 3
Cleaning ...................................................................................................... 4
Programming ...................................................................................... 5 - 14
Troubleshooting .................................................................................15 - 16
Service List and Parts List .................................................................17 - 18
Wiring Diagrams ............................................................................... 19 -
205 Lies Rd. • Carol Stream, IL 60188 USA
Telephone: 630-462-8800 • Toll Free: 1-800-PCASTLE
Fax: 630-462-1460 • www.princecastle.com

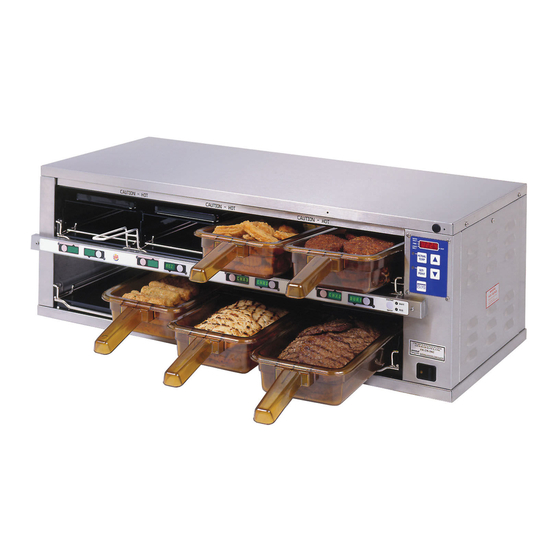

Product Holding Bin
Universal JIB Series
Back Pan Displays
Transfer Button
MENU/ENTER
UP and DOWN Arrow Buttons
TABLE OF CONTENTS
BKFT (Breakfast)
LED
Button
REG (Regular
Menu) LED
Front Pan Displays
21
Printed in USA 07/13 © 2013
Advertisement
Related Manuals for Prince Castle Universal JIB Series
Summary of Contents for Prince Castle Universal JIB Series
-
Page 1: Table Of Contents
Safety Information ..................2 repaired (at the option of Prince Castle, Inc.) without cost to the customer Installation ....................2 for parts or labor. This warranty covers on location service (i.e. trip charges and/or mileage). -
Page 2: Specifications
E. Turn the power switch to ON. Allow 30 minutes for warm-up.n Prince Castle reserves the right to change specifications and product design without notice. Such revisions do not entitle the buyer to corresponding changes, improvements, additions or replacements for previously purchased equipment. -
Page 3: Operation
Product Holding Bin Universal JIB Series Operation Turn power On/Off switch to ON position. Press all PAN buttons (if applicable). Load pan covers (if used) onto pan racks and insert racks into the unit. Allow 30 minutes for heaters to reach operating temperature. -
Page 4: Cleaning
Product Holding Bin Universal JIB Series Operation (continued) When any of the timer LEDs flash, cook more product or remove Product, along with any remaining time, can be transferred and discard product as indicated. from one cavity to another as follows: A. - Page 5 Note: These instructions are only for the bar set to position POSA. On the Main timer bar, press the Prince Castle Logo and the Down Arrow buttons together and release. The displays will show temperature information for the uppermost heater as show in Table 1 below. The temperatures show are examples only.
- Page 6 1. Make sure that there are no timers active by cancelling the time or resetting the machine by turning the unit off then on. 2. Press and hold the Prince Castle Logo button and then press and hold the Menu/Enter button. Hold both for 6 seconds. The display will change.
- Page 7 3. If the actual temperature displayed by the timer bar does not closely match the meter, the displayed temperature can be adjusted as follows. Adjusting the temperature display: 1. On the Main timer bar, press and hold the Prince Castle Logo and Menu/Enter buttons together for 6 seconds. The display will change to program mode.
- Page 8 Product Holding Bin Universal JIB Series Selecting Breakfast and Regular Menus There are three menus available: When the desired menu is displayed, release the MENU/ ENTER button. The food products for the menu will be Breakfast = Menu 1 displayed in the upper and lower PAN displays.
-
Page 9: Programming
A. The SET PRODUCT TIME menu is used to change the Hold and Cook-More times. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of the programming menus. - Page 10 A. The Alternating Display Interval allows the timer bar displays to alternate between the product name and remaining Hold time. The default setting is 5 seconds. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of the programming menus.
- Page 11 A. The EDIT PRODUCT NAME menu is used to change a default product name to one of your own choosing. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of four programming menus.
- Page 12 Set Volume Level A. The default setting for the volume level is OFF. B. Press and hold the PRINCE CASTLE LOGO button, then immediately press and hold the MENU/ENTER button until the display shows one of the programming menus. C. Use the UP or DOWN Arrow button to scroll to the Set Vol 0 ENTR menu.
- Page 13 To change the main timer bar position, press and hold the PRINCE CASTLE LOGO button and the DOWN Arrow button. PRINCE CASTLE LOGO button and the DOWN Arrow button for approximately 6 seconds or until the display shows POSN # $ The current timer bar position will be displayed in the far right timer display as POS X.
- Page 14 Product Holding Bin Universal JIB Series Menus DHB2PT-20UJB & DHB4SS-20UJB Main Timer MNU1 Bkft SCRM SCRM EGGS EGGS MNU2 Fried CSPY CSPY SPCY SPCY MNU3 Grilled REGU REGU JMBO JMBO DHB2PT-33UJB & DHB2SS-33UJB Main Timer MNU1 Bkft SCRM SCRM EGGS...
- Page 15 Product Holding Bin Universal JIB Series Timer Bar Positions on Bins DHB4PT-20UJB & DHB4SS-20UJB DHB2PT-33UJB & DHB2SS-20UJB Four cavity bin with four 4-channel timer bars: Two cavity bin with two 8-channel timer bars: Timer Bar Position A, Address1 Timer Bar Position A, Address 1...
-
Page 16: Troubleshooting
Universal JIB Series Special Programming Mode A. Press and hold the PRINCE CASTLE LOGO button then immediately press and hold the MENU/ENTER button. Hold both buttons for six seconds. The displays will change to show the first menu — depending on model. - Page 17 Product Holding Bin Universal JIB Series 542-525 Printed in USA 07/13 © 2013...
- Page 18 Product Holding Bin Universal JIB Series Parts List Part No Description 542-435S Kit, Upper Heater Assy (33UJBs) 542-425S Kit, Upper Heater Assy (27UJBs) 542-420S Kit, Upper Heater Assy (20UJBs) 542-430S Kit, Lower Heater Assy (33UJBs) 542-415S Kit, Lower Heater Assy (27UJBs)
-
Page 19: Wiring Diagrams
Product Holding Bin Universal JIB Series Wiring Diagrams DHB2PT-33JB 542-525 Printed in USA 07/13 © 2013... - Page 20 Product Holding Bin Universal JIB Series Wiring Diagrams (continued) DHB2SS-33UJB 542-525 Printed in USA 07/13 © 2013...
- Page 21 Product Holding Bin Universal JIB Series Wiring Diagrams (continued) DHB4PT-20UJB & DHB4SS-20UJB 205 Lies Rd. • Carol Stream, IL 60188 USA Telephone: 630-462-8800 • Fax: 630-462-1460 Printed in USA 07/13 © 2013 Toll Free: 1-800-PCASTLE Prince Castle LLC. www.princecastle.com...
