Prince Castle DHB2PT-60P Operation Manual

O p e r a t i o n
M a n u a l

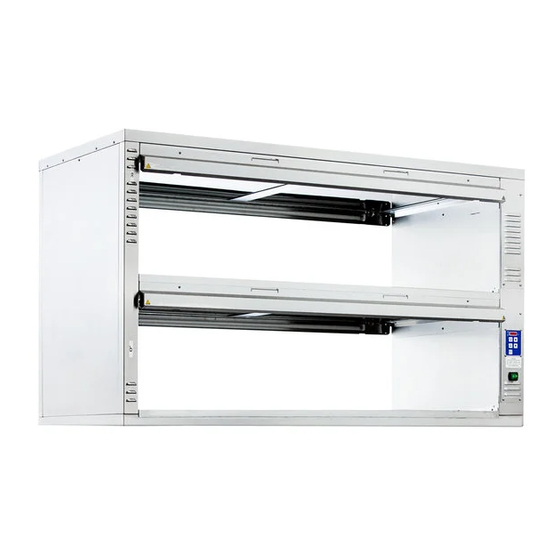

Prince Castle's DHB2PT-60P Chicken Holding Bin is
designed for the Popeyes system to hold all your
bone-in fried chicken better than ever before. Capable of
holding up to 360 pieces of chicken, the DHB2PT-60P is
designed to both hold and merchandise Popeyes'
chicken in a dual line store format.
LIMITED WARRANTY
This product is warranted to be free from defects in material and/or
workmanship for a period of 1 year from date of original installation, not
to exceed 18 months from the date of manufacture.
Any component which proves to be faulty in material and/or workmanship
will be replaced or repaired (at the option of Prince Castle, Inc.) without cost
to the customer for parts and labor. This warranty covers on-location service
(i.e. trip charges and/or mileage). Travel mileage is limited to 100 miles
(200 Kilometers) round trip (one trip warranty) from an authorized service
agency or its sub-service agency.
This warranty is subject to the following exceptions/conditions:
• Use of any non-genuine Prince Castle parts voids this warranty.
• All labor to be performed during regular work hours. Overtime
premium (the incremental amount) will be charged to the customer.
• Damage caused by carelessness, neglect and/or abuse (e.g., dropping,
tampering or altering parts, equipment damaged in shipment, by fire,
flood or an act of God) is not covered under this warranty.
• All problems due to operation at voltages other than that specified on
equipment nameplates are not covered by this warranty. Conversion
to correct voltage is the customer's responsibility.
• This equipment must be serviced by Prince Castle Authorized Service
Agency or a Prince Castle Service Technician during the warranty period.
550-500 RevA_EN
Product Identification
355 East Kehoe Blvd. • Carol Stream, IL 60188
Phone: 630-462-8800 • Toll Free: 1-800-PCASTLE
www.PrinceCastle.com
Popeyes Chicken Holding Bin
