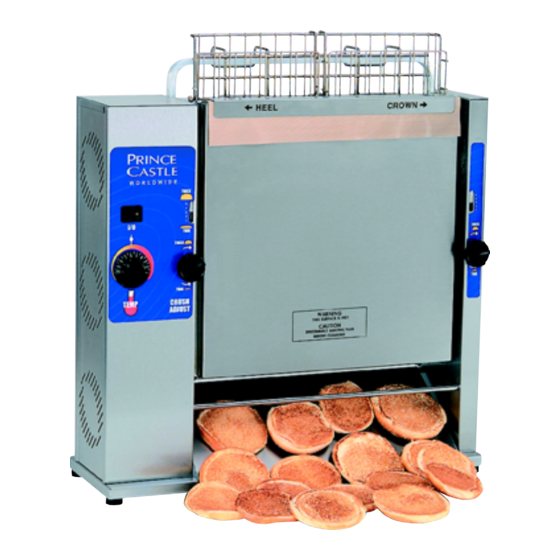

Prince Castle 197-BK Series Operating Instructions Manual

OPERATING
INSTRUCTIONS
INSTRUCTIONS
Vertical Contact Toaster
197-BK, 296 & 297
Series
ELECTRICAL SPECIFICATIONS
Volts Hz
110/120 60
220 50/60
Printed in 2001
Prince Castle Inc. (REV. A)
Watts Amps
1700 15.5
1700 7.39
355 East Kehoe Blvd.
Tel: (630) 462-8800
Toll Free: 1-800-PCASTLE

TABLE OF CONTENTS

Installation .................................................................... 2
Operation ...................................................................... 2
Adjustments ................................................................. 3
Cleaning ....................................................................... 4
Parts List ................................................................... 5-8
Troubleshooting ........................................................... 9
Wiring Diagram ............................................................ 9
LIMITED WARRANTY
This product is warranted to be free from defects in
material and/or workmanship for a period of two (2) years
from date of original installation, not to exceed 30 months
from date of shipment from our factory. Any part or
component which proves to be faulty in material and/or
workmanship within the warranty period will be replaced
or repaired (at the option of Prince Castle, Inc.) without
cost to the customer for parts or labor
This warranty is subject to the following exceptions/
conditions:
Service must be performed by an authorized Prince
Castle Service Center.
Any use of non-genuine Prince Castle spare parts
voids this warranty.
This equipment is portable; charges for on location
service (e. g., trip charges, mileage) are only
included in the provisions of this warranty for
a failure which occurs within 30 days of
installation.
All labor shall be performed during regular working
hours. Overtime premium will not be covered.
Damage caused by carelessness, neglect, and/or
abuse (e.g., using wrong current, dropping, tamper-
ing with or altering electrical components, or improp-
er cleaning) is not covered by the terms of this
warranty. Equipment damaged in shipment, by fire,
flood or an act of God is not covered.
Normal adjustments as outlined in this manual are
not covered under warranty.
Motors that fail due to the lack of monthly
lubrication may not be covered under warranty.
Carol Stream, IL 60188
Fax: (630) 462-1460
PAGE
297-501
