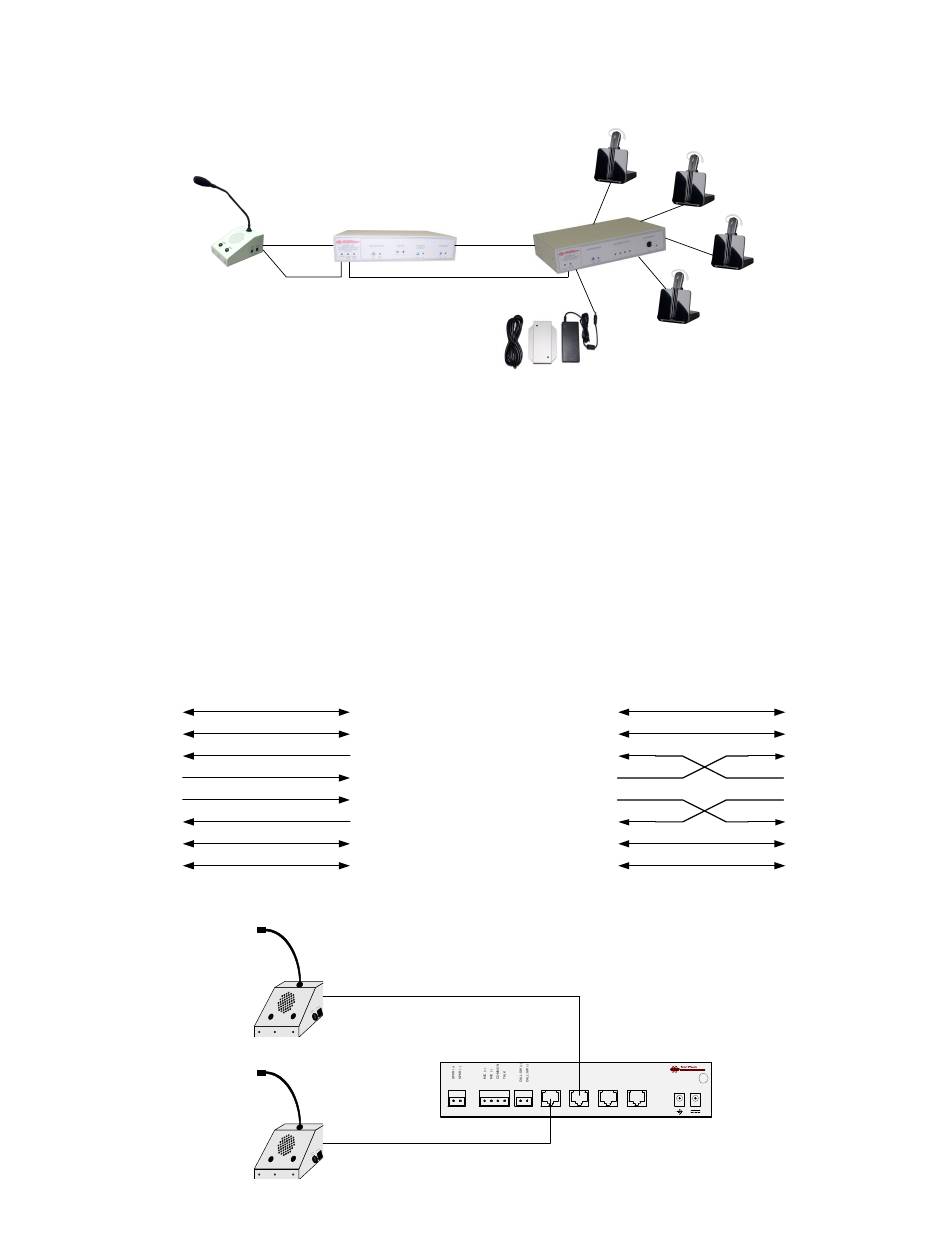

Installation Best Practices and Frequently Asked Questions:
Always connect the Collaborative Intercom active components from Master to Slave on the
CI-BUSS.
CI-ODC-1
By placing the CI-MSI-22 in the middle of the system it can act as an audio router for who hears
who.
By placing the Power Supply on the last device in the chain you can back feed the entire system
using standard Power Cords. To add more headsets just add another CI-HSI-41 to the one shown
and move the power supply to the new unit. Expansion of up to, no more than, 6 units, on the CI-
Buss will give the best performance.
If you absolutely have to have 2 Operator Desk Console on one CI-MSI-22 you can use a
crossover cable and connect the second ODC to the "CI-Master" Connector
NORMAL CI-BUSS: RJ-45 Cable wired 1 to 1; Ethernet Standard Wiring
"MASTER" CONNECTOR
TIA 568B COLOR
WHITE OF ORANGE
CALL_SW_(+)
(1)
CALL_SW_(-)
(2)
WHITE OF GREEN
MASTER_IN_(+) (3)
MASTER_OUT_(+) (4)
WHITE OF BLUE
MASTER_OUT_(-) (5)
MASTER_IN_(-) (6)
WHITE OF BROWN
ALERT_IN_(+) (7)
ALERT_IN_(-) (8)
Signal Pairing: (1,2) Control; (3,6) Audio; (4,5) Audio; (7,8) Control
10/29/2019
Tech Works CI-Series Systems Planning & Installation Manual
CI-BUSS
CI-BUSS
CI-MSI-22
MASTER
SLAVE
CAT6
POWER CORD
"SLAVE" CONNECTOR
(1) CALL_SW_(+)
ORANGE
(2) CALL_SW_(-)
(3) SLAVE_OUT_(+)
BLUE
(4) SLAVE_IN_(+)
(5) SLAVE_IN_(-)
GREEN
(6) SLAVE_OUT_(-)
(7) ALERT_OUT_(+)
BROWN
(8) ALERT_OUT_(-)
Standard CAT6 Cable
LISTEN
TALK
POWER
LIMIT/
HEADSET
VOX
ACTIVE
CI-ODC-1
Crossover CAT6 Cable
LISTEN
TALK
LIMIT/
HEADSET
POWER
VOX
ACTIVE
CI-ODC-1
CI-BUSS
CI-BUSS
MASTER
SLAVE
CAT6
POWER CORD
CI-HSI-41
PS-2437A
POWER
SUPPLY
CI-BUSS: RJ-45 Cable wired CROSS-OVER Wiring
"MASTER" CONNECTOR
CALL_SW_(+)
(1)
CALL_SW_(-)
(2)
MASTER_IN_(+) (3)
MASTER_OUT_(+) (4)
MASTER_OUT_(-) (5)
MASTER_IN_(-) (6)
ALERT_IN_(+) (7)
ALERT_IN_(-) (8)
CI-BUSS
CI-BUSS
PA-BUSS
MASTER
SLAVE
INPUT
CI-MSI-22-WM
Tech Works * 1-800-813-1080 * WWW.TECH4PEOPLE.COM
TIA 568B COLOR
"MASTER" CONNECTOR
WHITE OF ORANGE
CALL_SW_(+)
ORANGE
CALL_SW_(-)
WHITE OF GREEN
MASTER_IN_(+) (3)
BLUE
MASTER_OUT_(+) (4)
WHITE OF BLUE
MASTER_OUT_(-) (5)
GREEN
MASTER_IN_(-) (6)
WHITE OF BROWN
ALERT_IN_(+) (7)
BROWN
ALERT_IN_(-) (8)
PA-BUSS
OUTPUT
CI-MSI-22
24VDC – 1.5 A
Page 40 of 42
