CI-ODC-1-B QUICK REFERENCE GUIDE

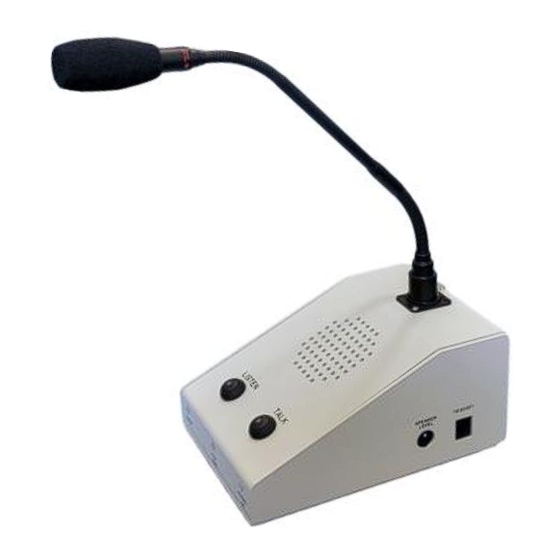

The Tech Works CI-ODC-1-B Operator Desk Console is part of the Collaborative Intercom product
group. The Console includes a professional cardioid, condenser, gooseneck microphone, and a speaker.
Buttons and indicators provide control to allow the operator to just listen to the CI-Buss communication or
to talk, and collaborate hands free. A headset jack on the side of the console allows connection of a local
operator headset such as the Plantronics wireless unit.
MICROPHONE ENABLED
MASTER INPUT
CI-BUSS MASTER
CALL SWITCH
MICRPHONE ENABLED
CI-BUSS MASTER
AUDIO INPUT
LISTEN SWITCH
Basic Operator Console Block Diagram
Isolation Transformers not shown for simplicity.
The CI-BUSS interface allows connection of additional units. The Microphones are processed with ALC to
be of constant level and passed to other Units.
The ALC has an indicator for displaying the Microphone level.
CONSOLE MIC PRE OUT
CONSOLE
PRE-AMP
MICROPHONE
SELECT
MUX
HEADSET
PRE-AMP
MICROPHONE
ALWAYS
VOX TRIPPED
AND
HEADSET ON
PTT SWITCH
SELECT
BUFFER
MUX
"LISTEN
\HEADSET ON
AND
LISTEN
LISTEN
CANCEL CALL TONE
OR
MASTER INPUT
BUFFER
CONSOLE MIC PRE OUT
PTT SWITCH
VOX INHIBIT
OR
HEADSET ON
MASTER INPUT
TOGGLE
FLIP-FLOP
ON
PTT SWITCH
OR
HEADSET ON
OFF
MIKE SWITCH
TOGGLE
AND
FLIP-FLOP
LISTEN
ALC
BUFFER
OR
MICROPHONE ON
OR
DUCK
LEVEL"
MUX
SUM
CALL
TONE
GEN
HEADSET
DETECTOR
VOX
VOX
GATE
ANTI-VOX
AND
OR
800-813-1080
www.techworks-usa.com
CI-BUSS MASTER
AUDIO OUTPUT
CI-BUSS MASTER
ALERT OUTPUT
CONSOLE
SPEAKER
HEADSET ON
HEADSET
EARPHONE
VOX TRIPPED
LISTEN
MICROPHONE ENABLED
09/23
Advertisement
Related Manuals for Tech Works CI-ODC-1-B
Summary of Contents for Tech Works CI-ODC-1-B
- Page 1 CI-ODC-1-B QUICK REFERENCE GUIDE The Tech Works CI-ODC-1-B Operator Desk Console is part of the Collaborative Intercom product group. The Console includes a professional cardioid, condenser, gooseneck microphone, and a speaker. Buttons and indicators provide control to allow the operator to just listen to the CI-Buss communication or to talk, and collaborate hands free.
- Page 2 Controls and Indicators: Front, Vertical Face: Power Indicator, Green when Operating Normally Microphone Input Level Indicator/VOX Indicator: Off (VOX not tripped), microphone off ; Red, Low audio Level ; Flashing Green; Normal audio level Headset On Indicator: Green when the Operator Wireless Headset is ON; When the Headset is ON, the Console Microphone, Speaker, and Switches, are disabled.
- Page 3 The Console Speaker listening level may be adjusted to be heard throughout the room When the Console Microphone is enabled the Console Speaker listening level is reduced to a lower level to prevent feedback There is a Remote Call Switch in the Procedure Room to get the attention of the Operator. The Call Tone comes through the Console Speaker, only if the Console Microphone is not enabled If the Procedure Room is in a Conversation with the Operator, it is assumed the Call Switch will not be used There are two Operational Configurations...
- Page 4 The Wireless Headset allows the Operator to move about the room, while carrying on a conversation with the Procedure Room If the Operator has a Wireless Headset (Optional), The Wireless Headset has an ON/OFF switch, when the Headset is ‘Off’ the function is the same as above. The Headset has priority, and converses with the Procedure Room when the “HEADSET ON”...
