Tech Works CI-ODC-4 Quick Reference Manual

Hide thumbs Also See for CI-ODC-4:
1
2
3
4

Advertisement

Table of Contents

CI-ODC-4
QUICK REFERENCE GUIDE
The Tech Works CI-ODC-4 Operator Desk Console is part of the Collaborative Intercom product
group. The Console includes a professional cardioid, condenser, gooseneck microphone, and a speaker.
Buttons and indicators provide control to allow the operator to just listen to the CI-Buss communication or
to talk, and collaborate hands free. A headset jack on the side of the console allows connection of a local
operator headset such as the CS-540 wireless unit.

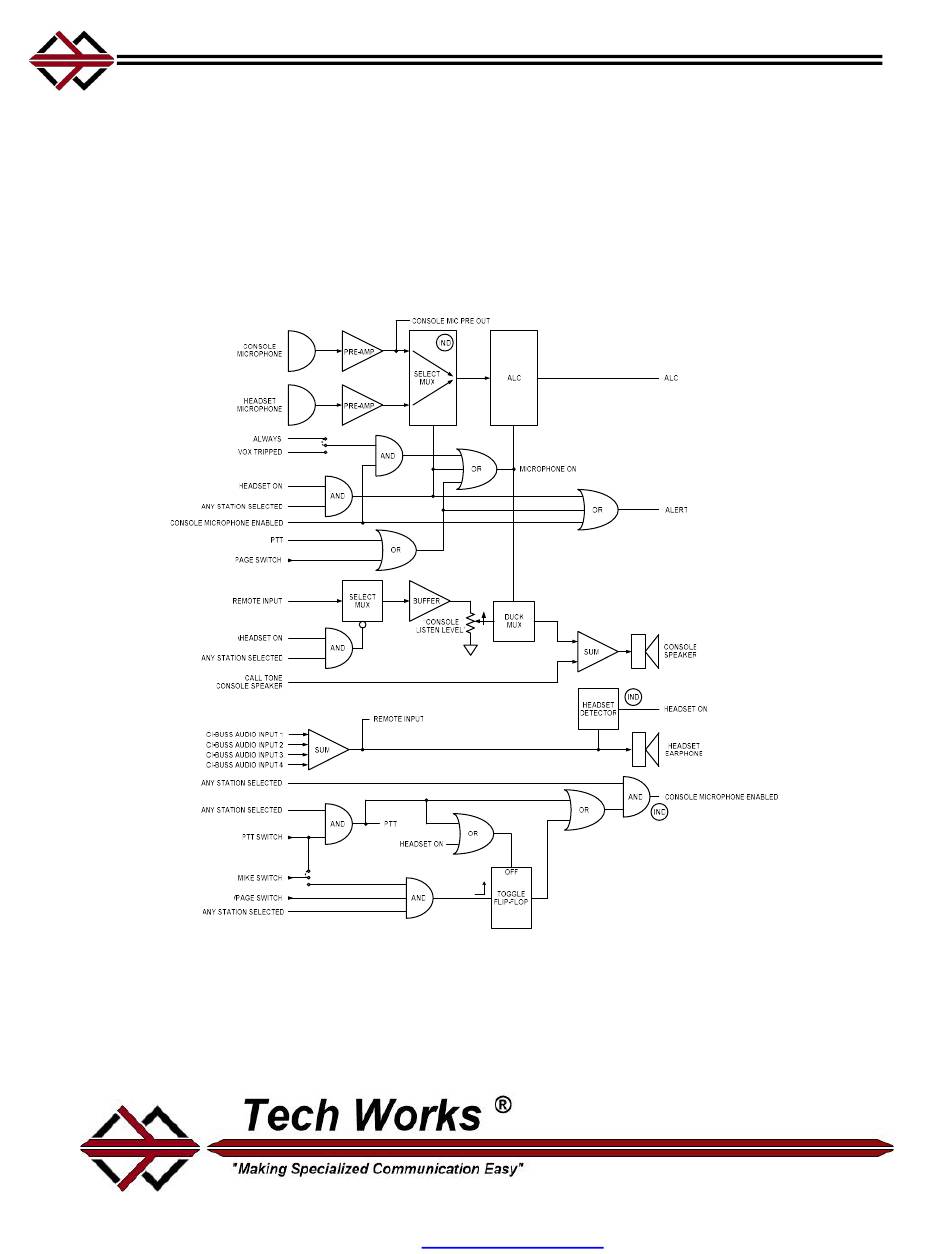

Basic Operator Console Block Diagram
Isolation Transformers not shown for simplicity.
The CI-BUSS interface allows connection of additional units.
The Microphones are processed with ALC to be of constant level and passed to other Units.
The ALC has an indicator for displaying the Microphone level.
Tech Works, Inc., 7430 Eastgate Road, Suite 130, Henderson, NV 89011
Direct Line: 702-846-1080 Toll Free: 1-800-813-1080
Web site
www.tech4people.com
6/17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CI-ODC-4 and is the answer not in the manual?

Questions and answers

Related Manuals for Tech Works CI-ODC-4

Summary of Contents for Tech Works CI-ODC-4

  • Page 1: Quick Reference Guide

    CI-ODC-4 QUICK REFERENCE GUIDE The Tech Works CI-ODC-4 Operator Desk Console is part of the Collaborative Intercom product group. The Console includes a professional cardioid, condenser, gooseneck microphone, and a speaker. Buttons and indicators provide control to allow the operator to just listen to the CI-Buss communication or to talk, and collaborate hands free.

  • Page 2: Controls And Indicators

    Controls and Indicators: Sloped Face: Station Select Switches, 4 Toggle Action Remote Station Indicators, Four Red when selected Flashing when a Call is pending Off when not active Controls both the Listening and Talking to the Remote Station Console TALK Switch (Toggle Action, or Momentary) TALK Indicator, Red when Microphone is enabled Allows listening without interrupting the Remote Conversation...
  • Page 3 Operation: The Console Speaker listening level may be adjusted to be heard throughout the room When the Console Microphone is enabled the Console Speaker listening level is reduced to a lower level to prevent feedback If there is a Remote Call Switch in the Procedure Room to get the attention of the Operator, The Call Tone comes through the Console Speaker, only if the Console Microphone is not enabled If the Procedure Room is in a Conversation with the Operator, it is assumed the Call Switch will not be used...
  • Page 4 Operation with Accessories: The PTT Foot Switch allows hands free operation, and overrides VOX if the Environment becomes noisy If the Operator has a Push-to-Talk Foot Switch (Optional) PTT disables VOX mode When the Foot Switch is pressed the Console Microphone is immediately activated When the Foot Switch is Released the Console returns to Listening The Wireless Headset allows the Operator to move about the room, while carrying on a conversation with the Procedure Room...
