CI-ODC-1
The Tech Works CI-ODC-1 Operator Desk Console is part of the Collaborative Intercom product
group. The Console includes a professional cardioid, condenser, gooseneck microphone, and a speaker.
Buttons and indicators provide control to allow the operator to just listen to the CI-Buss communication or
to talk, and collaborate hands free. A headset jack on the side of the console allows connection of a local
operator headset such as the CS-540 wireless unit.
MICROPHONE ENABLED
MASTER INPUT
CI-BUSS MASTER
CALL SWITCH
MICRPHONE ENABLED
CI-BUSS MASTER
AUDIO INPUT
LISTEN SWITCH

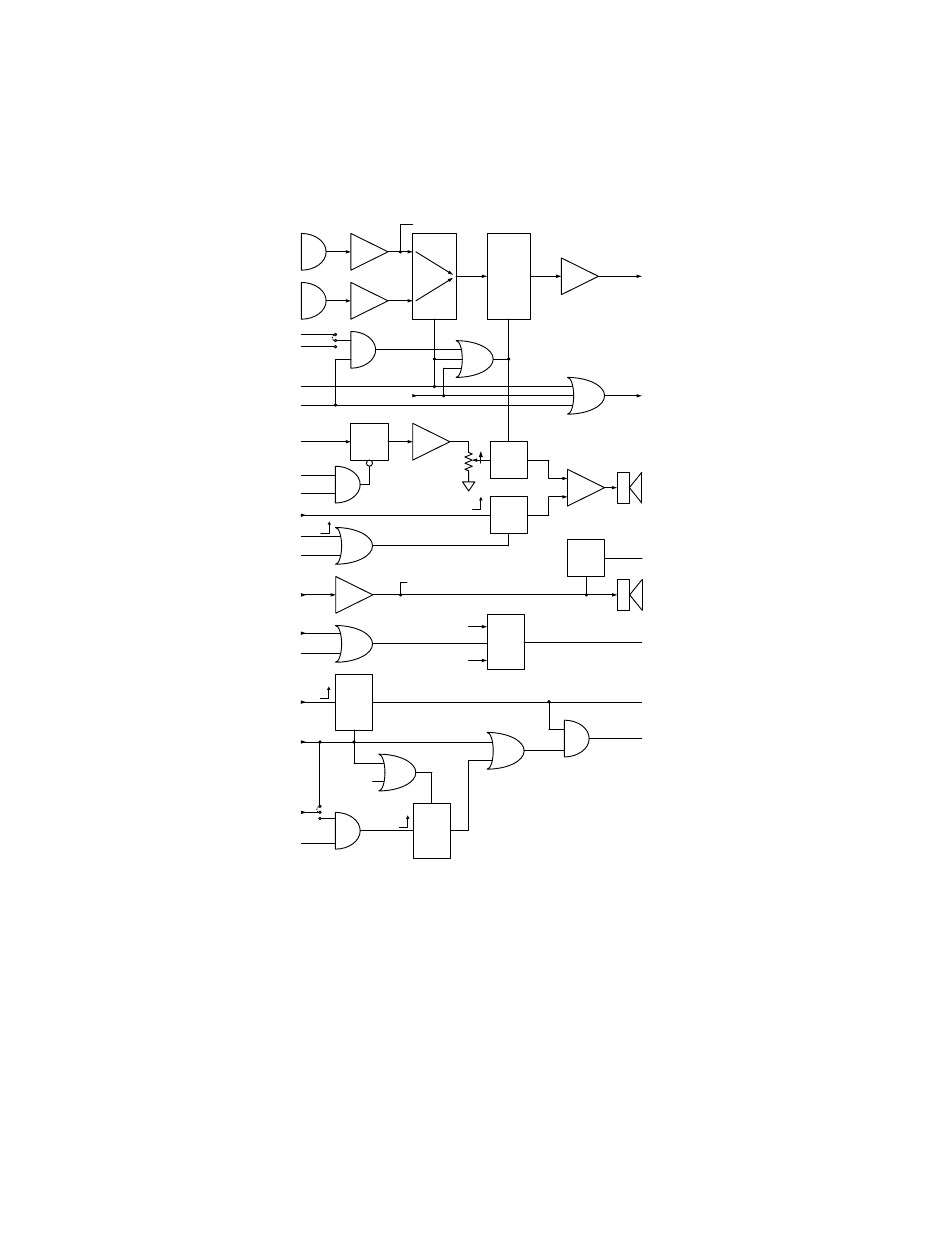

Basic Operator Console Block Diagram
Isolation Transformers not shown for simplicity
The CI-BUSS interface allows connection of additional units. The Microphones are processed with ALC to
be of constant level and passed to other Units
The ALC has an indicator for displaying the Microphone level.
10/29/2019
Tech Works CI-Series Systems Planning & Installation Manual
CONSOLE MIC PRE OUT
CONSOLE
PRE-AMP
MICROPHONE
SELECT
MUX
HEADSET
PRE-AMP
MICROPHONE
ALWAYS
VOX TRIPPED
AND
HEADSET ON
PTT SWITCH
SELECT
BUFFER
MUX
\HEADSET ON
AND
LISTEN
LISTEN
CANCEL CALL TONE
OR
MASTER INPUT
BUFFER
CONSOLE MIC PRE OUT
PTT SWITCH
VOX INHIBIT
OR
HEADSET ON
MASTER INPUT
TOGGLE
FLIP-FLOP
ON
PTT SWITCH
OR
HEADSET ON
OFF
MIKE SWITCH
TOGGLE
AND
FLIP-FLOP
LISTEN
ALC
BUFFER
OR
MICROPHONE ON
OR
"LISTEN
DUCK
LEVEL"
MUX
SUM
CALL
TONE
GEN
HEADSET
DETECTOR
VOX
VOX
GATE
ANTI-VOX
AND
OR
CI-BUSS MASTER
AUDIO OUTPUT
CI-BUSS MASTER
ALERT OUTPUT
CONSOLE
SPEAKER
HEADSET ON
HEADSET
EARPHONE
VOX TRIPPED
LISTEN
MICROPHONE ENABLED
