CI-ODC-1 QUICK REFERENCE GUIDE

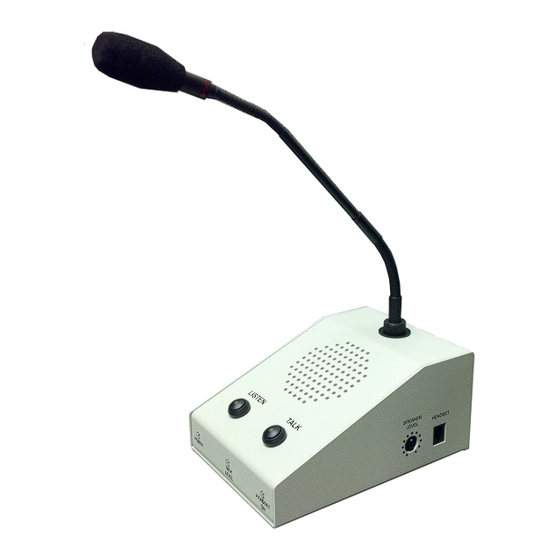

The Tech Works CI-ODC-1 Operator Desk Console is part of the Collaborative Intercom product
group.. The Console includes a professional cardioid, condenser, gooseneck microphone, and a
speaker. Buttons and indicators provide control to allow the operator to just listen to the CI-Buss
communication or to talk, and collaborate hands free. A headset jack on the side of the console allows
connection of a local operator headset such as the CS-540 wireless unit.

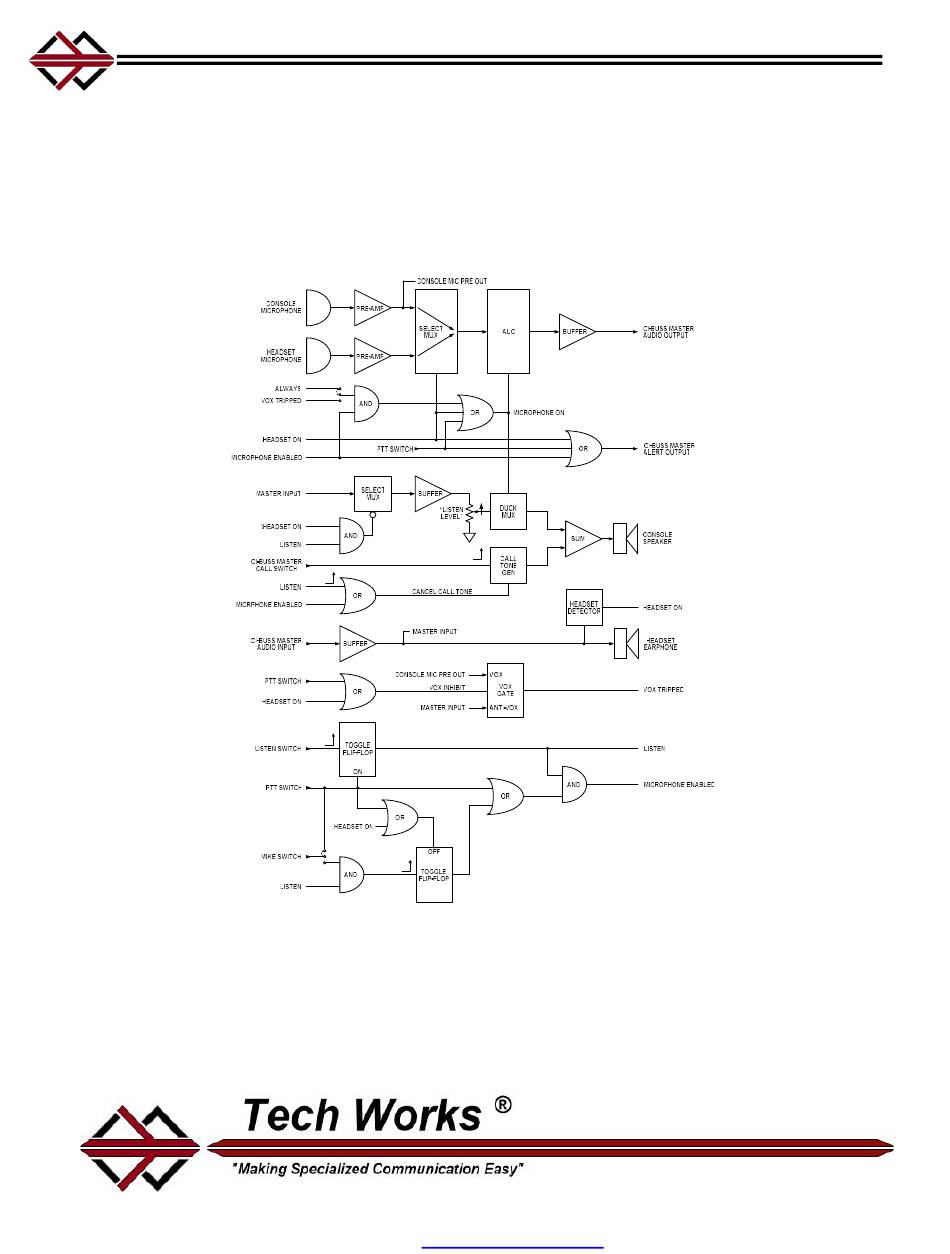

Basic Operator Console Block Diagram
Isolation Transformers not shown for simplicity
The CI-BUSS interface allows connection of additional units. The Microphones are processed with ALC to
be of constant level and passed to other Units
The ALC has an indicator for displaying the Microphone level.
Tech Works, Inc., 7430 Eastgate Road, Suite 130, Henderson, NV 89011
Direct Line: 702-846-1080 Toll Free: 1-800-813-1080
Web site
www.tech4people.com
6/17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Tech Works CI-ODC-1
Summary of Contents for Tech Works CI-ODC-1
- Page 1 CI-ODC-1 QUICK REFERENCE GUIDE The Tech Works CI-ODC-1 Operator Desk Console is part of the Collaborative Intercom product group.. The Console includes a professional cardioid, condenser, gooseneck microphone, and a speaker. Buttons and indicators provide control to allow the operator to just listen to the CI-Buss communication or to talk, and collaborate hands free.
- Page 2 Red when Microphone is enabled - Allows listening without interrupting the Remote Conversation Side: Console Speaker Listening Level (Knob Pot, Side) The Console Speaker Level Adjustment is limited, the speaker may not be turned completely off Rear Connections: Tech Works CI-ODC-1 POWER CI-BUSS FOOT...
- Page 3 The Console Speaker listening level may be adjusted to be heard throughout the room When the Console Microphone is enabled the Console Speaker listening level is reduced to a lower level to prevent feedback There is a Remote Call Switch in the Procedure Room to get the attention of the Operator, The Call Tone comes through the Console Speaker, only if the Console Microphone is not enabled If the Procedure Room is in a Conversation with the Operator, it is assumed the Call Switch will not be used...
- Page 4 When the microphone is enabled The Operator must speak directly into the Console Microphone At a distance of ~6” for proper response The "LIMIT/VOX" indicator lights Green to indicate the Microphone is on During normal operation, the "LEVEL/VOX" Indicator flashes Red to indicate proper microphone level Operation with Accessories: The PTT Foot Switch allows hands free operation, and overrides VOX if the Environment becomes noisy...
