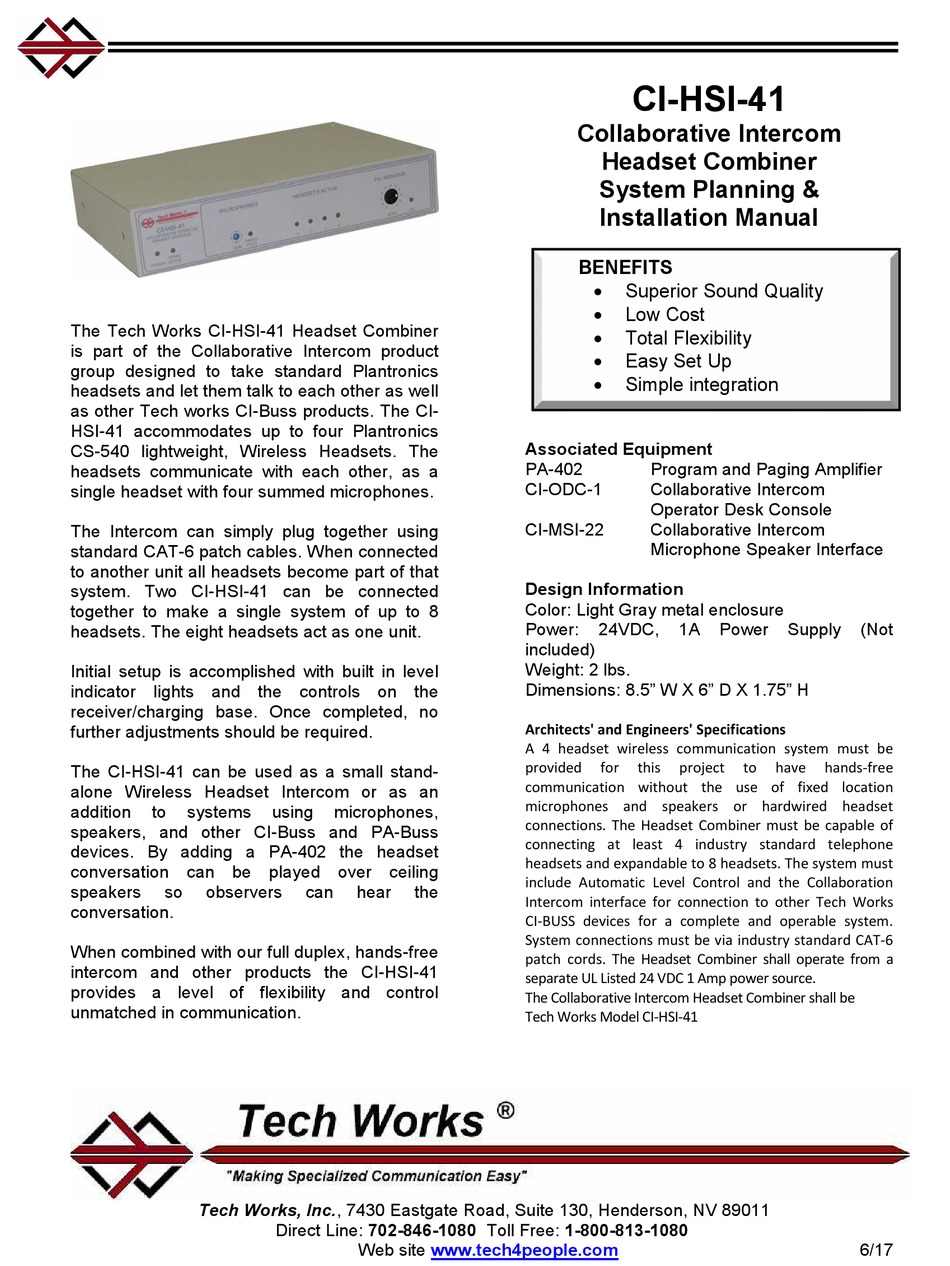

Tech Works CI-HSI-41 System Planning & Installation Manual

The Tech Works CI-HSI-41 Headset Combiner
is part of the Collaborative Intercom product
group designed to take standard Plantronics
headsets and let them talk to each other as well
as other Tech works CI-Buss products. The CI-
HSI-41 accommodates up to four Plantronics
CS-540 lightweight, Wireless Headsets. The
headsets communicate with each other, as a
single headset with four summed microphones.
The Intercom can simply plug together using
standard CAT-6 patch cables. When connected
to another unit all headsets become part of that
system. Two CI-HSI-41 can be connected
together to make a single system of up to 8
headsets. The eight headsets act as one unit.
Initial setup is accomplished with built in level
indicator lights and the controls on the
receiver/charging base. Once completed, no
further adjustments should be required.
The CI-HSI-41 can be used as a small stand-
alone Wireless Headset Intercom or as an
addition to systems
speakers, and other CI-Buss and PA-Buss
devices. By adding a PA-402 the headset
conversation can be played over ceiling
speakers so observers
conversation.
When combined with our full duplex, hands-free
intercom and other products the CI-HSI-41
provides a level of flexibility and control
unmatched in communication.
