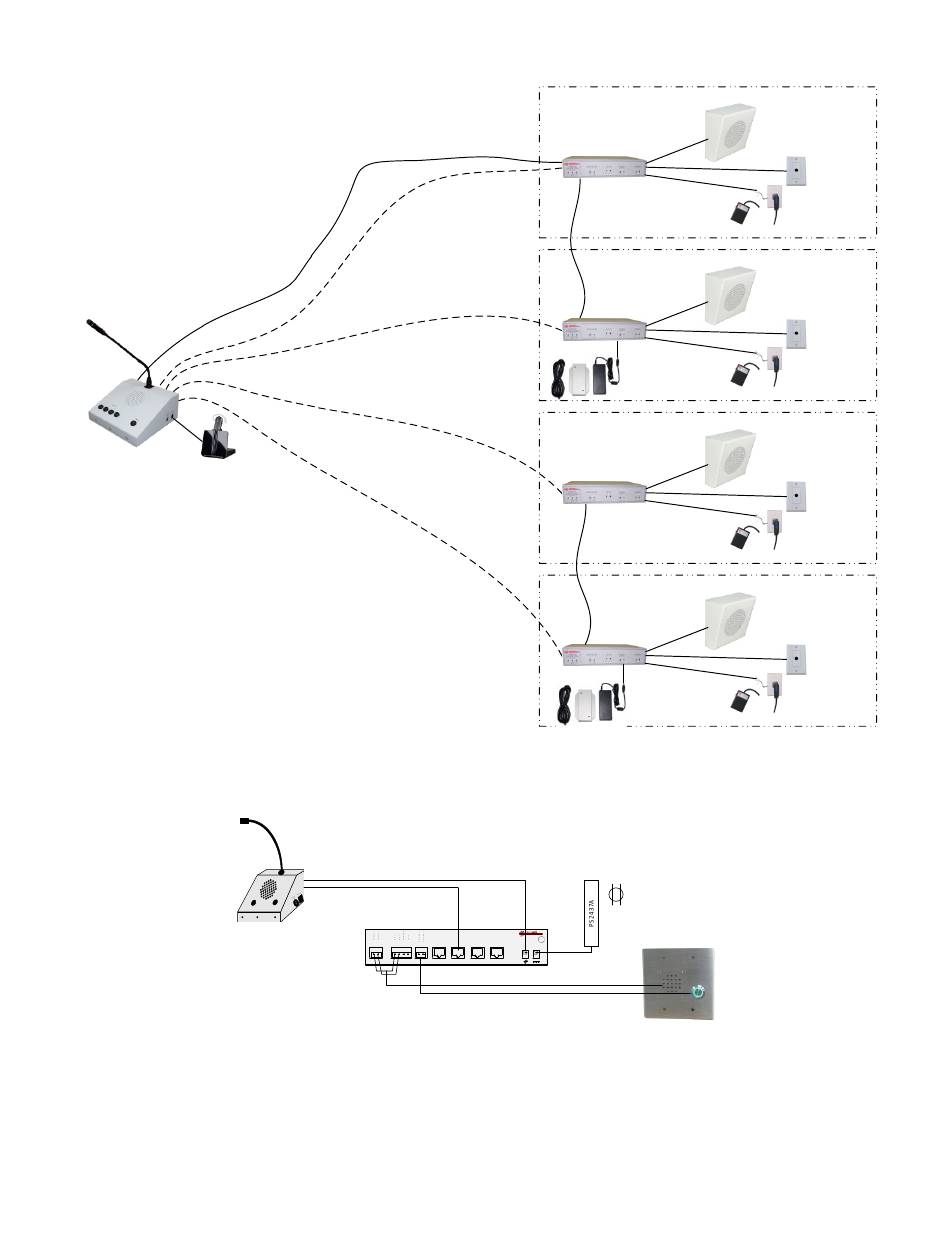

Pharmacy, Sterile Compounding Clean Room Intercom for 4 Clean Rooms
CI-ODC-4
CS-540
Simple Bank Teller Window Intercom
POWER
CI-ODC-1
10/29/2019
Tech Works CI-Series Systems Planning & Installation Manual
PC-100
CAT6-100
TYPICAL
PC-10 Cable from CI-ODC-1 to CI-MSI-22 Power
CAT6 Cable from CI-ODC-1 (Master) to
LISTEN
TALK
CI-MSI-22 "CI-Slave"
CI-MSI-22
LIMIT/
HEADSET
VOX
ACTIVE
Tech Works * 1-800-813-1080 * WWW.TECH4PEOPLE.COM
Jumper (+) to (+)
and (-) to (-)
CI-MSI-22
TYPICAL
CI-BUSS
CI-BUSS
PA-BUSS
PA-BUSS
MASTER
SLAVE
INPUT
OUTPUT
CI-MSI-22
24VDC – 1.5 A
Belden 8461 or West Penn 224 Speaker Wire
Belden 8461 or West Penn 224 Button Wire
SYSTEM-2
SPEAKER
TYPICAL
FS-1-PLUS
TYPICAL
CLEAN ROOM #1
BELDEN 1325R
BELDEN 8461
TWISTED / SHEILD
SPEAKER CABLE
MICROPHONE CABLE
PS-2437A
TYPICAL
CLEAN ROOM #2
CLEAN ROOM #3
CLEAN ROOM #4
120VAC
By Others
2021B
Page 38 of 42
HM-1
TYPICAL
