CI-ODC-4
The Tech Works CI-ODC-4 Operator Desk Console is part of the Collaborative Intercom
product group. The Console includes a professional cardioid, condenser,
gooseneck microphone, and a speaker. Buttons and indicators provide control to
allow the operator to just listen to the CI-Buss communication or to talk, and
collaborate hands free. A headset jack on the side of the console allows connection
of a local operator headset such as the CS-540 wireless unit.
CONSOLE
MICROPHONE
HEADSET
MICROPHONE
ALWAYS
VOX TRIPPED
HEADSET ON
ANY STATION SELECTED
CONSOLE MICROPHONE ENABLED
PAGE SWITCH
REMOTE INPUT
\HEADSET ON
ANY STATION SELECTED
CALL TONE
CONSOLE SPEAKER
CI-BUSS AUDIO INPUT 1
CI-BUSS AUDIO INPUT 2
CI-BUSS AUDIO INPUT 3
CI-BUSS AUDIO INPUT 4
ANY STATION SELECTED
ANY STATION SELECTED
PTT SWITCH
MIKE SWITCH
/PAGE SWITCH
ANY STATION SELECTED

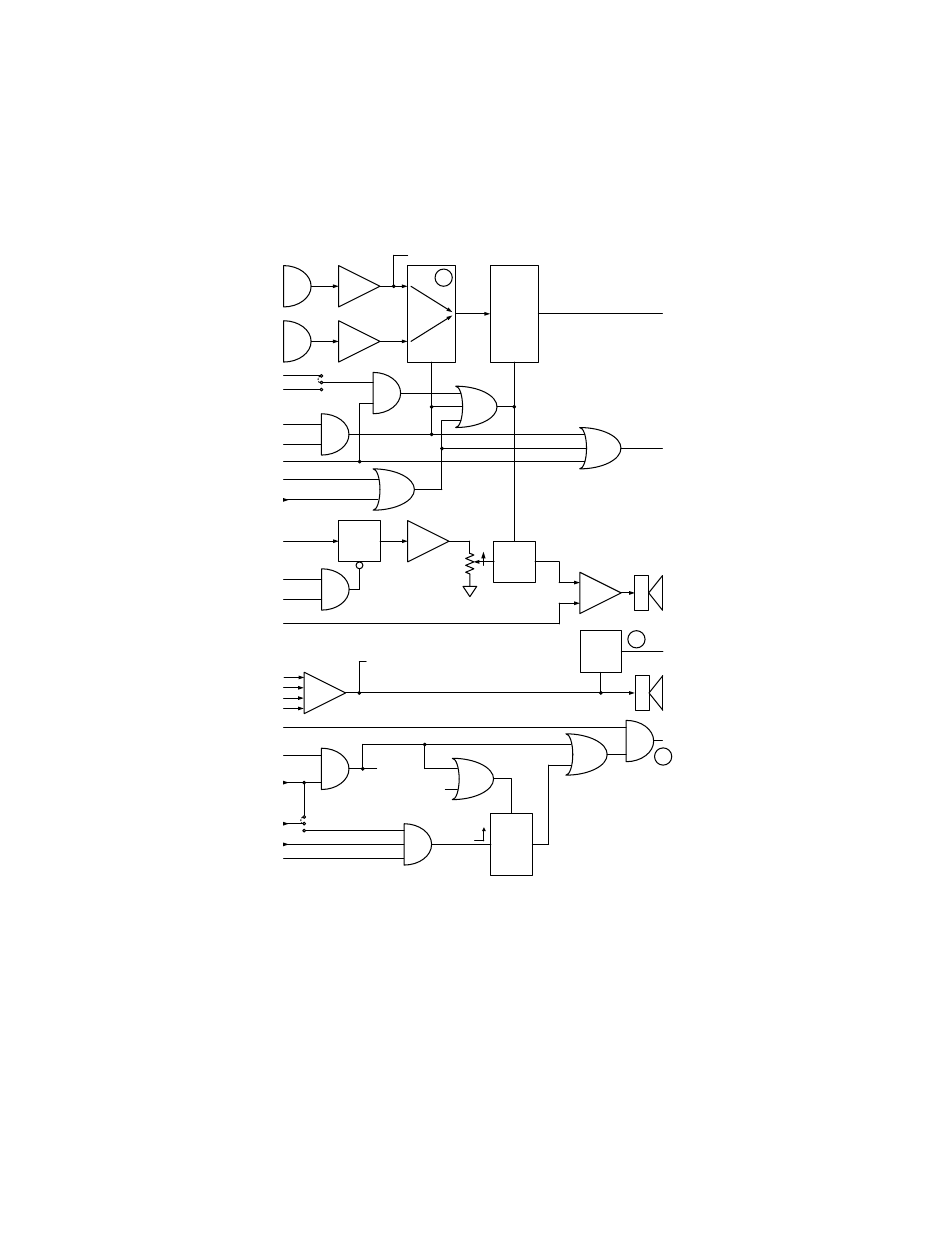

Basic Operator Console Block Diagram
Isolation Transformers not shown for simplicity.
The
CI-BUSS
The Microphones are processed with ALC to be of constant level and passed to other Units.
The ALC has an indicator for displaying the Microphone level.
