Wiring Harness Installation; Throttle Position Sensor Connection - Dynojet Power Commander III 718-411 Installation Instructions

Stock Connector
Stock Connector
i718-411 www.powercommander.com
Stock Connector
PCIII Connectors
1 Remove seat assembly.
2 Place the PCIII in the tail section tem-
porarily.
3 Route the wiring harness from the
PCIII towards each cylinder. Route
the harness between the battery and
the frame going under the frame rails.
NOTE: It does not matter which lead
goes to which injector.

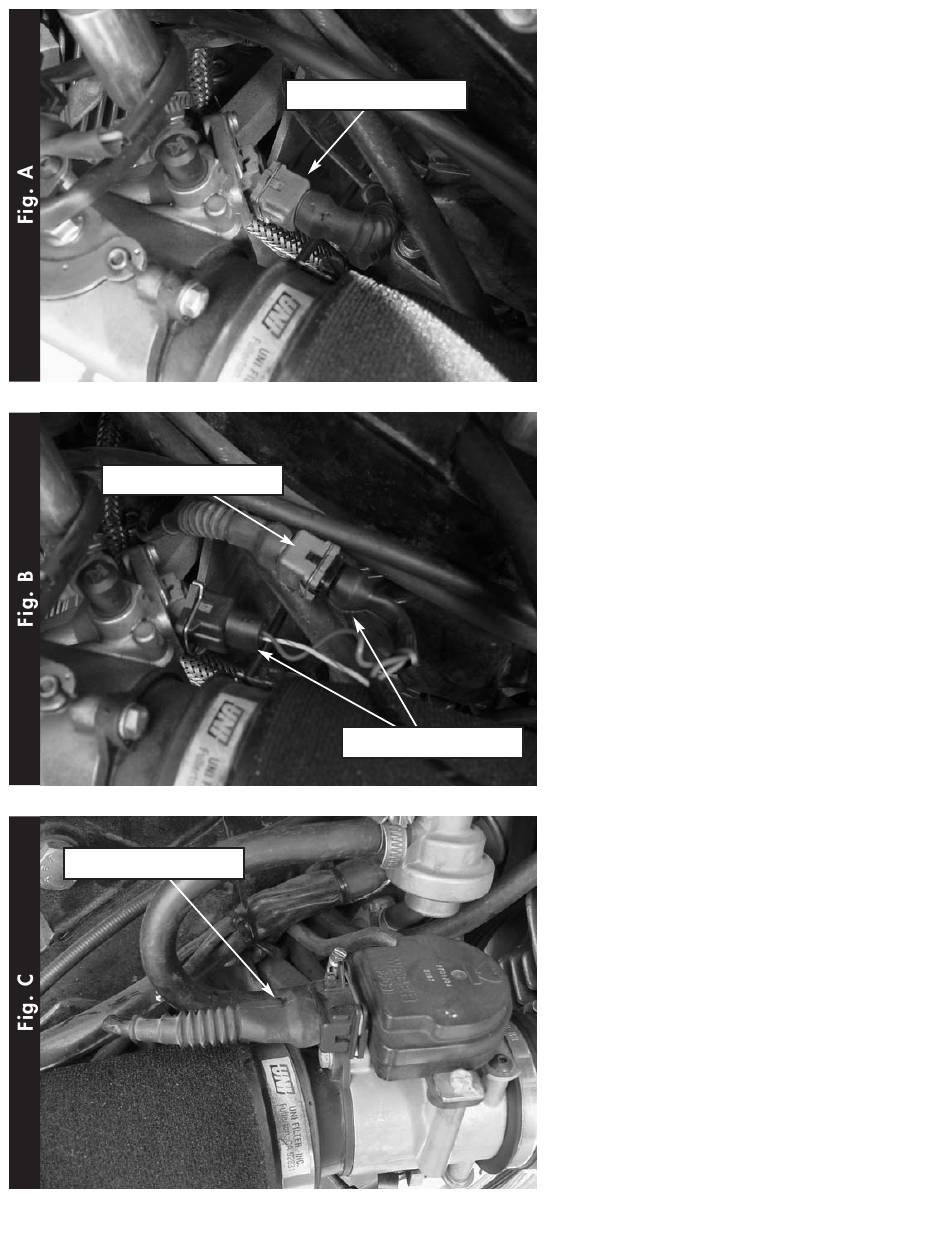

4 Unplug the stock wiring harness from
the injector (Fig. A).
5 Plug the connectors from the PCIII in-
line of the stock connectors (Fig. B).
6 Repeat steps 4 and 5 for the other
injector.
7 Unplug the Throttle Position Sensor
connector from the TPS on the right
hand side of the bike (on top of the
throttle body) (Fig C).
1997-1998 Moto Guzzi Centauro - PCIII USB - 2
