2009 Suzuki Bandit 1250

I n s t a l l a t i o n I n s t r u c t i o n s

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

20-010

www.powercommander.com

2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com

PARTS LIST

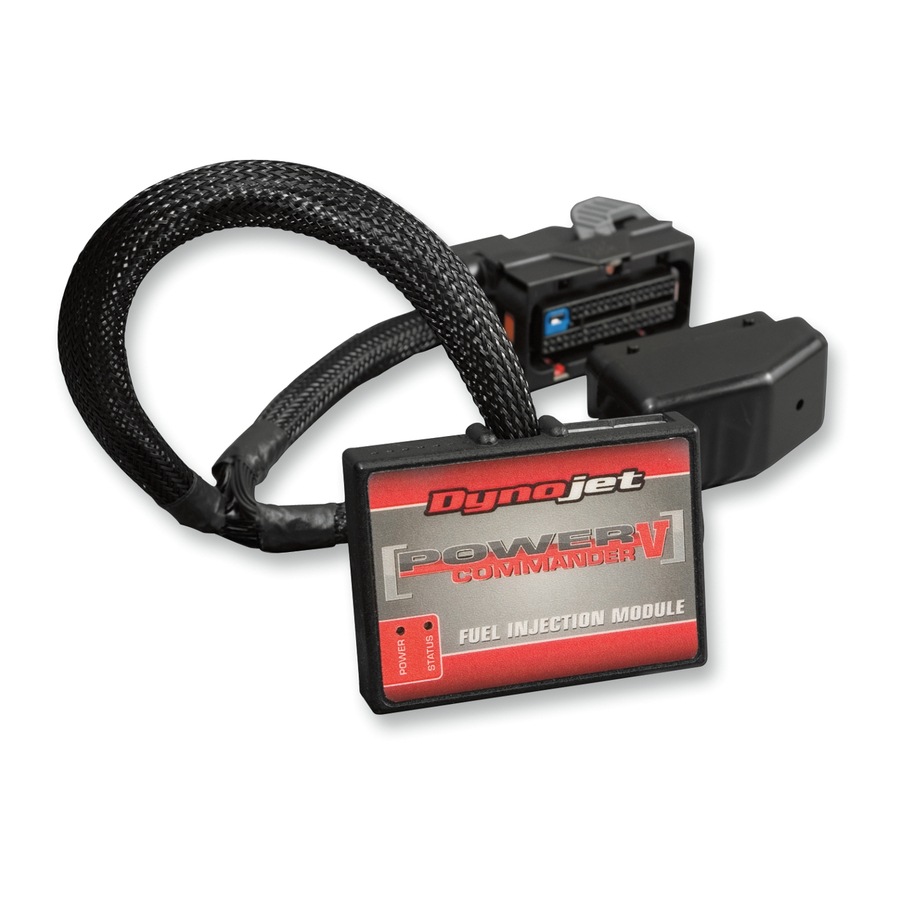

Power Commander

USB Cable

CD-ROM

Installation Guide

Power Commander Decals

Dynojet Decals

Velcro

Alcohol swab

Posi-tap

O2 eliminator

THE IGNITION MUST BE TURNED

OFF BEFORE INSTALLATION!

YOU CAN ALSO DOWNLOAD THE

POWER COMMANDER SOFTWARE AND

LATEST MAPS FROM OUR WEB SITE AT:

www.powercommander.com

2009 Suzuki Bandit 1250 PCV - 1

Need help?

Do you have a question about the POWER COMMANDER V and is the answer not in the manual?

Page 1 2009 Suzuki Bandit 1250 Installation Guide I n s t a l l a t i o n I n s t r u c t i o n s Power Commander Decals Dynojet Decals Velcro Alcohol swab Posi-tap O2 eliminator...
Page 2 Do NOT connect anything to this port unless wire into the hole of the PCV until is stops and then instructed to do so by Dynojet. It is used to tighten the screw. Make sure to reinstall the rubber transfer crank trigger data from one module to plug.
Page 3 FIG.A Remove the seat Remove the fuel tank. Lay the PCV in the tail section. Route the wiring harness from the PCV under subframe crossover and go towards the throttle bodies. FIG.B Unplug the stock wiring harness from each of the injectors (Fig. B). Injector #4 is hidden in this picture by the main wiring harness.
Page 4 Locate the stock O2 sensor under the left hand side cover. Unplug the sensor from stock wiring harness and connect the Dynojet O2 eliminator. The stock O2 sensor does not need to be connected to anything.
