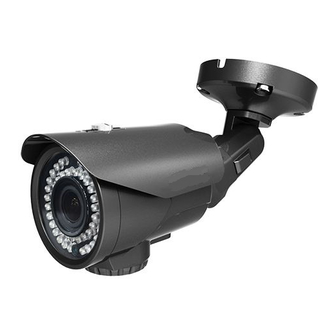

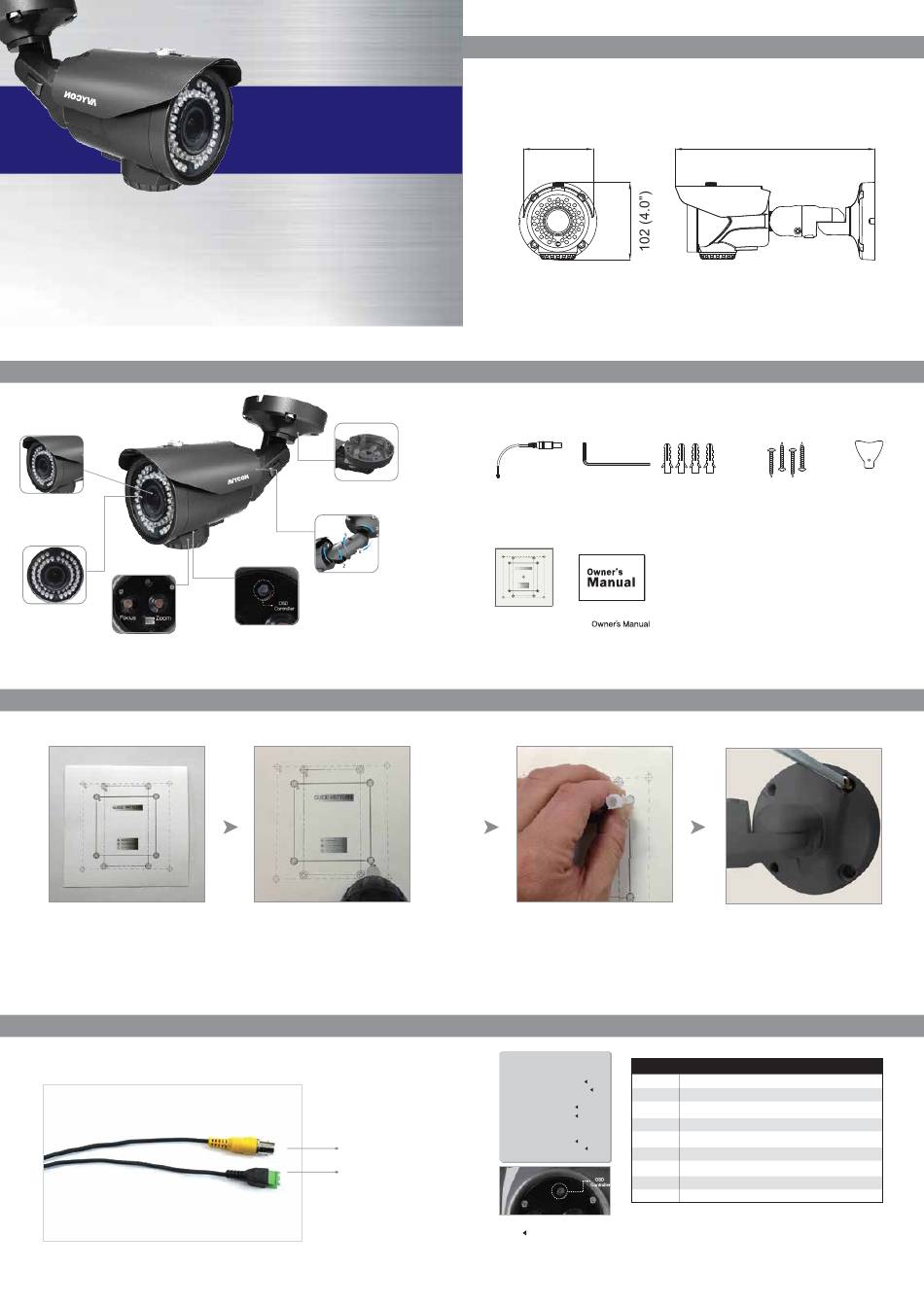

AVYCON AVC-BH52VT Owner's Manual

2. Features
1
2.8~12mm Varifocal Lens
2
Split glasses
3
Easy Zoom&Focus
4. Installation Guide
1. Attach included template to the wall
5. Cables
ULTRA HIGH RESOLUTION
DIGITAL COLOR CCTV CAMERA
Owner's
Manual
1/3" 960H IT CCD
●
● 2.8~12mm Megapixel Lens
(ICR)
● Ultra High Resolution
● 5-Axis bracket
Cable Storage Compartment
●
Split glasses
●
6
Cable Storage Comaprtment
5
Patented 5-Axis bracket
4
Easy OSD Access
2. Drill 3/16" holes (4X) where indicated" A "
Video output
Dual VoltageTerminal
(12V DC/ 24V AC)
1. Dimensions
92 (3.6")
3. Contents
1 2
1. Test Video Cable 2. L-Wrench
6 7
C
B
A
GUIDE PATTERN
A
B
C
6. Screw Hole Template 7.
3. Firmly insert included drywall anchors
6. Settings
Menu Configuration
MAIN SETUP
EXPOSURE
1. EXPOSURE ALC
2. DAY/NIGHT EXTERN
DAY/NIGHT
3. WHITE BAL ATW
4. MONITOR
WHITE BAL
5. IMAGE
6. DNR MIDDLE
MONITOR
7. MOTION OFF
8. SYSTEM
9. EXIT SAVE
DNR
MOTION
SYSTEM
EXIT
※ See back for more details.
* Push the SET button > menu open
* Icon has sub menus. Press the set button to
enter sub menus.
1. Up and Down : Move Cusor
2. Left and Right : Value
3. Left and Right > Push > Menu > Value
4. END : Push > Return
Unit : mm (Inch)
262 (10.3")
3 4
3. Drywall Anchor x 4 4. Mounting Screw x4
4. Align the bracket holes and tighten
all 4 screws
MAIN SETUP
ㆍELC ㆍALC
ㆍAUTO/DAY ㆍ EXTERN ㆍCDS
ㆍATW/PUSH ㆍMANUAL
ㆍGAMMA ㆍCHROMA ㆍSHARPNESS ㆍSHADING ㆍPED. LV
ㆍBACKLIGHT ㆍCONTRAST ㆍPOSI/NEGA ㆍMIRROR ㆍPROVACY ㆍRETURN
ㆍLOW / MIDDLE / HIGH
ㆍON / OFF
ㆍSYSTEM ㆍCAM TITLE ㆍCAM ID ㆍID DISP ㆍSYNC ㆍBUDRATE ㆍLANGUAGE ㆍSPECIAL
ㆍSAVE / RESTORE / INITIAL / MANUAL
5
5. OPENER
