Tyco Electronics PEW 12 Instruction Sheet

PROPER USE GUIDELINES
Cumulative Trauma Disorders can result from the prolonged use of manually powered hand tools. Hand tools are intended for occasional use and low volume
applications. A wide selection of powered application equipment for extended-use, production operations is available.
Front of Tool
(Locator Side)
Die Assembly
The PEW 12 Hand Tool is a Commercial" grade tool and is designed primarily
for field installation, repair, maintenance work, or prototyping in industrial,
commercial, or institutional applications. Product crimped with this tool will
meet the crimp height requirement for hand tools in the appropriate 114
application specification, but may not comply with other feature parameters of
the specification. Tyco Electronics offers a variety of tools to satisfy your
performance requirements. For additional information, contact the Tooling
Assistance Center at 1-800-722-1111.
DIE ASSEMBLY
PART NUMBER
2031243-2
{
Contact the Tooling Assistance Center at the bottom of this page for specific terminal part numbers.
1. INTRODUCTION

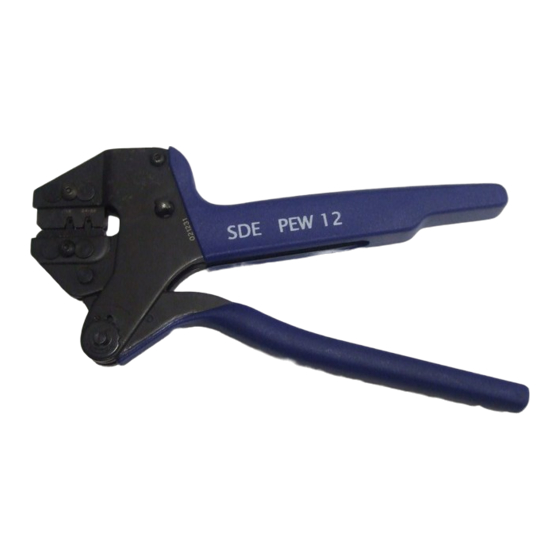

PEW 12 Hand Tool Assembly 2031243–1 consists of
Die Assembly 2031243–2 and PEW 12 Hand Tool
Frame 9–1478240–0. See Figure 1. The die
assembly consists of wire and insulation crimping
dies. Read these instructions thoroughly before
crimping any terminals.
E
2008 Tyco Electronics Corporation, Harrisburg, PA
All International Rights Reserved
TE logo and Tyco Electronics are trademarks.
*Trademark. Other products, logos, and company names used are the property of their respective owners.
PEW 12 Hand Tool
Assembly 2031243-1 with
Die Assembly 2031243-2
Stationary Jaw
Moving Jaw
{
TERMINAL
SIZE
FAMILY
(mm
1-1.4
.250 Series
FASTON*
Receptacle
2-3

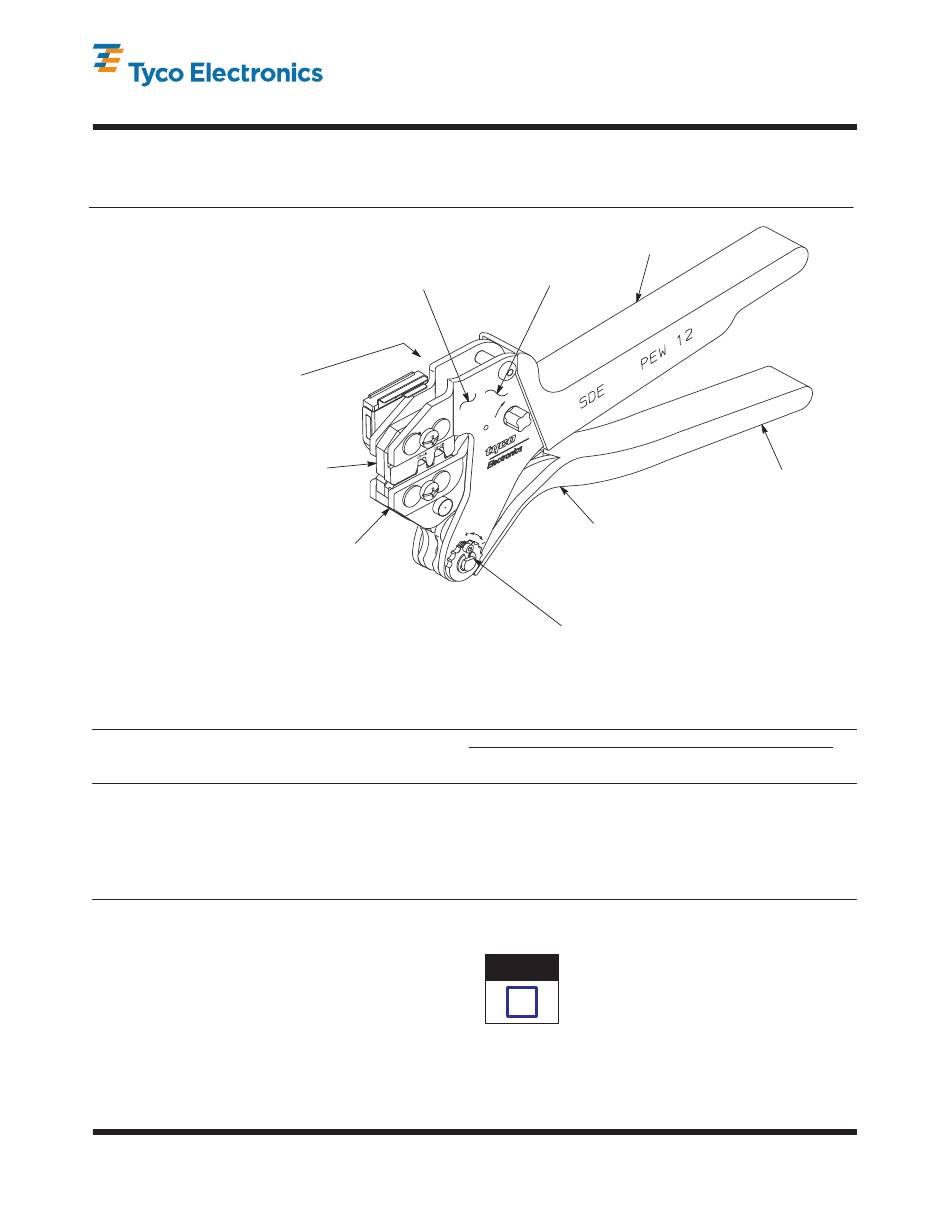

Figure 1
Reasons for reissue are provided in Section 10,
REVISION SUMMARY.
TOOLING ASSISTANCE CENTER 1-800-722-1111
PRODUCT INFORMATION 1-800-522-6752
Stationary Handle
Back of Tool
(Wire Side)
PEW 12 Hand Tool Frame
9-1478240-0
(See Instruction Sheet 408-8851)
Ratchet Adjustment
Wheel
WIRE
INSUL DIA
2
(mm [in.])
)
1.91-3.30
[.075-.130]
Dimensions on this sheet are in millimeters [with
NOTE
inch equivalents provided in brackets]. Figures
i
and illustrations are for identification only and are
not drawn to scale.
This controlled document is subject to change.
For latest revision and Regional Customer Service,
visit our website at www.tycoelectronics.com
Instruction Sheet
408-10182
08 JAN 08 Rev B
Moving Handle
STRIP LENGTH
(mm [in.])
5.1-5.9
[.201-.232]
1 of 4
LOC B
