Ricoh SWALLOW 2 Service Manual page 38

13 October 1997
[D]

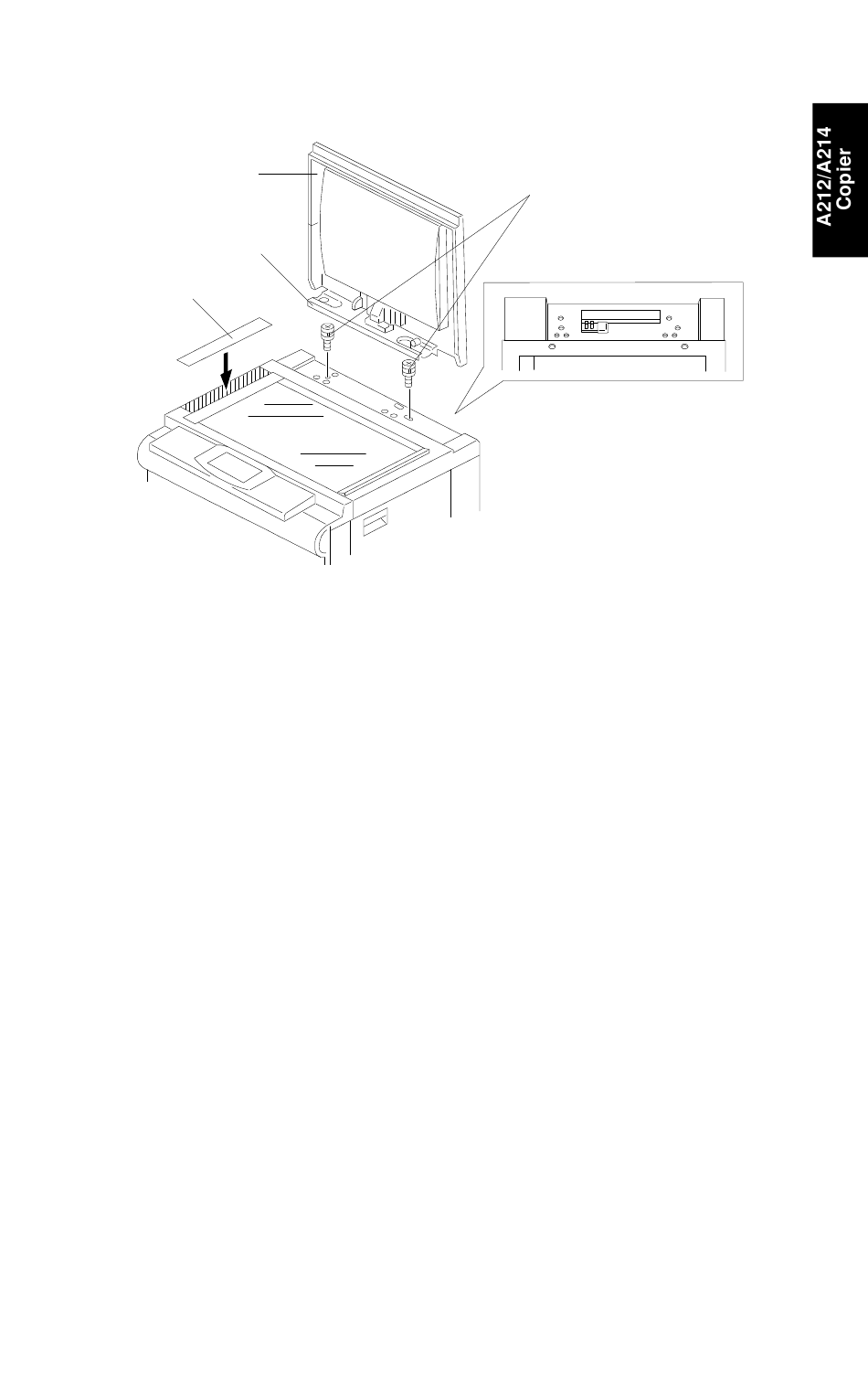

34. Install the optional platen cover [A] if necessary:
1) Install 2 stud screws [B] on the top cover as shown.
2) Position the platen cover bracket [C] on the stud screws and slide it to
the left.
35. Attach the symbol explanation decal [D] to the top cover as shown. (If the
ARDF will be installed, stick the decal on the ARDF exit cover. Refer to
the ARDF installation procedure.)
36. Check the copy quality and machine operation.
[A]
[C]
[B]
35
INSTALLATION
A212I513.wmf
