INSTALLATION
[B]
IMPORTANT: Do not swing the bottle holder fully into the machine before
step 20.

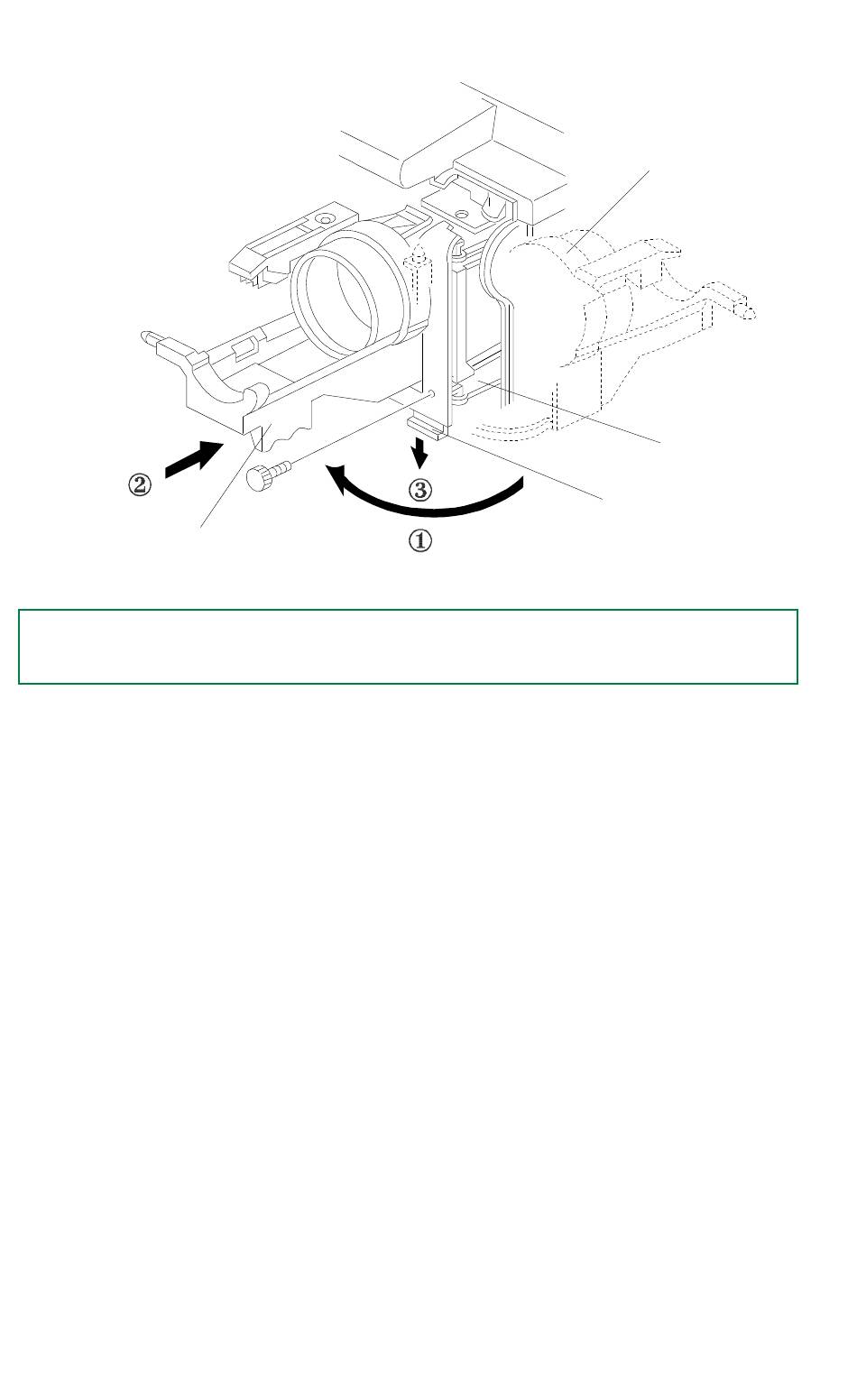

20. Swing in the bottle holder assembly [A] so that the toner bottle holder [B]
and the slide rail [C] are aligned properly.
21. Slide the bottle holder assembly in as described below:
1) Slide the bottle holder assembly into its locked position while pressing
down the bottle holder lock lever [D].
2) When the bottle holder assembly reaches its locked position, push up
the bottle holder lock lever so that the knob screw holes are aligned.
3) Secure the bottle holder lock lever with the knob screw.
NOTE: Do not swing the bottle holder assembly all the way into its
original position in the machine without sliding and locking it into
position exactly as described above. Otherwise, the assembly
will be damaged.
22. Install a toner bottle by following the instructions placed on the reverse
side of the front cover.
23. Swing in the toner bottle holder to its original position and close the front
cover.
24. Plug in the copier and turn on the main switch.
32
13 October 1997
[A]
[C]
[D]
A212I508.wmf
