Ricoh SWALLOW 2 Service Manual page 30

13 October 1997
[E]
[A]
[B]
NOTE: 1) Never lift the machine by holding the LCT, or the LCT will break.
2) Keep the shipping retainers after installation. They will be reused if
the machine is moved to another location.
3) Proper reinstallation of the shipping retainers is required in order
to avoid any transport damage. It is most important to put back the
scanner lock pin when transporting this copier. If not, skewed
image may result.

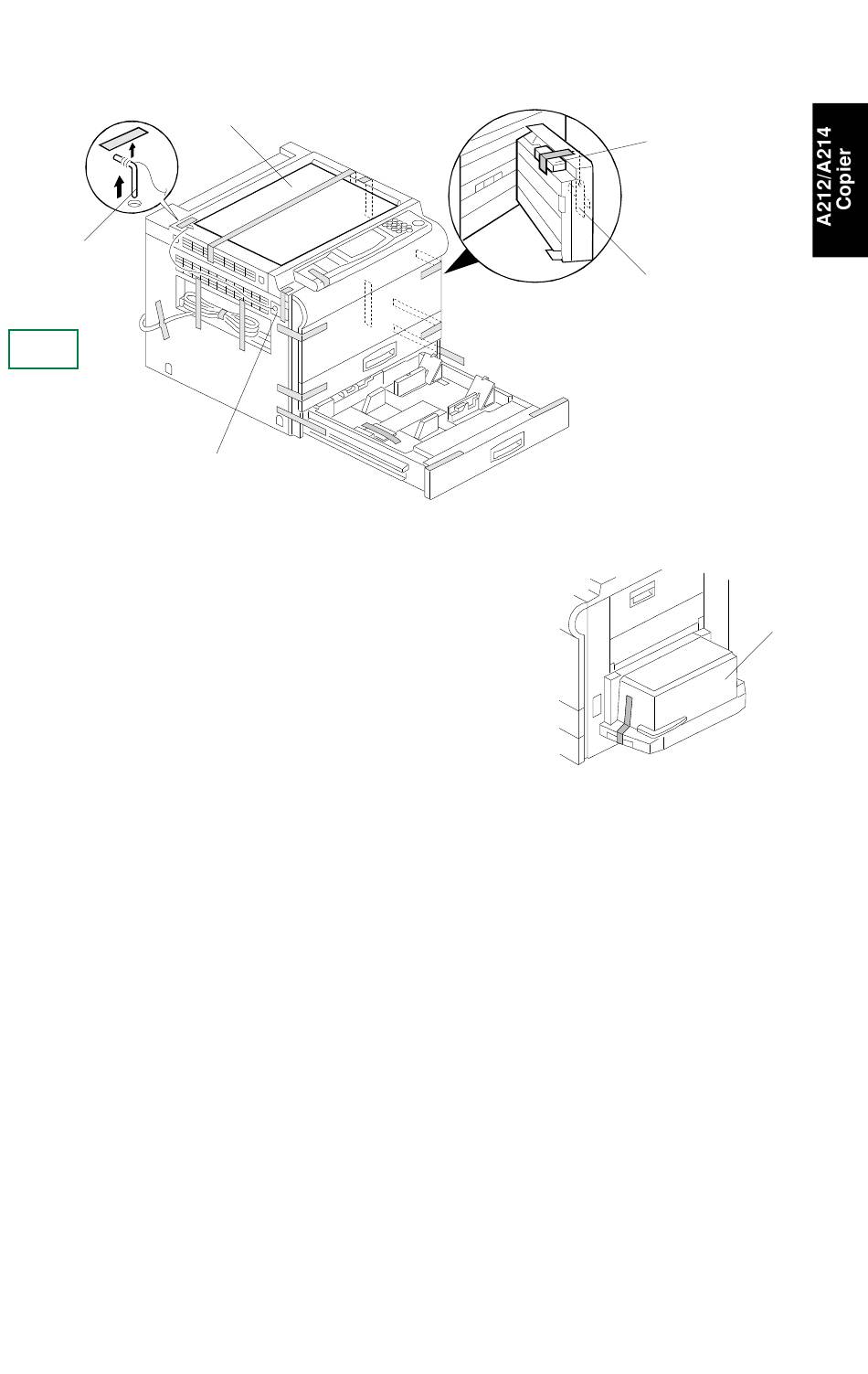

1. Remove the scanner lock pin [A] and red tag [B], as shown.
2. Remove the cushion [C] and red tag [D], as shown.
3. Remove the strips of tape and the sheet of paper [E]. Also, for A214
copier remove the strip of tape on the LCT [F].
4. Pull out the paper tray [G], and remove the strips of tape and the bottom
plate stoppers [H]. Then install the paper tray in the copier (1 tray for
duplex machines and 2 trays for non-duplex machines).
A212I514.wmf
27
INSTALLATION
[C]
[D]
- A214 copier -
[F]
A212I501.wmf
