Operation - STA-RITE Signature 2000 Owner's Manual

Priming Plug
Tee
Water Supply
Foot Valve
1210 0894

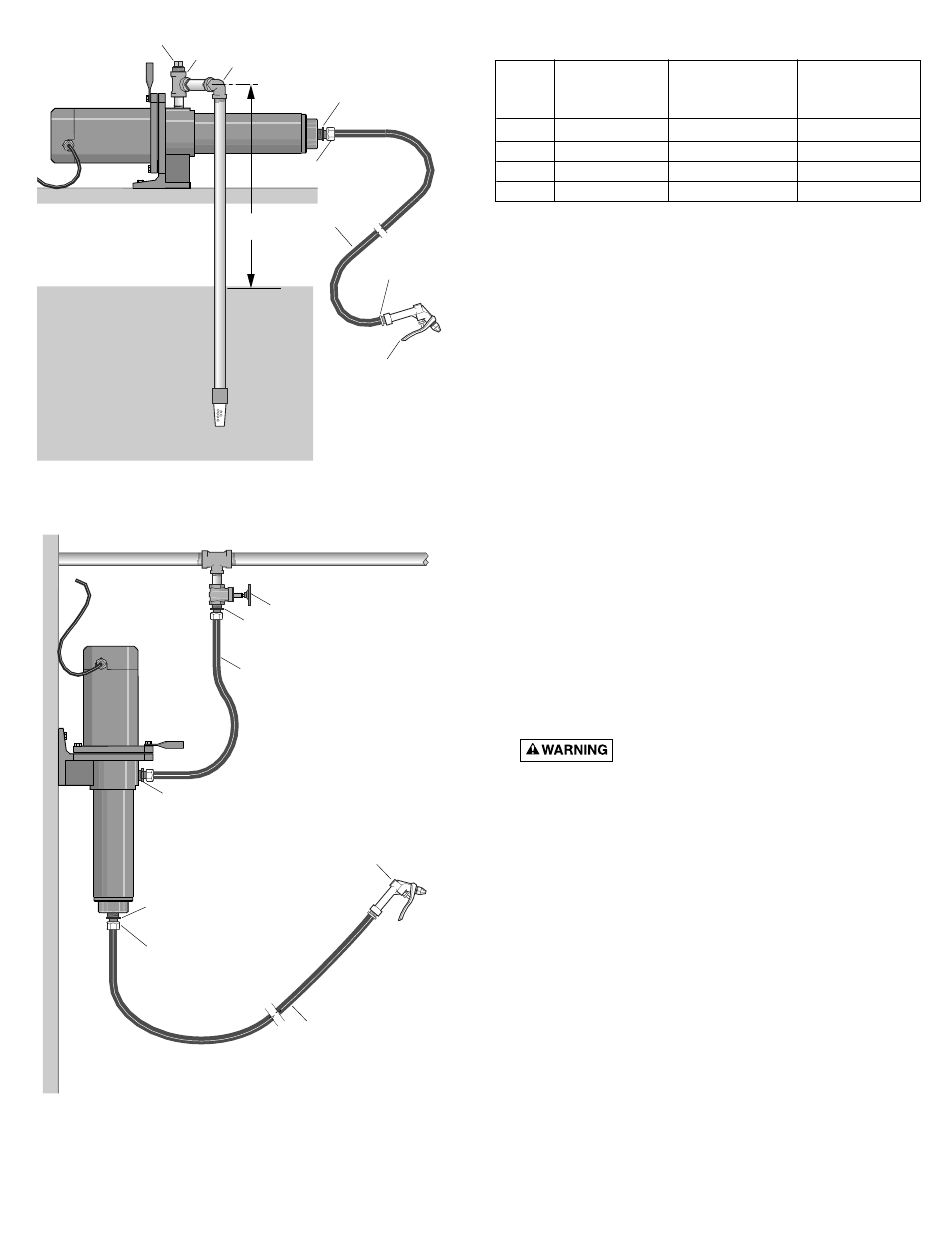

Figure 3 – Cistern or shallow well installation.
To Power
Male Pipe to Male Hose Adapter
Male Pipe to Male Hose Adapter
(Discharge)
Female Hose Connection
1209 0894
Figure 4 – Wall mounted to pressurized
service line.
To reduce friction losses to a minimum, inlet (suction)
line should be short and have as few elbows as
possible.
90 Elbow
Male Pipe to Male Hose Adapter
Female Hose Connection
High Pressure
15 Feet
Hose
Maximum
Male Hose
Connection
Gun Nozzle
Weeping Type ONLY
Service Line
Gate Valve or Hose Bibb
Male Pipe to Male Hose Adapter
High Pressure Hose with two
Female Connections
(Suction)
Gun Nozzle
Weeping Type ONLY
High Pressure Hose
Size the inlet according to the chart below:
Ave. Threaded
GPM Inlet Size
7 3/4" NPT
10 3/4" NPT
20 1" NPT
30 1-1/4" NPT
An inlet strainer will prevent suspended debris from
clogging pump.
The internal running surfaces of the pump and seals
require water lubrication for good, consistent operation.
Allowing pump to run dry will severely damage
pump and seals.
Install a pressure gauge in pump inlet line. Keep at
least two pounds per square inch pressure (2 PSI) in
inlet line whenever pump is operating. If this is not
possible, consult customer service representative.
LUBRICATION
It is not necessary to lubricate pump or motor. The
motor is equipped with sealed ball bearings, lubricated
for the life of the bearing. The mechanical shaft seal in
the pump is self-lubricating and requires no adjust-
ment. Disassemble pump to replace seal (See "Main-
tenance", Pages 7 to 9).

OPERATION

NOTICE: Observe the following precautions when
operating the pump:
1. Keep the motor dry! Do not direct stream from
pump discharge onto the motor!
2. Hazardous pressure. Do not run the
pump with discharge shutoff, as hose may burst or
pump may be damaged due to high temperatures.
3. Do not use a standard trigger gun with this pump.
Use only trigger guns with an automatic weeping
feature. These are available as accessories and are
provided with three nozzles. The smallest nozzle
restricts the flow, allowing use of a smaller water
source. The two larger nozzles are used if the water
source will supply the pump's full capacity.
4. Do not run pump dry; to do so may damage the
seal.
5. To avoid internal damage to pump, Do not operate
with water temperature above 175 degrees F.
