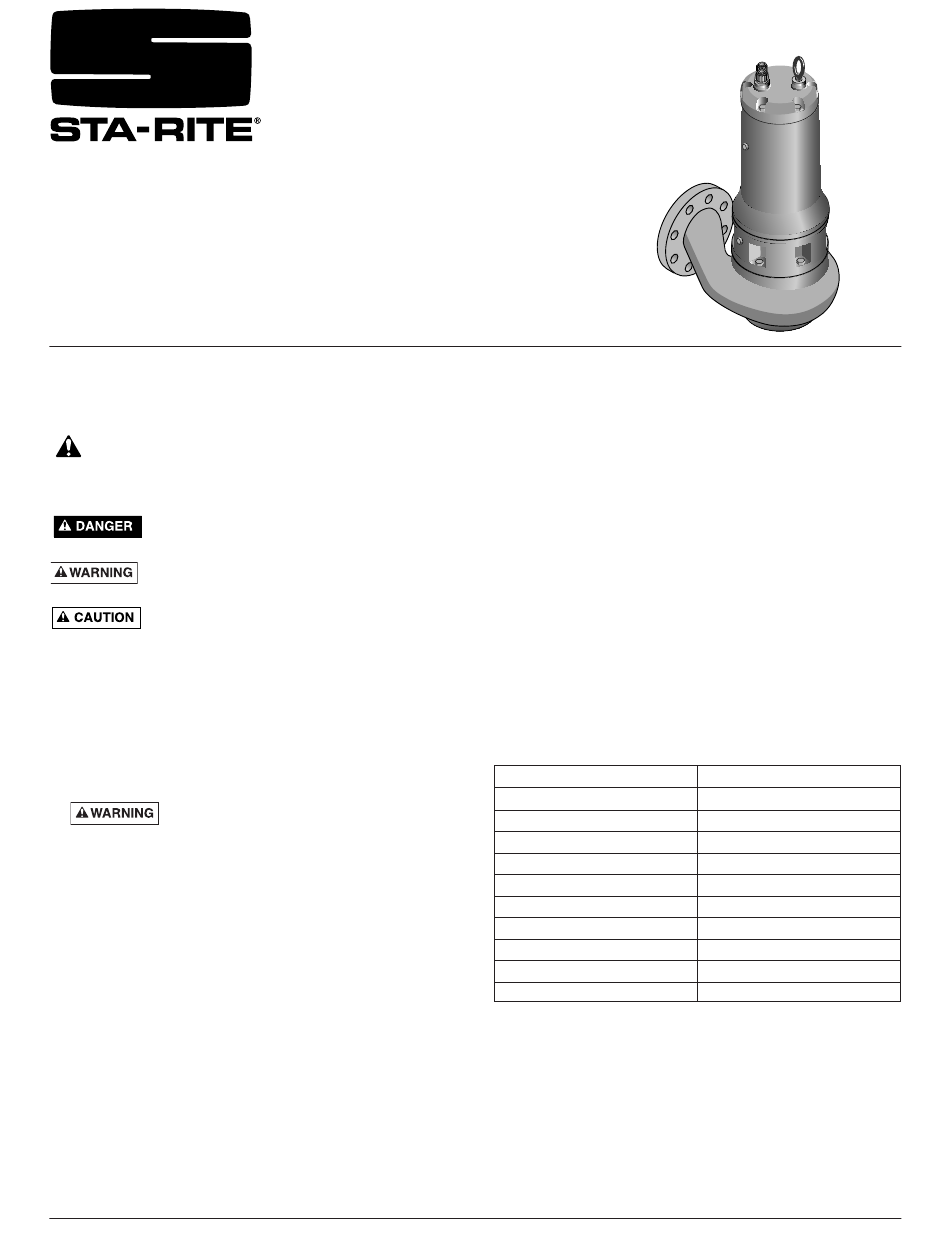

293 Wright Street, Delavan, WI 53115
Submersible Waste
Handler Pumps
INSTALLATION, OPERATION, & PARTS MANUAL
SAFETY INFORMATION
Carefully read and follow all safety instructions in this
manual or on pump.
This is the safety alert symbol. When you see this
symbol on your pump or in this manual, look for one of the
following signal words and be alert to the potential for
personal injury!
warns about hazards that will cause serious
personal injury, death or major property damage if ignored.
warns about hazards that can cause serious
personal injury, death or major property damage if ignored.
warns bout hazards that will or can cause
minor personal injury or property damage if ignored.
The word NOTICE indicates special instructions which are
important but not related to hazards.
1. Read these rules and instructions carefully. Failure to
follow them could cause serious bodily injury and/or
property damage.
2. Check your local codes before installing. You must com-
ply with their rules.
3. Vent sewage or septic tank according to local codes.
4.
Hazardous voltage. Disconnect electri-
cal power from pump when working on or handling
pump for any reason. Do not use automatic reset
controls with this pump.
5. Always keep pump properly serviced and maintained.
6. Use pump for designed task – that is, pumping domestic
sewage and waste water containing solids. Do not pump
metal particles, rocks, or other hard objects.
7. Do not pump corrosive or flammable liquids with this
pump.
DESCRIPTION
These submersible wastewater pumps are designed for
sewage, trash, effluent and wastewater removal or transfer,
sump drainage, dewatering, flood control and for circulation.
Internal circuitry detects seal leakage and overheating of
windings. Available options include lift-out system compo-
nents, control panels, switches and alarms.
NOTICE: This unit is not designed for applications involving
salt water or brine! Use with salt water or brine will void
warranty.
©2008
SW40/SWH40/SW60 Series
SPECIFICATIONS
Power Supply Required: . . . . . . . . . . . . . . .230/208-230/460
(See the "Motor" Specifications Chart)
Motor Duty: . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Intermittent
Maximum Liquid Temperature: . . . .1 Phase – 104° F (40°C)
Discharge Adapter: . . . . . . . . . . . . . . . . . . . . . . . . . . .4" or 6"
Power Cable: . . . . . . . . . . . . . . . . . . . . . . . .Type SO or STO
Volute, Impeller, Pump Body: . . . . . . . . . .Class 30 Cast Iron
Wear Ring and Impeller Bushing: . . . . . . . . . . . . . . . .Bronze
O-Rings and Elastomer part of Shaft Seals: . . . . . . .Buna-N
Shaft Seal Faces: . . . . . . . . . . . . .Carbon and Ceramic with
Fasteners in contact with liquid
being pumped: . . . . . . . . . . . . . . . . . . . . . . . .Stainless Steel
MODEL NUMBER CROSS
REFERENCE CHART
New Model Number
SW40300225M
SW40300325M
SW40500225M
SW40500325M
SWH40750325M
SWH401000325M
SWH401200325M
SW60750325M
SW601000325M
SW601200325M
3 Phase – 140° F (60°C)
Stainless Steel Trim
Original Model Number
40SW1-4013
40SW3-4013
40SW1-4011
40SW3-4011
40SWHH3-4513
40SWHH3-4512
40SWHH3-4511
60SW3-6013
60SW3-6012
60SW3-6011
S501 (4/24/08)
Advertisement
Table of Contents
Related Manuals for STA-RITE SW Series
Summary of Contents for STA-RITE SW Series
- Page 1 SW40/SWH40/SW60 Series 293 Wright Street, Delavan, WI 53115 Submersible Waste Handler Pumps INSTALLATION, OPERATION, & PARTS MANUAL SAFETY INFORMATION SPECIFICATIONS Carefully read and follow all safety instructions in this Power Supply Required: ....230/208-230/460 manual or on pump.
-
Page 2: Motor Specifications
Figure 2: SW40 Single Phase with Thermal overload and leak detection probe. Use a three-pole contactor to prevent start relay chatter at shutdown. Connect as shown with dotted line when not using 3-pole contactor. Single phase units that are not installed with Sta-Rite control panels require a capacitor/overload package. Purchase the package through the Sta-Rite catalog. -
Page 3: Installation
INSTALLATION Table II: Full Load Motor Current in Amps Pump Mount Three Phase Single Phase Model No.* 208V 230V 460V 230V Install the pump as a free standing unit or with a guide rail lift-out system. See Page 6 for lift-out system details. SW40500225M 19.4 17.5... - Page 4 6. Using two screwdrivers, remove the outer seal spring 12. With the pump on its side, remove the six bolts holding and seal face from the shaft (Figure 5). the seal plate to the motor housing. Separate the motor housing from the seal plate by about 1" (tap with lead 7.
- Page 5 7. Lower the motor housing to 1-2" above the seal plate; 14. Install the free-standing legs (if used) on the volute; connect the leak detector probe lead (Figure 12). stand the volute on it’s feet. 15. Raise the pump with the hoist and lower the pump onto Risk of hand or finger mutilation.
-
Page 6: Troubleshooting
Guide Rail Lift-out System TROUBLESHOOTING See Figure 18 for installation dimensions. Bolt the upper rail To avoid unnecessarily removing the pump from the sump, bracket to the flange on the sump cover. Set the discharge disconnect the leak detection probe wire from the pump. If base adapter in place and cut the guide rails to fit from 2"... - Page 7 3/8-16 UNC X 1-1/4" (2) Required Intermediate Rail Bracket (Optional) Upper Rail Bracket Guide Rail Flange (User Intermediate Supplied) Rail Bracket (Optional) If span is more than 12', C L Guide Rail use intermediate rail bracket for support. 3/4" Dia. (4) Mounting bolts 5/8–11 UNC x 2 3/4"...
- Page 8 2004 0895...
- Page 9 Repair Parts List SW40/SWH40/SW60 Submersible Waste Handler Pumps SW40300225M SW40300325M SWH40750325M SW60750325M SW40500225M SWH401000325M SW601000325M Part Description Qty. SW40500325M SWH401200325M SW601200325M Eye Bolt W25918 W25918 W25918 3/8-16X1-1/4” Hex Head Cap Screw SS S23568 S23568 S23568 3/8” Lockwasher, SS S23036 S23036 S23036 Terminal Cover Assembly†...
-
Page 10: Limited Warranty
LIMITED WARRANTY STA-RITE warrants to the original consumer purchaser (“Purchaser” or “You”) of the products listed below, that they will be free from defects in material and workmanship for the Warranty Period shown below. Product Warranty Period Water Systems Products... -
Page 11: Spécifications
SW40/SWH40/SW60 Sèries 293 Wright Street, Delavan, WI 53115 Pompes submersibles de traitement des eaux usées NOTICE D’INSTALLATION, DE FONCTIONNEMENT DE DES PIÈCES SÉCURITÉ NOTA : Cette pompe n’est pas conçue pour pomper de l’eau salée ni de la saumure! La garantie sera annulée si Lire et suivre attentivement toutes les consignes de sécurité... -
Page 12: Spécifications Du Moteur
Un ensemble condensateur/protection contre les surcharges doit être utilisé avec les moteurs monophasés qui ne sont pas installés avec des panneaux de commande Sta-rite. On pourra acheter cet ensemble en se reportant au catalogue Sta-rite. - Page 13 INSTALLATION Tableau II : Courant de forte intensité en ampères du moteur Montage de la pompe Triphasé Monophasé N° de Installer la pompe en tant qu'unité autoportante ou bien l'installer modèle* 208V 230V 460V 230V avec un système de relevage à rails-guides. Se reporter à la page 5 pour plus de détails sur le système de relevage.
- Page 14 À l'aide de deux tournevis, déposer le ressort du joint extérieur 12. La pompe étant couchée sur son côté, déposer les six vis de et la surface d'étanchéité de l'arbre (Figure 5). fixation de la plaque d'étanchéité sur le carter du moteur. Séparer le carter du moteur de la plaque d'étanchéité...
- Page 15 Abaisser le carter du moteur jusqu'à environ 1 à 2 pouces au- 14. Reposer les pattes autoportantes (le cas échéant) sur la volute; dessus de la plaque d'étanchéité; brancher le fil de la sonde de mettre la volute sur ses pattes. détection de fuite (Figure 12).
- Page 16 Système de relvage à rails-guides DIAGNOSTIC Se reporter à la Figure 18 pour les dimensions de l'installation. Pour éviter de démonter inutilement la pompe de la fosse septique, Boulonner le support du rail supérieur sur la bride du couvercle de débrancher le fil de la sonde de détection de fuite de la pompe.
- Page 17 3/8-16 UNC x 1 1/4 po 3/8-16 UNC X 1-1/4" (2) requis (2) Required Intermediate Support de rail Rail Bracket intermédiaire (Optional) (en option) Upper Rail Support de rail supérieur Bracket Guide Rail-guide Rail Bride Flange (fournie (User Intermediate Support de rail Supplied) Rail Bracket l’utilisateur)
- Page 18 2004 0895...
- Page 19 Liste des pièces de rechange Pompes submersibles de traitement des eaux usées SW40/SWH40/SW60 SW40300225M SW40300325M SWH40750325M SW60750325M N° de SW40500225M SWH401000325M SW601000325M réf. Désignation des pièces Qté. SW40500325M SWH401200325M SW601200325M Boulon à oeil W25918 W25918 W25918 Vis à tête six pans en acier inoxydable 3/8-16 x 1 1/4 po S23568 S23568 S23568...
-
Page 20: Garantie Limitée
Le seul recours de l’Acheteur et la seule responsabilité de STA-RITE consistent à réparer ou à remplacer (au choix de STA-RITE) les produits qui se révéleraient défectueux. L’Acheteur s’engage à payer tous les frais de main-d’œvre et d’expédition du produit couvert par sa garantie et de s’adresser au concessionnaire-installateur ayant procédé...
